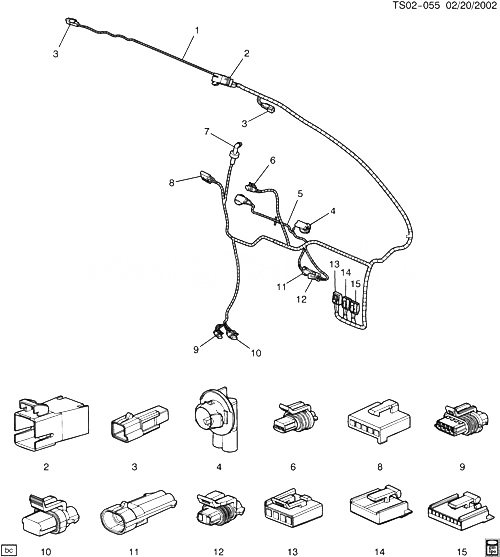

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25928164 |
HARNESS, L/GATE WRG (INCLS 2, 3, 6-10, 12-15) |
ST155 (06) |
2005-2009 |
01 |
| 001 |
25928164 |
HARNESS, L/GATE WRG (INCLS 2, 3, 6-10, 12-15) (2.480) |
ST155 (06) |
2005-2009 |
01 |
| 004 |
88986416 |
SOCKET, RR LIC PLT LP (PART OF 5) (GRAY) (2-WAY FEMALE) (W/LEADS) (2.596) (ACDelco #LS44)
| ST1 |
2005-2009 |
02 |
|
| 005 |
15271206 |
HARNESS, RR LIC PLT LP WRG (INCLS 4, 11)
| ST1 |
2005-2009 |
01 |
|
| 007 |
88987513 |
HOSE, R/WDO WA PUMP (PART OF 1) (LIFTGATE) (16.065)
| ST155 |
2002-2009 |
01 |
|
| 011 |
15305888 |
CONNECTOR, INLINE-TO L/GATE HARN (PART OF 5) (BLACK) (6-WAY FEMALE W/LEADS) (13.090) (ACDelco #PT1032) |
ST1 |
2005-2009 |
01 |
| 013 |
12125636 |
CONNECTOR, MDL-DR LK CONT (PART OF 1) (BLACK) (4-WAY FEMALE) (W/LEADS) (12.243) (ACDelco #PT548) |
ST1 |
2002-2009 |
01 |
| 014 |
12101874 |
CONNECTOR, MDL-DR LK CONT (PART OF 1) (BLACK) (8-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT265) |
ST155 (06) |
2006-2009 |
01 |
| 015 |
12102628 |
CONNECTOR, MDL-DR LK CONT (PART OF 1) (NATURAL) (9-WAY FEMALE) (W/LEADS) (4.329) (ACDelco #PT315) |
ST155 (06) |
2006-2009 |
01 |
