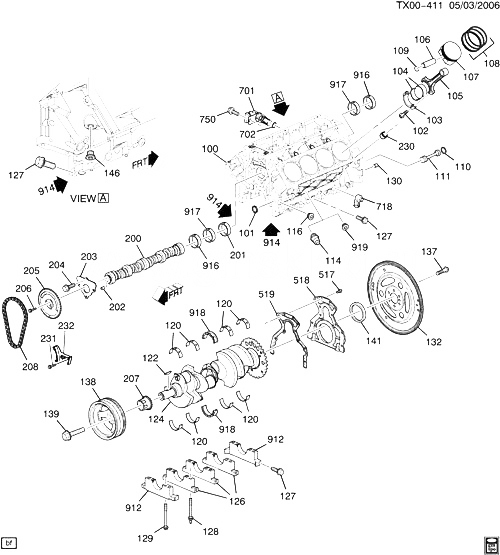

(TX00-411) - 2007-2009 ST ДВИГАТЕЛЬ В СБОРЕ-5.3L V8 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ И СОПРЯЖЕННЫЕ ДЕТАЛИ (LH6/5.3M) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 БЛОК, ДВИГАТЕЛЯ 2007-2009
101 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2007-2009 01
102 11570662 БОЛТ, CONN ROD (PART OF 105) (MJ9X44, 13 THD, 15.5 OD, 12.9, PL) ST1 (LH6) 2008-2009 16
103 CAP, CONN ROD (PART OF 105) 2007-2009
104 12493712 ПОДШИПНИК, ШАТУНА (STD) ST1 (LH6) 2007-2009 08
105 12607475 ШАТУН, (INCLS 102, 103) ST1 (LH6) 2007-2009 08
106 PIN, PSTN (PART OF 107) 2007-2009
107 89017577 PISTON, (W/PIN) (INCLS 106, 109) (STD) ST1 (LH6) 2007-2009 08
107 89017578 PISTON, (W/PIN) (INCLS 106, 109) (0.5MM O.S.) ST1 (LH6) 2007-2009 08
108 12456338 RING KIT, PSTN (STD) ST1 (LH6) 2007-2009 08
108 12456339 RING KIT, PSTN (.5MM O.S.) ST1 (LH6) 2007-2009 08
109 12569638 RETAINER, PSTN PIN (PART OF 107) ST1 (LH6) 2007-2009 16
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2007-2009
111 12573460 PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) ST1 (LH6) 2007-2009 01
114 12586687 HEATER, ENG COOL (W/2-PIN AND SILVER COLORED) ST1 (LH6, K05) 2007-2009 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2007-2009 01
120 89017571 BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) ST1 (LH6) 2007-2009 04
122 12561513 KEY, CR/SHF BALR (4.8MMX37.5MM) ST1 (LH6) 2007-2009 01
124 12588614 КОЛЕНЧАТЫЙ ВАЛ, ST1 (LH6) 2007-2009 01
126 CAP, CR/SHF BRG 2007-2009
127 12556127 БОЛТ, CR/SHF BRG CAP (M8X1.25X24) ST1 (LH6) 2007-2009 10
128 12560273 STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) ST1 (LH6) 2007-2009 10
129 12560272 БОЛТ, CR/SHF BRG CAP (BOTTOM) (LONG) (M10X2X102.5, 24.5) ST1 (LH6) 2007-2009 10
130 01453658 PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) 2007-2009 02
132 12606620 PLATE, A/TRNS FLEX (AUTO TRANSMISSION) ST1 (LH6, M30) 2007-2009 01
137 11569956 БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER) ST1 (LH6) 2007-2009 06
138 12576652 BALANCER, CR/SHF ST1 (LH6) 2007-2009 01
139 12557840 БОЛТ, CR/SHF BALR (M16X2.0X103) ST1 (LH6) 2007-2009 01
141 89060436 SEAL KIT, CR/SHF RR OIL (PART OF 518) (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) ST1 (LH6) 2007-2009 01
146 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2007-2009 02
200 12593207 CAMSHAFT, ENG (INCLS 202) ST1 (LH6) 2007-2009 01
201 19167218 BEARING, CM/SHF (POSN #3) ST1 (LH6) 2008-2009 01
202 24575061 PIN, CM/SHF SPKT LOC (PART OF 200) (17MM LONG) ST1 (LH6, M30) 2007-2009 01
203 12589016 RETAINER, CM/SHF (USE WITH BOLT 11561455) ST1 (LH6) 2007-2009 01
204 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF RET) 2007-2009 04
205 12591689 SPROCKET, CM/SHF (W/1 ATCH BOLT) ST1 (LH6) 2007-2009 01
206 11561283 БОЛТ, HVY HX FLG HD, M16X1.5X63, GMW25 (8.8) STL, GMW3359 (CM/SHF SPKT) 2009-2009 03
207 12556582 SPROCKET, CR/SHF ST1 (LH6) 2007-2009 01
208 12586482 CHAIN, CM/SHF TMG ST1 (LH6) 2007-2009 01
230 12570326 PIN, CYL HD LOC ST1 (LH6) 2007-2009 04
231 11588364 БОЛТ, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 232) 2007-2009 02
232 12626407 TENSIONER KIT, TMG CHAIN (INCLS 231) (INCLS BOLT, RETAINER) ST1 (LH6) 2007-2009 01
517 11588723 БОЛТ, CR/SHF RR OIL SEAL HSG (PART OF 518) (8 X 1.25 X 25) (8.900) ST1 (LH6) 2007-2009 12
518 12615666 HOUSING, CR/SHF RR OIL SEAL (INCLS BOLT, HOUSING, SEAL, GASKET) (INCLS 141, 517, 519) ST1 (LH6) 2007-2009 01
519 12593587 ПРОКЛАДКА, CR/SHF RR OIL SEAL HSG (PART OF 518) ST1 (LH6) 2007-2009 01
701 12585546 ДАТЧИК, CR/SHF POSN (INCLS 702) (ACDelco #213-3520) ST1 (LH6) 2007-2009 01
702 SEAL, O-RING CR/SHF POSN (PART OF 701) 2007-2009
718 12570125 ДАТЧИК, ДЕТОНАЦИИ (ACDelco #213-1576) ST1 (LH6) 2007-2009 02
750 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN) 2007-2009 01
912 CAP, CR/SHF BRG 2007-2009
914 12346004 SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE (OIL PAN) 2007-2009 AR
916 19167383 BEARING, CM/SHF (POSN #1, 5) ST1 (LH6) 2008-2009 02
917 19167382 BEARING, CM/SHF (#2, 4) ST1 (LH6) 2008-2009 02
918 89017572 BEARING KIT, CR/SHF THR (STD) (#3) ST1 (LH6) 2007-2009 01
919 11609289 PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) 2007-2009 01
