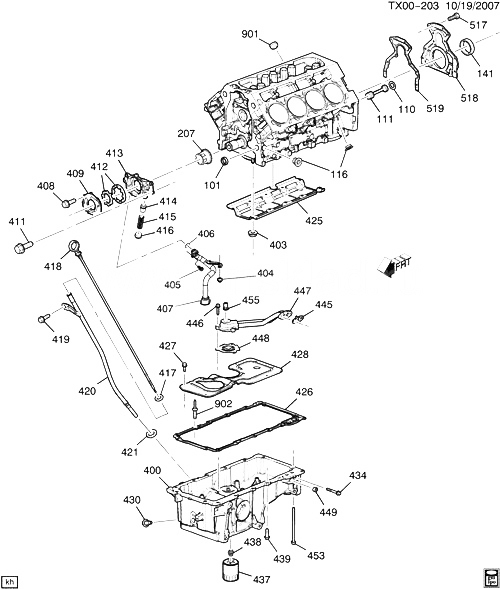

(TX00-203) - 2007-2009 ST ДВИГАТЕЛЬ В СБОРЕ-5.3L V8 ЧАСТЬ 4 МАСЛЯНЫЙ НАСОС, ПОДДОН И СОПРЯЖЕННЫЕ ДЕТАЛИ (LH6/5.3M) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
101 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2007-2009 01
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2007-2009
111 12573460 PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) ST1 (LH6) 2007-2009 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) 2007-2009 02
141 89060436 SEAL KIT, CR/SHF RR OIL (PART OF 518) (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) ST1 (LH6) 2007-2009 01
207 12556582 SPROCKET, CR/SHF ST1 (LH6) 2007-2009 01
400 12613437 PAN, OIL (USE W/PF48 OIL FILTER) (INCLS 426-428, 430, 434, 438, 439, 445-449, 453, 455, 901, 902) ST1 (LH6) 2007-2009 01
403 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (CR/SHF OIL DFL) 2007-2009 08
404 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (O/PMP SUC PIPE) 2007-2009 01
405 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (O/PMP SUC PIPE) 2007-2009 01
406 12584922 SEAL, O/PMP (O RING) (PART OF 407) (20.69MM I.D., 4.20MM THICKNESS) (TEFLON COATED) ST1 (LH6) 2007-2009 01
407 12565692 SCREEN, O/PMP (W/SUC PIPE) (INCLS 406) (INCLS PIPE, SCREEN, SEAL) ST1 (LH6) 2009-2009 01
408 11519133 БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 413) 2007-2009 07
409 COVER, O/PMP (PART OF 413) 2007-2009
411 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (O/PMP) 2007-2009 04
412 GEAR SET, O/PMP (PART OF 413) 2007-2009
413 12612289 НАСОС, МАСЛЯНЫЙ (INCLS 408, 409, 412, 414-416) ST1 (LH6) 2007-2009 01
414 VALVE, OIL PRESS RLF (PART OF 413) 2007-2009
415 ПРУЖИНА, OIL PRESS RLF VLV (PART OF 413) 2007-2009
416 PLUG, OIL PRESS RLF VLV BORE (PART OF 413) 2007-2009
417 24504091 SEAL, OIL LVL IND TUBE (O RING) (PART OF 418) (BLACK) (6.07MM ID, 1.78MM DIA) ST1 (LH6) 2007-2009 01
418 12575957 ИНДИКАТОР, УРОВНЯ МАСЛА (INCLS 417) ST1 (LH6) 2007-2009 01
419 11515765 БОЛТ, HFH, M10X1.5X25, 22.30 O.D., HDR PT, 10.9, 7112M (OIL LVL IND TUBE) 2007-2009 01
420 12567172 TUBE, OIL LVL IND (INCLS 421) ST1 (LH6) 2007-2009 01
421 24504091 SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) (BLACK) (6.07MM ID, 1.78MM DIA) ST1 (LH6) 2007-2009 01
425 12611129 DEFLECTOR, CR/SHF OIL ST1 (LH6) 2007-2009 01
425 12611129 DEFLECTOR, CR/SHF OIL ST1 (LH6, M30) 2009-2009 01
426 12558760 ПРОКЛАДКА, OIL PAN (PART OF 400) (CODE CNB WYA) ST1 (LH6) 2007-2009 01
427 11519133 БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (BOLT, OIL PAN BFL) (PART OF 400) 2007-2009 07
428 BAFFLE, OIL PAN (PART OF 400) 2007-2009
430 11562588 PLUG, OIL PAN DRN (PART OF 400) (W/ SEAL) (EXC MAGNET) ST1 (LH6) 2007-2009 01
434 92064340 БОЛТ, OIL PAN CVR (PART OF 400) ST1 (LH6, M30) 2007-2009 02
437 89017524 ФИЛЬТР, МАСЛЯНЫЙ (ACDelco #PF48) ST1 (LH6) 2007-2009 01
438 12600225 FITTING, OIL FLTR (PART OF 400) ST1 (LH6) 2007-2009 01
439 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 400) 2007-2009 13
445 12567654 ПРОКЛАДКА, OIL FLTR PIPE ADAP (SIDE) (PART OF 400) ST1 (LH6, M30) 2008-2009 01
446 92064340 БОЛТ, OIL PAN CVR (PART OF 400) ST1 (LH6, M30) 2007-2009 02
447 TUBE, OIL FLTR CTR (PART OF 400) 2007-2009
448 12567653 ПРОКЛАДКА, OIL FLTR PIPE ADAP (LOWER) (PART OF 400) ST1 (LH6, M30) 2008-2009 01
449 92061150 PLUG, OIL PAN HOLE (TRANSFER TUBE) (PART OF 400) (0.293) ST1 (LH6) 2007-2009 01
453 12554990 БОЛТ, OIL PAN (PART OF 400) (M6X1.0X136) ST1 (LH6) 2007-2009 02
455 12597920 VALVE, OIL PRESS RLF (PART OF 400) ST1 (LH6) 2007-2009 01
517 11588723 БОЛТ, CR/SHF RR OIL SEAL HSG (PART OF 518) (8 X 1.25 X 25) (8.900) ST1 (LH6) 2007-2009 12
518 12615666 HOUSING, CR/SHF RR OIL SEAL (INCLS BOLT, HOUSING, SEAL, GASKET) (INCLS 141, 517, 519) ST1 (LH6) 2007-2009 01
519 12593587 ПРОКЛАДКА, CR/SHF RR OIL SEAL HSG (PART OF 518) ST1 (LH6) 2007-2009 01
901 12557520 PLUG, OIL LVL IND TUBE HOLE (PART OF 400) (CUP-.390IN OD, .040IN THK, STEEL) ST1 (LH6, M30) 2007-2009 01
902 12558759 RIVET, OIL PAN GSKT (PART OF 400) ST1 (LH6) 2007-2009 02
