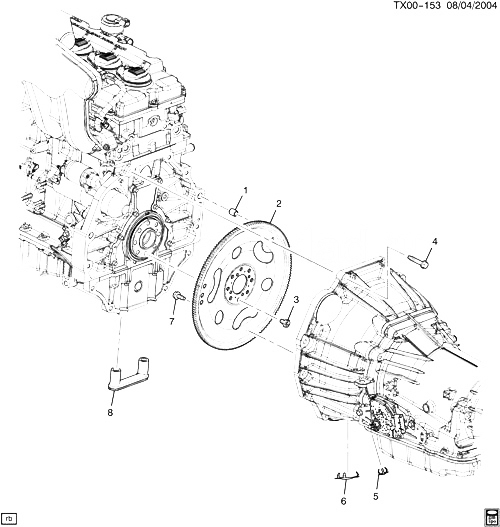

Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
001 |
12569598 |
PIN, TRANS LOC |
ST1 (LL8) |
2005-2009 |
02 |
002 |
12621694 |
PLATE, A/TRNS FLEX (NOTE FOR USE W/258 MM TORQUE CONVERTERS. USE T/W BOLT 11570716 QTY 08) |
ST1 (LL8) |
2009-2009 |
01 |
003 |
11570716 |
БОЛТ, A/TRNS FLEX PLT (M10X1X19.1, 15 THD) |
ST1 (LL8) |
2008-2009 |
08 |
004 |
11519894 |
BOLT-HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) |
|
2002-2009 |
11 |
005 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
ST1 (M30, M70) |
2006-2009 |
01 |
006 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| ST1 (M30) |
2005-2009 |
01 |
007 |
11589040 |
БОЛТ, TRANS T/CV
| ST1 (M30) |
2005-2009 |
03 |
008 |
24229746 |
PLUG, T/CV HSG ACC HOLE (PLUG HOLES REAR OF PAN TO BELL) |
ST1 (06) (LL8, M30) |
2003-2009 |
01 |
