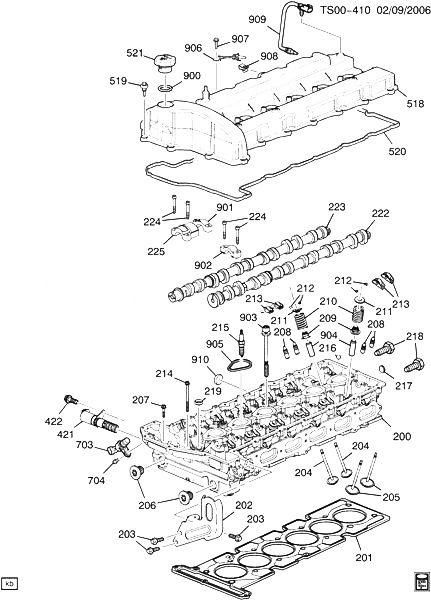

(TS00-410) - 2006-2009 ST ДВИГАТЕЛЬ В СБОРЕ-4.2L L6 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ И СВЯЗАННЫЕ ДЕТАЛИ (LL8/4.2S) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
200 19206640 HEAD, CYL (W/VLV) (NOTE INTAKE VLV PN 12623722 MUST BE USED FOR SERVICE) (FOR USE WITH 8MM CHAIN GUIDE BOLT.HARDENED SEATS VALVES.) (INCLS 216-219, 224, 225, 901, 902, 904, 910) ST1 (LL8) 2008-2009 01
201 ПРОКЛАДКА, CYL HD (*KIT2) 2006-2009
202 12572633 BRACKET, ENG LIFT FRT ST1 (LL8) 2006-2009 01
203 11588738 БОЛТ, ENG LIFT FRT BRKT (M10X1.5X30 15 SOCKET) (8.900) ST1 (LL8) 2006-2009 03
204 12601762 КЛАПАН, ВЫПУСКНОЙ (STD) ST1 (LL8) 2006-2009 12
205 12623722 КЛАПАН, ВПУСКНОЙ ST1 (LL8) 2009-2009 12
206 01647544 PLUG, CYL HD ACC HOLE (M24X1.5X12) (ROUND HEAD, INT HEX, W/SEAL, NYLON) (0.034) ST1 (LL8) 2006-2009 02
207 11519038 БОЛТ, CYL HD (BOLT-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359) (8.900) ST1 (LL8) 2006-2009 02
208 24100005 ADJUSTER, HYD VLV LASH (ACDelco #24100005) ST1 (LL8) 2006-2009 24
209 12596995 SEAL, VLV STEM OIL (*KIT2) ST1 (LL8) 2006-2009 24
210 12592506 ПРУЖИНА, VLV ST1 (LL8) 2006-2009 24
211 12575196 RETAINER, VLV SPR ST1 (LL8) 2006-2009 24
212 90354648 KEY, VLV STEM ST1 (LL8) 2006-2009 48
213 24100294 ARM, VLV RKR ST1 (LL8) 2006-2009 24
214 11519306 БОЛТ, CYL HD (BOLT-HFH, M6X1X88.3, 17 THD, 14.2 OD, 10.9, 4435M, MACH, 6194M, HDR-PT) ST1 (LL8) 2006-2009 01
215 12598004 СВЕЧА ЗАЖИГАНИЯ, (ACDelco #12598004) (IRIDIUM) ST1 (LL8) 2006-2009 06
216 12569484 PLUG, SECD AIR INJN PIPE HOLE (PART OF 200) (12.7MM) ST1 (LL8) 2006-2009 01
217 11562125 PLUG, SECD AIR INJN PIPE HOLE (PART OF 200) ST1 (LL8) 2008-2009 06
218 11609916 PLUG, CYL HD OIL GAL (REAR) (PART OF 200) (M14X1.5X21.5) ST1 (LL8) 2006-2009 02
219 24577307 PLUG, CYL HD OIL GAL (FRONT) (PART OF 200) ST1 (LL8) 2006-2009 01
222 12586533 CAMSHAFT, INT (MCHG) ST1 (LL8) 2006-2009 01
223 24577279 CAMSHAFT, EXH (MCHG) ST1 (LL8) 2006-2009 01
224 12570816 БОЛТ, CM/SHF BRG CAP (PART OF 200) ST1 (LL8) 2006-2009 29
225 CAP, CM/SHF BRG FRT (PART OF 200) 2006-2009
421 12615873 VALVE, CM/SHF POSN ACTR SOL ST1 (LL8) 2009-2009 01
422 11589234 БОЛТ, CM/SHF POSN ACTR (8.900) (HX HD W/FL WA, M10X1.5X88, 78 THD, 18 OD, 10.9, GM4277M) ST1 (LL8) 2006-2009 01
518 12612090 COVER, CM/SHF (ALUMINUN) (INCLS 519, 520, 905-908) (INCLS COVER, SEAL, BAFFLE, CAP, BOLT, SLEELVE, HARNESS, INSULATOR, NUT) ST1 (LL8) 2006-2009 01
519 12591285 INSULATOR, CM/SHF CVR BOLT (PART OF 518) (INCLS BOLT, GROMMET) ST1 (LL8) 2006-2009 21
520 SEAL, CM/SHF CVR (PART OF 518) (*KIT1, KIT2) 2006-2009
521 12573337 CAP, OIL FIL (SAE 5W30, NON-VENTED, SEAL) (INCLS 900) (ACDelco #FC208) ST1 (LL8) 2006-2009 01
703 12597253 ДАТЧИК, CM/SHF POSN (ACDelco #213-4223) ST1 (LL8) 2008-2009 01
704 11562426 БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (CM/SHF POSN SEN) 2006-2009 01
900 24100002 SEAL, OIL FIL CAP (O RING) (PART OF 521) (27.94MM I.D.) (SIZE #320) (1.745) ST1 (LL8) 2006-2009 01
901 CAP, CM/SHF BRG (PART OF 200) 2006-2009
902 CAP, CM/SHF BRG FRT (PART OF 200) 2006-2009
903 12568079 БОЛТ, CYL HD (HFH, M11X2X140.3, 45.3 THD, 24.2 OD, 10.9) (M11X2X145, 34 THD) (WITH CAPTURED WASHER) ST1 (LL8) 2007-2009 14
904 GUIDE, VLV (PART OF 200) 2006-2009
905 SEAL, CM/SHF CVR SPLG ACC TUBE (PART OF 518) (*KIT1, KIT2) 2006-2009
906 12601829 HARNESS, ELEK ICM WRG (PART OF 518) (GROUND STRAP) ST1 (LL8) 2006-2009 01
907 11561026 БОЛТ, ELEK ICM WRG HARN CLIP (HFH, M6X1X25, 14 THD, 14.2 OD, 8.8, GMW3200, M-PT) (PART OF 518) (8.900) ST1 (LL8) 2006-2009 01
908 11504978 U-NUT M6X1 PNLS 13.5 DEEP ZOR (PART OF 518) 2006-2009 02
909 12609558 ДАТЧИК, ENG COOL TEMP (ACDelco #213-4125) ST1 (LL8) 2006-2009 01
909 12609558 ДАТЧИК, ENG COOL TEMP (1.150) (ACDelco #213-4125) ST1 (LL8) 2006-2009 01
910 11562125 PLUG, CYL HD WAT JKT HOLE (PART OF 200) (3.675) ST1 (LL8) 2006-2009 01
K02 89017855 GASKET KIT, CYL HD (INCLS 201, 209, 520, 905) ST1 (LL8) 2006-2009 01
