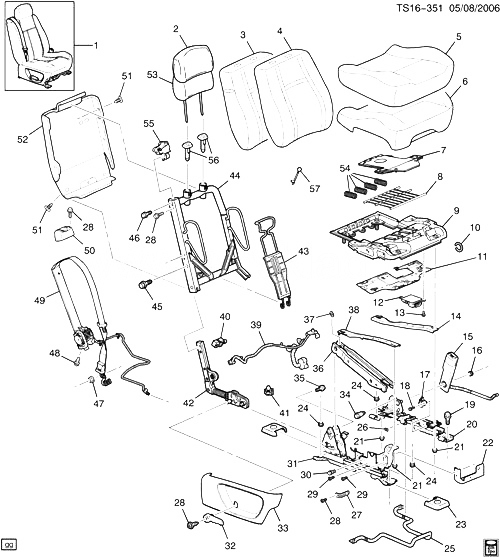

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15810774 |
SEAT, PASS (GRAY) (SEAT INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 25803167) |
T1 (AK5, AR9, AX4, X88, 28H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 001 |
15810775 |
SEAT, PASS (PEWTER) (SEAT INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 25803168) |
T1 (AK5, AR9, AX4, X88, 48H) (EXC V40) (1ST DES) |
2007-2007 |
01 |
| 001 |
15810776 |
SEAT, PASS (CASHMERE) (SEAT INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 25803169) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 001 |
15810790 |
SEAT, PASS (CASHMERE) |
T1 (AK5, AR9, AX4, X88, YC5, 272) (EXPORT) |
2007-2007 |
01 |
| 001 |
15810791 |
SEAT, PASS (EBONY) |
T1 (AK5, AR9, AX4, X88, YC5, 482) (EXPORT) |
2007-2009 |
01 |
| 001 |
15810792 |
SEAT, PASS (GRAY) |
T1 (AK5, AR9, AX4, X88, YC5, 282) (EXPORT) |
2007-2009 |
01 |
| 001 |
25803167 |
SEAT, PASS (GRAY) (SEAT INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 15810774) |
T1 (AK5, AR9, AX4, X88, 28H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 001 |
25803168 |
SEAT, PASS (PEWTER) (SEAT INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 15810775) |
T1 (AK5, AR9, AX4, X88, 48H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 001 |
25803169 |
SEAT, PASS (CASHMERE) (SEAT INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 15810776) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 001 |
25803187 |
SEAT, PASS (EBONY) |
ST1 (AK5, AR9, A50, X88, 482) (EXC B4U, V40) |
2007-2009 |
01 |
| 001 |
25803189 |
SEAT, PASS (CASHMERE) |
ST1 (AK5, AR9, A50, X88, 272) (EXC B4U, V40) |
2007-2007 |
01 |
| 001 |
25803190 |
SEAT, PASS (GRAY) |
ST1 (AK5, AR9, A50, X88, 282) (EXC B4U, V40) |
2007-2009 |
01 |
| 002 |
19167588 |
COVER, P/SEAT H/RST (EBONY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042178) |
ST1 (06) (48H) (2ND DES) |
2007-2007 |
01 |
| 002 |
19167589 |
COVER, P/SEAT H/RST (CASHMERE) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042179) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 002 |
19167590 |
COVER, P/SEAT H/RST (GRAY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042177) |
ST1 (28H) (2ND DES) |
2007-2007 |
01 |
| 002 |
89042177 |
COVER, P/SEAT H/RST (GRAY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167590) |
T1 (AK5, AR9, AX4, X88, 28H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 002 |
89042178 |
COVER, P/SEAT H/RST (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (1ST DES SEE 19167588) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) |
2007-2007 |
01 |
| 002 |
89042178 |
COVER, P/SEAT H/RST (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (1ST DES SEE 19167588) |
T1 (AK5, AR9, AX4, X88, 48H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 002 |
89042179 |
COVER, P/SEAT H/RST (CASHMERE) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167589) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 002 |
89042202 |
COVER, P/SEAT H/RST (GRAY) |
ST1 (282) |
2005-2009 |
01 |
| 002 |
89042203 |
COVER, P/SEAT H/RST (CASHMERE) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) |
2006-2007 |
01 |
| 002 |
89042203 |
COVER, P/SEAT H/RST (CASHMERE) |
ST1 (06) (AK5, AR9, X88, 272) (EXC AX4, KA1) |
2006-2007 |
01 |
| 002 |
89042423 |
COVER, P/SEAT H/RST (EBONY) |
T1 (482) |
2005-2009 |
01 |
| 003 |
19151240 |
PAD, P/SEAT BK CUSH |
ST1 (AK5, A50, B4U, X88) (EXC AX4) |
2006-2009 |
01 |
| 003 |
19151240 |
PAD, P/SEAT BK CUSH |
ST1 (AK5, AR9, B4U, X88) (EXC AX4) |
2006-2009 |
01 |
| 003 |
89042239 |
PAD, P/SEAT BK CUSH |
ST1 (EXC B4U) |
2005-2009 |
01 |
| 004 |
19150347 |
COVER, P/SEAT BK CUSH (EBONY) |
ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, B4U, KA1) |
2007-2007 |
01 |
| 004 |
19150347 |
COVER, P/SEAT BK CUSH (EBONY) |
ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4) |
2007-2007 |
01 |
| 004 |
19150347 |
COVER, P/SEAT BK CUSH (EBONY) |
T1 (AK5, AR9, AX4, X88, 482) (EXPORT) |
2007-2009 |
01 |
| 004 |
19151236 |
COVER, P/SEAT BK CUSH (SS) (EBONY) |
ST1 (AK5, AL0, AR9, B4U, KA1, X88, YC6, 482) (EXC AX4) |
2006-2007 |
01 |
| 004 |
19151285 |
COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167862) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) |
2007-2007 |
01 |
| 004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 282) (EXC AX4) |
2007-2007 |
01 |
| 004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) |
ST1 (AK5, AR9, KA1, X88, YC6, 282) (EXC AL0, AX4) |
2007-2007 |
01 |
| 004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) |
T1 (06) (AK5, AR9, YC5, YC6, 282) |
2007-2007 |
01 |
| 004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) |
T1 (AK5, AR9, AX4, KA1, X88, YC6, 282) (EXPORT) |
2007-2007 |
01 |
| 004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) |
T1 (AK5, AR9, AX4, X88, 282) (EXPORT) |
2007-2007 |
01 |
| 004 |
19151339 |
COVER, P/SEAT BK CUSH (GRAY) |
ST1 (06) (AK5, AL0, AR9, X88, 282) (EXC AX4) |
2007-2009 |
01 |
| 004 |
19151340 |
COVER, P/SEAT BK CUSH (CASHMERE) |
ST1 (06) (AK5, AL0, AR9, KA1, X88, 272) (EXC AX4) |
2007-2007 |
01 |
| 004 |
19151340 |
COVER, P/SEAT BK CUSH (CASHMERE) |
ST1 (06) (AK5, AR9, X88, Z88, Z89, 272) (EXC AX4, KA1) |
2007-2007 |
01 |
| 004 |
19151340 |
COVER, P/SEAT BK CUSH (CASHMERE) |
ST1 (AK5, AR9, KA1, X88, YC6, 272) (EXC AL0, AX4) |
2007-2007 |
01 |
| 004 |
19151340 |
COVER, P/SEAT BK CUSH (CASHMERE) |
T1 (06) (AK5, AR9, YC5, YC6, 272) |
2007-2007 |
01 |
| 004 |
19151340 |
COVER, P/SEAT BK CUSH (CASHMERE) |
T1 (AK5, AR9, AX4, X88, 272) (EXPORT) |
2007-2007 |
01 |
| 004 |
19151345 |
COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167869) |
T1 (AK5, AR9, AX4, X88, 48H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 004 |
19151346 |
COVER, P/SEAT BK CUSH (CASHMERE) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167865) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 004 |
19167862 |
COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 19151285) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (2ND DES) |
2007-2007 |
01 |
| 004 |
19167865 |
COVER, P/SEAT BK CUSH (CASHMERE) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 19151346) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 004 |
19167869 |
COVER, P/SEAT BK CUSH (EBONY) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 19151345) |
T1 (AK5, AR9, AX4, X88, 48H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
19151238 |
COVER, P/SEAT CUSH (SS) (EBONY) |
ST1 (AK5, AR9, B4U, KA1, X88, 482) (EXC AX4) |
2006-2009 |
01 |
| 005 |
19167867 |
COVER, P/SEAT CUSH (EBONY) (16.724) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042269) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (2ND DES) |
2007-2007 |
01 |
| 005 |
19167867 |
COVER, P/SEAT CUSH (EBONY) (16.724) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042432) |
T1 (AK5, AR9, AX4, X88, 48H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
19167868 |
COVER, P/SEAT CUSH (GRAY) (16.724) (SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042249) |
T1 (AK5, AR9, AX4, X88, 28H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
19167870 |
COVER, P/SEAT CUSH (CASHMERE) (16.724) (FOR SEAT W/INSERT W/HONEYCOMB PATTERN PRINT) (1ST DES SEE 89042270) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
89042249 |
COVER, P/SEAT CUSH (GRAY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167868) |
T1 (AK5, AR9, AX4, X88, 28H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
89042269 |
COVER, P/SEAT CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167867) |
ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) (1ST DES) |
2007-2007 |
01 |
| 005 |
89042269 |
COVER, P/SEAT CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167867) |
T1 (AK5, AR9, AX4, X88, 48H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
89042270 |
COVER, P/SEAT CUSH (CASHMERE) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167870) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
89042432 |
COVER, P/SEAT CUSH (EBONY) (FOR SEAT W/INSERT W/SWIRL PATTERN PRINT) (2ND DES SEE 19167867) |
T1 (06) (AK5, AR9, AX4, X88, 48H) (EXC V40) (1ST DES) (EXPORT) |
2007-2007 |
01 |
| 005 |
89042439 |
COVER, P/SEAT CUSH (GRAY) |
ST1 (06) (AK5, AR9, X88, Z88, 282) |
2007-2009 |
01 |
| 005 |
89042440 |
COVER, P/SEAT CUSH (CASHMERE)
| ST1 (AK5, AR9, KA1, X88, Z88, 272) (EXC AX4) |
2006-2007 |
01 |
|
| 005 |
89042440 |
COVER, P/SEAT CUSH (CASHMERE)
| T1 (AK5, AR9, AX4, X88, YC5, 272) (EXPORT) |
2006-2007 |
01 |
|
| 005 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (06) (AK5, AR9, KA1, X88, 482) (EXC B4U) |
2005-2007 |
01 |
| 005 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (AK5, AL0, AR9, KA1, X88, YC6, 482) (EXC AX4, B4U) |
2006-2007 |
01 |
| 005 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (AK5, AR9, KA1, X88, YC6, 482) (EXC AL0, AX4, B4U) |
2006-2007 |
01 |
| 005 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
T1 (AK5, AR9, AX4, X88, 482) (EXC B4U) (EXPORT) |
2006-2009 |
01 |
| 005 |
89042441 |
COVER, P/SEAT CUSH (EBONY) |
ST1 (06) (AK5, AR9, X88, Z88, 482) (EXC AX4, B4U, KA1) |
2007-2007 |
01 |
| 006 |
|
PAD, P/SEAT CUSH (PART OF 12) |
|
2006-2009 |
|
| 007 |
|
ДАТЧИК, INFL RST FRT PASS PRESENCE (PART OF 12) |
|
2006-2009 |
|
| 008 |
89043624 |
WIRE, P/SEAT CUSH PAD |
ST1 |
2005-2009 |
01 |
| 009 |
89043623 |
FRAME, P/SEAT CUSH |
ST1 |
2005-2009 |
01 |
| 010 |
04876466 |
RING, HOG (F/SEAT CUSH CVR HOG) |
|
2005-2009 |
AR |
| 011 |
89045016 |
BRACKET, INFL RST SEN (POWER PASS.) |
ST1 |
2005-2009 |
01 |
| 012 |
19168633 |
MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 6, 7) |
ST1 |
2005-2009 |
01 |
| 013 |
89042167 |
БОЛТ, P/SEAT (M4 X 12.5) |
ST1 (AR9) |
2005-2007 |
02 |
| 014 |
89042212 |
REINFORCEMENT, P/SEAT RSR (I/B) |
ST1 (AR9, A50) |
2005-2007 |
01 |
| 015 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (AR9, X88, Z88, Z89, 27I) |
2005-2007 |
01 |
| 015 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (AR9, 48H) |
2005-2009 |
01 |
| 015 |
19148785 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) |
ST1 (AR9, AK5, B4U, X88, 482) (EXC AX4) |
2007-2009 |
01 |
| 015 |
19148786 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (GRAY) |
ST1 (AR9, 28I) |
2005-2009 |
01 |
| 015 |
19148786 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (GRAY) |
ST1 (AR9, X88, Z88, 482) |
2007-2009 |
01 |
| 016 |
12531799 |
ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) |
ST1 |
2005-2009 |
01 |
| 017 |
19180158 |
SENSOR KIT, INFL RST FRT PASS POSN
| ST1 |
2005-2009 |
01 |
|
| 018 |
89046203 |
БОЛТ, INFL RST D/SEAT POSN SEN (8-32X5/8) |
ST1 |
2005-2007 |
02 |
| 020 |
89042234 |
ADJUSTER, P/SEAT INR (I/B) (2 WAY MANUAL) |
ST1 |
2005-2009 |
01 |
| 020 |
89042234 |
ADJUSTER, P/SEAT INR (I/B) (2 WAY MANUAL) |
T1 (AX4) (EXPORT) |
2006-2009 |
01 |
| 021 |
11609746 |
ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR)
|
2005-2009 |
04 |
|
| 022 |
89039522 |
BRACKET, P/SEAT WRG HARN |
ST1 |
2005-2009 |
01 |
| 023 |
15133275 |
COVER, F/SEAT ADJR FIN (EBONY) (4=PASS SIDE 4=DRVR SIDE) |
ST1 (27I, 48I) |
2005-2009 |
08 |
| 023 |
15133276 |
COVER, F/SEAT ADJR FIN (GRAY) (3=PASS SIDE 3=DRVR SIDE) |
ST1 (28I) |
2005-2009 |
08 |
| 023 |
15133277 |
COVER, F/SEAT ADJR FIN (CASHMERE) (3=PASS SIDE 3=DRVR SIDE) |
ST1 (47I) |
2005-2007 |
08 |
| 024 |
11519879 |
ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (P/SEAT)
|
2005-2009 |
01 |
|
| 025 |
89042233 |
BAR, P/SEAT INR OTR ADJR TIE |
ST1 |
2005-2009 |
01 |
| 026 |
11609746 |
ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR HDL)
|
2005-2009 |
02 |
|
| 027 |
89042219 |
BRACKET, P/SEAT (MANUAL) |
ST1 (X88, Z88, Z89) |
2005-2009 |
01 |
| 027 |
89042219 |
BRACKET, P/SEAT (MANUAL) |
T1 (AR9, AX4, X88) (EXPORT) |
2005-2009 |
01 |
| 027 |
89042263 |
BRACKET, P/SEAT (POWER) |
ST1 |
2005-2009 |
AR |
| 028 |
88949546 |
БОЛТ, P/SEAT (M4.2X16) (16.686) |
ST1 (AR9, X88, W49, Z88, Z89) |
2005-2007 |
04 |
| 029 |
88949560 |
БОЛТ, P/SEAT RECL (M5X0.8X10) |
ST1 |
2005-2007 |
03 |
| 030 |
88949559 |
БОЛТ, P/SEAT RECL (M10X1.50-6G) (SHOULDER BOLT W/BUSHING) |
ST1 |
2005-2007 |
01 |
| 031 |
89042236 |
ADJUSTER, P/SEAT OTR (O/B) (MANUAL) |
ST1 |
2005-2009 |
01 |
| 032 |
88949346 |
HANDLE, P/SEAT RECL (BLACK) |
ST1 (06) |
2005-2009 |
01 |
| 033 |
89042242 |
COVER, P/SEAT ADJR FIN (GRAY) (MANUAL)
| ST1 (AR9, A50, 28I) |
2005-2009 |
01 |
|
| 033 |
89042243 |
COVER, P/SEAT ADJR FIN (CASHMERE) (MANUAL) |
ST1 (AK5, AR9, A50, X88, 27H) (EXC AX4) |
2005-2007 |
01 |
| 033 |
89042243 |
COVER, P/SEAT ADJR FIN (CASHMERE) (MANUAL) |
T1 (AK5, AR9, AX4, X88, 27H) (EXC V40) (EXPORT) |
2005-2007 |
01 |
| 033 |
89042243 |
COVER, P/SEAT ADJR FIN (CASHMERE) (MANUAL) |
ST1 (AK5, AR9, A50, X88, 272) (EXC B4U, V40) |
2007-2007 |
01 |
| 033 |
89042244 |
COVER, P/SEAT ADJR FIN (EBONY) (MANUAL)
| ST1 (AR9, A50, 48I) |
2005-2009 |
01 |
|
| 034 |
88949561 |
БОЛТ, P/SEAT ADJR |
ST1 |
2005-2007 |
01 |
| 035 |
88949563 |
БОЛТ, P/SEAT RECL (M14 X 64.5) (SHOULDER BOLT, HEX HEAD) |
ST1 |
2005-2007 |
01 |
| 036 |
89039542 |
BRACKET, P/SEAT RECL (T/W 89039523 WASHER PLASTIC SNAP-ON) (W/SLOT) |
ST1 |
2005-2009 |
01 |
| 038 |
89042213 |
REINFORCEMENT, P/SEAT RSR (O/B) |
ST1 (AR9, A50) |
2005-2007 |
01 |
| 039 |
89026429 |
HARNESS, P/SEAT WRG |
ST1 (AK5, AR9, A50) (EXC AX4, B4U) |
2006-2009 |
01 |
| 039 |
89026429 |
HARNESS, P/SEAT WRG |
T1 (AK5, AR9, AX4) (EXC V40) (EXPORT) |
2006-2009 |
01 |
| 040 |
88949567 |
CLIP, P/SEAT WRG (6MM) (NYLON, PUSH-IN DELPHI) (HOLDS ONE WIRE) |
ST1 |
2005-2009 |
02 |
| 041 |
88949567 |
CLIP, P/SEAT WRG (6MM) (NYLON, PUSH-IN DELPHI) (HOLDS ONE WIRE) |
ST1 |
2005-2009 |
02 |
| 042 |
19150345 |
RECLINER, P/SEAT (POWER) |
ST1 (AR9) (EXC AX4) |
2006-2009 |
01 |
| 042 |
19151342 |
RECLINER, P/SEAT (MANUAL) |
ST1 (AR9, A50) |
2006-2009 |
01 |
| 042 |
89042237 |
RECLINER, P/SEAT (MANUAL) |
ST155 (06) (AK5, AR9, B4U, X88) (EXC AX4) |
2007-2007 |
01 |
| 042 |
89042261 |
RECLINER, P/SEAT (POWER) |
ST1 (AK5, AR9, B4U) |
2006-2007 |
01 |
| 043 |
89042268 |
SUPPORT, P/SEAT LUMBAR (2-WAY POWER) (INCLUDES MOTOR) |
ST1 (AR9, AK5) |
2005-2007 |
01 |
| 044 |
19151239 |
FRAME, P/SEAT BK CUSH |
ST1 (AK5, AR9, B4U, X88) (EXC AX4) |
2006-2009 |
01 |
| 044 |
89042235 |
FRAME, P/SEAT BK CUSH |
ST1 (EXC B4U) |
2005-2009 |
01 |
| 045 |
88983477 |
БОЛТ, P/SEAT RECL (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) |
ST1 (AR9, A50) |
2005-2007 |
04 |
| 046 |
88983477 |
БОЛТ, P/SEAT RECL (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) |
ST1 (AR9, A50) |
2005-2007 |
01 |
| 047 |
12531799 |
ГАЙКА, P/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) |
ST1 |
2005-2009 |
01 |
| 048 |
88983477 |
БОЛТ, P/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) |
ST1 |
2005-2009 |
01 |
| 049 |
19177470 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (EBONY) (EBONY WEBBING W/EBONY BEZEL) |
ST1 (AR9, 48I) |
2005-2009 |
01 |
| 049 |
19177471 |
РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (RETR SI) (W/ PRE-TENSR) (GRAY) |
ST1 (AR9, 28I) |
2005-2007 |
01 |
| 050 |
89042245 |
BEZEL, P/SEAT SHLDR BELT OPG (GRAY) |
ST1 (X88, Z88, Z89, 28I) |
2005-2009 |
01 |
| 050 |
89042247 |
BEZEL, P/SEAT SHLDR BELT OPG (EBONY) |
ST1 (48I) |
2005-2009 |
01 |
| 051 |
88948904 |
RETAINER, P/SEAT BK CUSH INR FIN PNL (16.716)
| ST1 |
2005-2009 |
06 |
|
| 052 |
88949340 |
PANEL, P/SEAT BK CUSH INR FIN |
ST155 (06) (AK5, AR9, B4U, X88) (EXC AX4) |
2007-2007 |
01 |
| 052 |
89045017 |
PANEL, P/SEAT BK CUSH INR FIN (HARDBACK) |
ST1 |
2005-2009 |
01 |
| 053 |
88979706 |
PAD, P/SEAT H/RST |
ST1 |
2005-2009 |
01 |
| 054 |
88948986 |
ПРУЖИНА, P/SEAT CUSH PAD SUPT |
ST1 |
2005-2009 |
04 |
| 055 |
88949336 |
BRACKET, P/SEAT SHLDR BELT RETR |
ST1 |
2005-2009 |
01 |
| 056 |
89042186 |
GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) |
ST1 (48I) |
2005-2009 |
01 |
| 056 |
89042187 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) |
ST1 (47I) |
2005-2007 |
01 |
| 056 |
89042187 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) |
T1 (AR9, AX4, X88, 27I) (EXPORT) |
2005-2007 |
01 |
| 056 |
89042187 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) |
ST1 (27I) |
2006-2007 |
01 |
| 056 |
89042188 |
GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) |
ST1 (48I) |
2005-2009 |
01 |
| 056 |
89042189 |
GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) |
ST1 (27I) |
2005-2009 |
01 |
| 056 |
89043635 |
GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) |
ST1 (28I) |
2005-2009 |
01 |
| 056 |
89043637 |
GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) |
ST1 (28I) (EXC AX4) |
2005-2009 |
01 |
| 057 |
89043628 |
CLIP, P/SEAT ADJR WRG HARN (13.090) |
ST1 |
2005-2009 |
01 |
