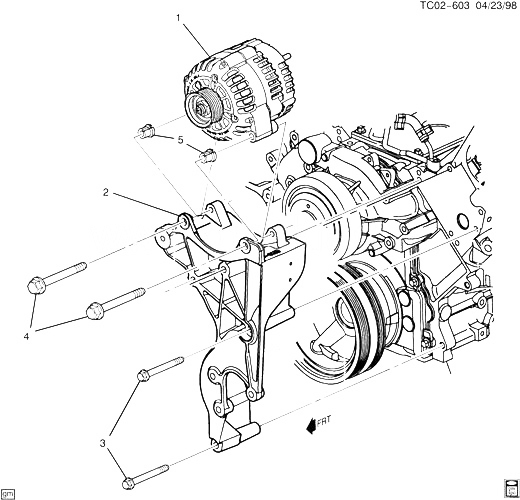

(TC02-603) - 2005-2009 ST КРЕПЛЕНИЕ ГЕНЕРАТОРА (LH6/5.3M, LS2/6.0H) CHEVROLET TRAILBLAZER (4WD) 2007
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15225927 | ГЕНЕРАТОР, (ACDelco #15225927) | ST1 (06) (LH6, KG3) | 2007-2009 | 01 |
| 002 | 12567922 | BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) | ST1 (LH6) | 2005-2009 | 01 |
| 003 | 11519214 | БОЛТ, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN P/S PUMP BRKT) | 2003-2009 | 02 | |
| 004 | 11518637 | БОЛТ, HFH M10X1.5X95, 26 THD, 22.3 OD, 9.8, 7114M, MACH, 7.5 MAT-PT (GEN) | 2003-2009 | 04 | |
| 005 | 12550090 | SPACER, GEN P/S PUMP BRKT (PART OF 2)| ST1 (LH6) |
2005-2009 |
02 |
|
