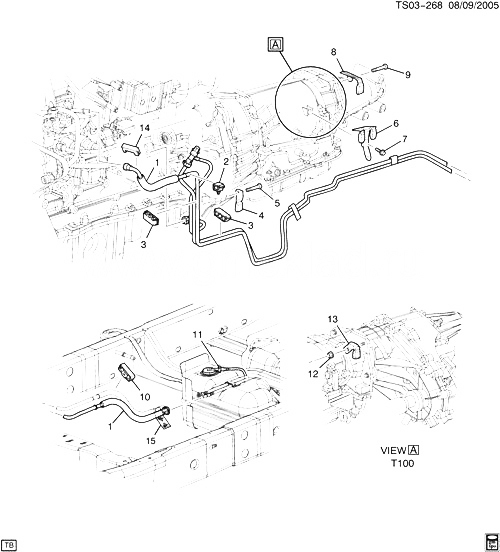

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25829656 |
PIPE, FUEL FEED EVAP EMIS RTN FRT (INCLS 2, 3, 10, 15)
| ST1 (LL8) |
2005-2009 |
01 |
|
| 002 |
15103725 |
CLIP, FUEL PIPE (PART OF 1) |
ST1 (LL8) |
2005-2009 |
01 |
| 003 |
15103726 |
CLIP, FUEL FEED PIPE (PART OF 1) |
ST1 (LL8) |
2005-2009 |
02 |
| 004 |
15016320 |
CLIP, FUEL FEED EVAP EMIS RTN FRT PIPE |
ST1 (LL8) |
2005-2009 |
01 |
| 005 |
11519894 |
BOLT-HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) |
|
2005-2009 |
11 |
| 006 |
15038808 |
CLIP, FUEL FEED EVAP EMIS RTN FRT PIPE |
ST155 (M30, M70) |
2008-2009 |
01 |
| 007 |
11516703 |
БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED EVAP EMIS RTN PIPE CLIP) (8.977) |
|
2005-2009 |
01 |
| 008 |
15175431 |
CLIP, FUEL FEED EVAP EMIS RTN FRT PIPE |
S155 (M30, M70) |
2008-2009 |
01 |
| 009 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRFER CASE ADAP) (T/W 12345493)
|
2005-2009 |
06 |
|
| 010 |
15168645 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 1) (RETAINER) |
ST1 (LL8) |
2007-2009 |
01 |
| 011 |
|
PIPE, FUEL FEED (СМ. ГРУППУ 03.000 КРЕПЛЕНИЕ ТОПЛИВНОГО БАКА И ТРУБКА ТОПЛИВОЗАЛИВНОЙ ГОРЛОВИНЫ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2009 |
|
| 012 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383)
|
2005-2009 |
05 |
|
| 014 |
21992748 |
RETAINER, FUEL FEED HOSE CONN (5/16 INCH QUICK CONNECT RETAINER CLIP)
| ST1 (LL8) |
2005-2009 |
01 |
|
| 015 |
|
LABEL, FUEL FEED PIPE WRNG (PART OF 1) |
|
2005-2009 |
|
