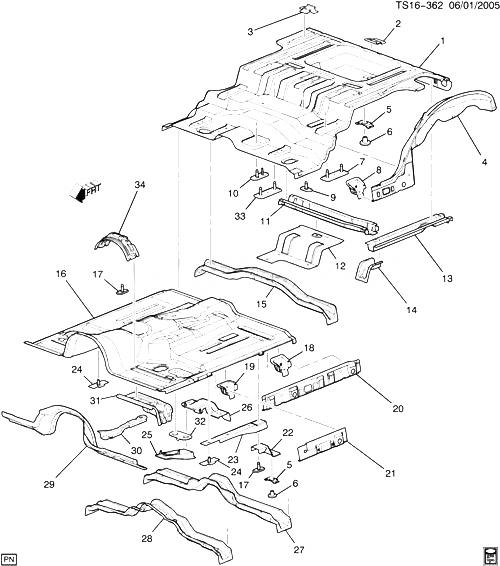

(TS16-362) - 2002-2009 ST155(06) ЛИСТОВОЙ МЕТАЛЛ/ДНИЩЕ CHEVROLET TRAILBLAZER (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15133343 PANEL, R/FLR ST155 (06) 2002-2009 01
002 15014334 BRACKET, R/CMPT FLR STOW COMPT DR (RR) ST155 (06) 2007-2008 01
003 15039550 BRACKET, R/CMPT FLR STOW COMPT DR (FRT) ST155 (06) 2007-2008 02
004 15084031 PANEL, RR W/H INR (W/O WELD NUTS) ST155 2002-2009 01
004 88980818 PANEL, RR W/H INR ST155 2007-2009 01
004 88980819 PANEL, RR W/H INR (W/WELD NUTS) ST155 2002-2009 01
005 RETAINER, BODY BOLT NUT 2002-2009
006 ГАЙКА, BODY MT 2002-2009
007 15160249 REINFORCEMENT, R/FLR PNL (CENTER) (W/LOCATING HOLES) (STUD SIZE 12X1.75X55) ST155 2007-2009 01
008 15037951 PLATE, ASST STEP RR BRKT ANC ST1 (06) 2005-2009 02
009 PLATE, R/SEAT BELT ANC (RETR SI) 2002-2009
010 PLATE, R/SEAT FRT ANC 2002-2009
011 88937003 SILL, U/B #4 CR ST1 (06) 2002-2009 01
012 PLATE, R/SEAT CTR BELT ANC 2005-2009
013 15006152 RAIL, U/B RR SI ST155 (06) 2002-2009 01
013 15006153 RAIL, U/B RR SI ST155 (06) 2002-2009 01
014 15006155 EXTENSION, U/B S/RL RR ST155 (06) 2002-2009 02
015 88937002 SILL, U/B #3 CR ST1 (06) 2002-2009 01
016 PANEL, F/FLR 2002-2009
017 PLATE, D/SEAT ANC 2002-2009
017 PLATE, P/SEAT ANC 2002-2009
018 15037950 PLATE, ASST STEP CTR BRKT ANC ST1 (06) 2005-2009 02
019 15037949 PLATE, ASST STEP FRT BRKT ANC ST1 (06) 2005-2009 02
020 25839599 EXTENSION, RKR INR PNL RR ST155 (06) 2007-2009 01
020 25839600 EXTENSION, RKR INR PNL RR ST155 (06) 2007-2009 01
021 25839597 EXTENSION, RKR INR PNL FRT ST1 (06) 2005-2009 01
021 25839598 EXTENSION, RKR INR PNL FRT ST1 (06) 2005-2009 01
022 15773363 REINFORCEMENT, FLR PNL RR (D/SEAT) (OUTER) ST1 (06) 2005-2009 01
022 15773364 REINFORCEMENT, FLR PNL RR (P/SEAT) (OUTER) ST1 (06) 2005-2009 01
023 15773362 REINFORCEMENT, FLR PNL (D/SEAT) (OUTER) ST1 (06) 2005-2009 01
023 15773362 REINFORCEMENT, FLR PNL (P/SEAT) (OUTER) ST1 (06) 2005-2009 01
024 PLATE, D/SEAT ANC 2002-2009
024 PLATE, P/SEAT ANC 2002-2009
025 15160238 PLATE, PARK BRK LVR ANC ST1 (06) 2005-2009 01
026 88937197 REINFORCEMENT, FLR PNL (FRONT, W/STUDS) ST1 (06) 2002-2009 01
027 88937001 SILL, U/B #2 CR ST1 (06) 2002-2009 01
028 89045593 SILL, U/B #1 CR ST1 (06) 2002-2009 01
029 15886423 EXTENSION, F/FLR PNL ST1 (06) 2002-2009 01
030 15160225 REINFORCEMENT, BODY MT BRKT ST1 (06) 2005-2009 01
030 15160226 REINFORCEMENT, BODY MT BRKT ST1 (06) 2005-2009 01
031 15160223 BRACKET, BODY FRT MT ST1 (06) 2005-2009 01
031 15886428 BRACKET, BODY FRT MT ST1 (06) 2005-2009 01
032 15761919 REINFORCEMENT, F/FLR PNL ST1 (06) 2002-2009 01
032 15761920 REINFORCEMENT, F/FLR PNL ST1 (06) 2002-2009 01
033 15764111 REINFORCEMENT, R/FLR PNL (OUTER) (STUD SIZE 12X1.75X45) ST155 2007-2009 02
034 15111756 SUPPORT, I/P CTR ST1 2002-2009 01
