| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

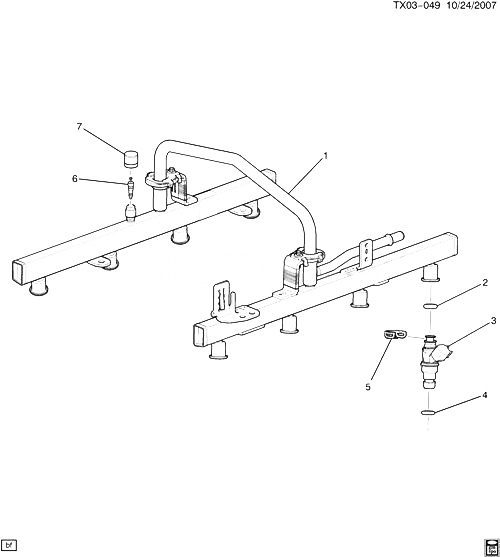

| 001 |
|
RAIL, M/PORT F/INJN FUEL (INCLS 6) |
|
2007-2009 |
|
| 001 |
12621668 |
RAIL, M/PORT F/INJN FUEL (HAS CRIMPED CROSSOVER TUBE RETAINER) (INCLS 6) |
ST1 (LH6) |
2007-2009 |
01 |
| 002 |
|
SEAL, F/INJR (O RING) (PART OF 3) (*KIT1) |
|
2007-2009 |
|
| 003 |
|
INJECTOR, SEQ M/PORT FUEL (INCLS 2, 4, 5) |
|
2007-2009 |
|
| 003 |
12580681 |
INJECTOR, SEQ M/PORT FUEL (INCLS INJECTOR, RETAINER, SEALS) (INCLS 2, 4, 5) (ACDelco #217-1621)
| ST1 (LH6) |
2007-2009 |
08 |
|
| 004 |
|
SEAL, F/INJR (O RING) (PART OF 3) (*KIT1) |
|
2007-2009 |
|
| 005 |
|
RETAINER KIT, F/INJR (PART OF 3) |
|
2007-2009 |
|
| 005 |
12570620 |
RETAINER KIT, F/INJR (PART OF 3) (W/ 8 RETAINERS) (ACDelco #12570620) |
ST1 (LH6) |
2007-2009 |
01 |
| 006 |
|
VALVE, FUEL PRESS SERV (PART OF 1) |
|
2007-2009 |
|
| 007 |
25532662 |
CAP, FUEL PRESS SERV VLV (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044)
| ST1 |
2007-2008 |
01 |
|
| K01 |
|
SEAL KIT, F/INJR (O RING) (INCLS 2, 4) |
|
2007-2009 |
|
| K01 |
12587147 |
SEAL KIT, F/INJR (O RING) (INCLS 2, 4) (W/ 8 UPPER 8 LOWER SEALS) (ACDelco #217-1588)
| ST1 (LH6) |
2007-2009 |
01 |
|
