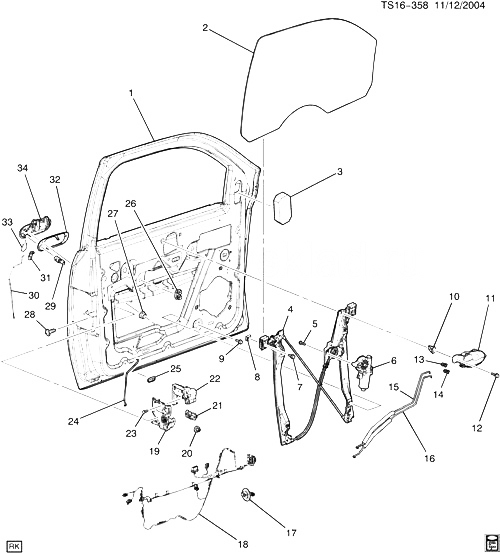

(TS16-358) - 2006-2009 ST1(06) АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ЧАСТЬ 2 (CHEVROLET X88, G.M.C. Z88, EXC DENALI Y91) CHEVROLET TRAILBLAZER (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88937088 ДВЕРЬ, ПЕРЕДНЯЯ SI (W/O HINGES) ST1 (06) 2005-2009 01
001 88937089 ДВЕРЬ, ПЕРЕДНЯЯ SI (W/O HINGES) ST1 (06) 2005-2009 01
002 15206920 WINDOW, FRT S/D ST1 (06) (X88, Z88) (EXC B4U, Y91) 2006-2009 01
002 25930348 WINDOW, FRT S/D ST1 (06) (X88, Z88) (EXC B4U, Y91) 2006-2009 01
003 10386316 INSULATOR, FRT S/D ST155 2006-2009 02
004 15944000 REGULATOR, FRT S/D WDO (INCLS 5-8) (INCLS MOTOR) (16.260) ST1 (06) 2002-2009 01
004 15944000 REGULATOR, FRT S/D WDO (INCLS 5-8) (INCLS MOTOR) ST1 (06) 2002-2009 01
004 15944001 REGULATOR, FRT S/D WDO (INCLS 5-8) (INCLS MOTOR) (16.260) (ACDelco #15944001) ST1 (06) 2002-2009 01
004 15944001 REGULATOR, FRT S/D WDO (INCLS 5-8) (INCLS MOTOR) (ACDelco #15944001) ST1 (06) 2002-2009 01
005 БОЛТ, FRT S/D WDO REG MOT (PART OF 4) 2006-2009
006 88980703 MOTOR, FRT S/D WDO REG (PART OF 4) (ACDelco #88980703) ST155 2006-2006 01
006 88980704 MOTOR, FRT S/D WDO REG (PART OF 4) (ACDelco #88980704) ST155 2006-2006 01
007 11519381 БОЛТ, WASHER M6X1X15, 5.75 THD, 17 OD, 8.8, GMW3359, M-POINT, 1.65 CON SPRWA (PART OF 4) 2002-2009 04
008 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (PART OF 4) 2002-2009 04
009 11519381 БОЛТ, WASHER M6X1X15, 5.75 THD, 17 OD, 8.8, GMW3359, M-POINT, 1.65 CON SPRWA (FRT S/D WDO REG) 2002-2009 06
010 15042820 ГАЙКА, FRT S/D I/S HDL (M6X1, 19X14) (9.665) ST1 2005-2009 02
011 25868201 HANDLE, FRT S/D I/S (INCLS 13, 14) (EBONY) (W/O LOCK/HNDL RODS) (WHEN REPLG 15044612 W/CHROME LOCK KNOB REPL BOTH SIDES) ST1 (X88) 2005-2007 01
011 25868201 HANDLE, FRT S/D I/S (INCLS 13, 14) (EBONY) (W/O LOCK/HNDL RODS) (WHEN REPLG 15044612 W/CHROME LOCK KNOB REPL BOTH SIDES) (16.345) ST1 (X88) 2005-2007 01
011 25868338 HANDLE, FRT S/D I/S (INCLS 13, 14) (EBONY) (W/O LOCK/HNDL RODS) (WHEN REPLG 15044613 W/CHROME LOCK KNOB REPL BOTH SIDES) ST1 (06) (X88) 2005-2007 01
012 11519806 БОЛТ, HEX W/CON WA, M6X1X22, 14.88 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (FRT S/D I/S HDL) 2002-2009 02
013 10292364 CLIP, FRT S/D I/S HDL ROD (PART OF 11) (BLACK) (10.512) ST1 2005-2009 01
013 10292365 CLIP, FRT S/D I/S HDL ROD (INSIDE) (PART OF 11) (WHITE) (10.512) ST1 2005-2009 01
014 10292364 CLIP, FRT S/D LKG ROD (INSIDE) (PART OF 11) (BLACK) (10.512) ST1 2002-2009 01
014 10292365 CLIP, FRT S/D LKG ROD (INSIDE) (PART OF 11) (WHITE) (10.512) ST1 2002-2009 01
015 15081427 ROD, FRT S/D I/S HDL (BLACK) ST1 2005-2009 01
015 15081429 ROD, FRT S/D I/S HDL (BLACK) ST1 2005-2009 01
016 15291850 ROD, FRT S/D LKG ST1 2005-2009 01
016 15291851 ROD, FRT S/D LKG ST1 (06) 2005-2009 01
017 15336498 GROMMET, FRT S/D DR WRG HARN (PART OF 18) ST1 2005-2009 02
018 HARNESS, FRT S/D DR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПЕРЕДНЯЯ ДВЕРЬ FOR DETAILED ILLUSTRATED VIEW) (INCLS 17) 2002-2009
019 15110505 LOCK, FRT S/D (INCLS 20-23) (INCLS ACTUATOR) ST1 (06) (EXC UA2, UA6) 2002-2009 01
019 15110506 LOCK, FRT S/D (INCLS 20-23) (INCLS ACTUATOR) ST1 (06) (EXC AU0, AU5, AU8) 2002-2009 01
019 15110507 LOCK, FRT S/D (INCLS 20-23) (INCLS ACTUATOR, DR AJAR SW) ST1 (06) (UA2, UA6) 2002-2009 01
019 15110508 LOCK, FRT S/D (INCLS 20-23) (INCLS ACTUATOR, DR AJAR SW) ST1 (06) (AU0, AU5, AU8) 2002-2009 01
020 16633853 CLIP, FRT S/D O/S HDL (PART OF 19) (YELLOW) (PLASTIC) (10.527) ST1 2005-2009 AR
020 16640343 CLIP, FRT S/D O/S HDL (PART OF 19) (YELLOW) (10.527) ST1 (06) 2005-2009 01
021 16640343 CLIP, FRT S/D O/S HDL (PART OF 19) (YELLOW) (10.527) ST1 2002-2009 02
022 ACTUATOR KIT, FRT S/D LK (PART OF 19) 2006-2009
023 16606574 БОЛТ, FRT S/D LAT (FRM TO HSG) (PART OF 19) (M2.3X1.34X9) (TORX HD) (10.474) ST1 2005-2009 02
024 15075020 ROD, FRT S/D LK CYL ST1 (06) 2005-2009 01
024 15075021 ROD, FRT S/D LK CYL ST1 2005-2009 01
025 15065805 PLUG, FRT S/D DRN HOLE ST1 2002-2006 04
026 15041919 GUIDE, FRT S/D LKG ROD (16.157) ST1 2002-2009 02
027 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (FRT S/D O/S HDL) 2002-2009 04
028 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (FRT S/D LK) 2002-2009 06
029 CYLINDER KIT, FRT S/D LK (UNCODED) (СМ. ГРУППУ 16.000 ЗАМОК БОКОВОЙ ДВЕРИ FOR DETAILED ILLUSTRATED VIEW) (10.552) 2002-2009
030 15075201 ROD, FRT S/D O/S HDL (PART OF 34) ST1 (06) 2005-2009 01
030 15075202 ROD, FRT S/D O/S HDL (PART OF 34) ST1 2005-2009 01
031 52371986 CLIP, FRT S/D LKG ROD (OUTSIDE) (PART OF 34) ST1 2002-2009 01
031 52371987 CLIP, FRT S/D LKG ROD (OUTSIDE) (PART OF 34) ST1 2002-2009 01
032 SEAL, FRT S/D O/S HDL (PART OF 34) 2006-2009
033 CLIP, FRT S/D LK CYL (PART OF 34) 2006-2009
034 15291303 HANDLE, FRT S/D O/S (INCLS 30-33) (BLACK) ST1 (06) (X88) (EXC B4U, YC5, YC6) 2006-2007 01
034 15291304 HANDLE, FRT S/D O/S (INCLS 30-33) (BLACK) (WITHOUT KEY) ST1 (06) (AU0, AU5, AU8, X88) (EXC B4U, YC5, YC6) 2006-2007 01
034 15291305 HANDLE, FRT S/D O/S (INCLS 30-33) (BLACK) (W/KEY) ST1 (X88) (EXC AU0, AU5, AU8, B4U, YC5, YC6) 2006-2007 01
034 15788261 HANDLE, FRT S/D O/S (INCLS 30-33) ST155 (BNB) (EXPORT) 2005-2008 01
034 15788262 HANDLE, FRT S/D O/S (INCLS 30-33) ST155 (BNB) (EXPORT) 2006-2008 01
034 19120088 HANDLE, FRT S/D O/S (INCLS 30-33) (PAINT TO MATCH) ST155 (B4U, X88) 2006-2007 01
034 19120089 HANDLE, FRT S/D O/S (INCLS 30-33) (PAINT TO MATCH) ST155 (B4U, X88) 2006-2007 01
