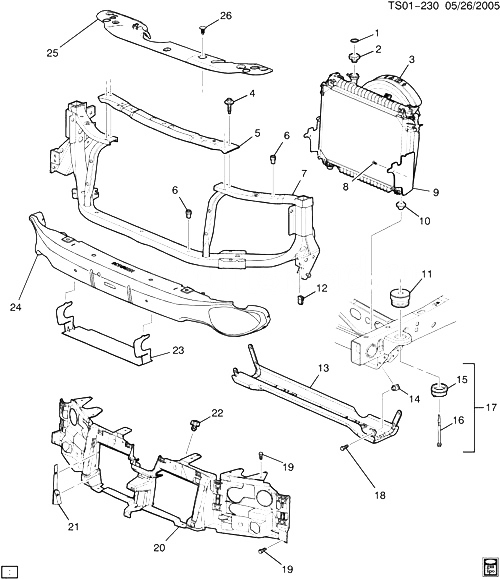

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15063597 |
LABEL, RAD FIL CAP CAUTION (PART OF 2) (DOMESTIC) |
ST1 |
2006-2009 |
01 |
| 002 |
15042975 |
CAP, RAD FIL (INCLS 1) (ACDelco #RC85)
| ST1 |
2006-2009 |
01 |
|
| 003 |
|
RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2009 |
|
| 004 |
11610010 |
БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (RAD SUPT)
|
2006-2009 |
04 |
|
| 005 |
15176209 |
SUPPORT, RAD UPR
| ST1 (06) |
2006-2009 |
01 |
|
| 006 |
11519952 |
ГАЙКА, RIVET, HX BODIED, M6X1.0X19.35, TZ (HDLP RAD GRL MT PNL)
|
2006-2009 |
08 |
|
| 007 |
89025314 |
SUPPORT KIT, RAD (СМ. ГРУППУ 08.000 SHEET METAL/FRONT END FOR DETAILED ILLUSTRATED VIEW)
| ST1 (06) |
2006-2009 |
01 |
|
| 008 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RAD AIR LWR BFL (PUSH IN))
|
2006-2009 |
02 |
|
| 011 |
15768821 |
CUSHION, RAD SUPT UPR (BLUE)
| ST1 (06) |
2006-2006 |
02 |
|
| 012 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (HDLP RAD GRL MT PNL)
|
2006-2009 |
02 |
|
| 014 |
11516149 |
ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RAD LWR SUPT SKID PLT)
|
2006-2009 |
06 |
|
| 015 |
|
CUSHION, RAD SUPT LWR (PART OF 17) |
|
2006-2009 |
|
| 016 |
11518078 |
БОЛТ, HFH W/KNURL, M12X1.75X165, 32 THD, 26.6OD, 10.9, 6173M, MACH, MATCAM-PT (PART OF 17)
|
2006-2009 |
02 |
|
