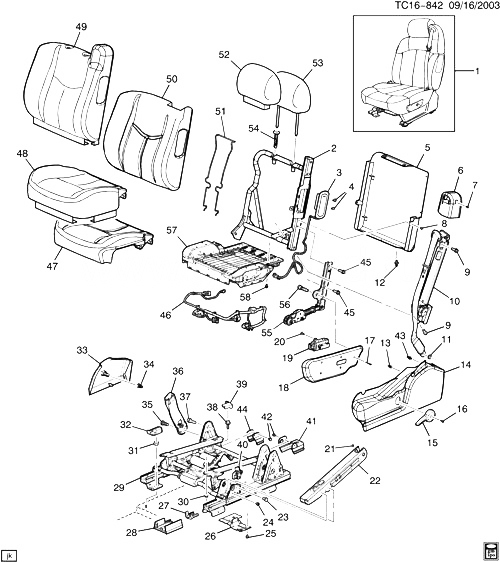

(TC16-842) - 2003-2006 CK(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/SPLIT BENCH (AE7,AG1) CHEVROLET TAHOE Z71 (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88977147 SEAT, DRVR (W/BELT) (PEWTER) CK1, 2 (06) (AE7, AG1, X88, 92D) (EXC AJ7) 2003-2005 01
002 88978387 FRAME, D/SEAT BK CUSH (W/O ARMREST) CK1, 2 (06) (AE7, AL0) 2003-2006 01
003 15831644 MODULE, D/SEAT SI INFL RST (PEWTER) (W/HARNESS) CK1, 2 (06) (92I) 2003-2006 01
004 11514623 БОЛТ, INFL RST CONT MDL (M6X1X20) (8.900) CK1, 2 (06) 2003-2006 04
005 88941749 PANEL, D/SEAT BK CUSH FIN CK1, 2, 3 (EXC ULT) 2003-2006 01
006 12473303 COVER, D/SEAT SHLDR BELT OPG TR CK1, 2, 3 2003-2006 01
007 12476324 БОЛТ, D/SEAT SHLDR BELT OPG TR CVR (M4X0.7X12) (HEX HD) (16.679) CK1, 2, 3 2003-2006 02
008 20538173 RETAINER, D/SEAT BK CUSH FIN PNL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 AR
009 12473319 БОЛТ, D/SEAT SHLDR BELT GDE BRKT (M12X1.75X37) (HEX) (OUTER) (16.682) CK1, 2, 3 2003-2006 02
010 88956018 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (RETR SI) (PEWTER) CK1, 2 (06) (AE7, 92I) 2003-2006 01
010 88956020 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (RETR SI) (NEUTRAL) CK1, 2 (06) (AE7, AL0, 52I) 2003-2006 01
011 11516078 ГАЙКА, D/SEAT BELT (RETR SI) (M12X1.75X18) (8.917) CK1, 2, 3 2003-2006 01
012 12473290 RETAINER, D/SEAT CUSH (NATURAL) CK1, 2, 3 2003-2006 02
013 CLIP, D/SEAT RSR FIN (PART OF 14) 2003-2006
014 88941713 COVER, D/SEAT RSR FIN (INCLS 13, 43) (PEWTER) CK1, 2, 3 (AE7, A95, 92I) 2003-2006 01
014 88941714 COVER, D/SEAT RSR FIN (INCLS 13, 43) (NEUTRAL) CK1, 2, 3 (AE7, A95, 52I) 2003-2006 01
015 88941654 HANDLE, D/SEAT RECL (PEWTER) CK1, 2, 3 (AE7, A95, 69I) 2003-2006 01
015 88941656 HANDLE, D/SEAT RECL (PEWTER) CK1, 2, 3 (92I) 2003-2006 01
015 88941658 HANDLE, D/SEAT RECL (NEUTRAL) CK1, 2, 3 (52I) 2003-2006 01
016 12473322 БОЛТ, D/SEAT RECL HDL (M4.8X1.59X20) CK1, 2, 3 2003-2006 01
017 88941745 БОЛТ, D/SEAT ADJR SW BZL (M3.5X1.3X45MM) (PAN HEAD PHILLIPS) CK1, 2, 3 (AE7) 2003-2006 05
018 88941672 BEZEL, D/SEAT ADJR SW (PEWTER) CK1, 2, 3 (AG1, AE7, A95, 69I) 2003-2006 01
018 88941674 BEZEL, D/SEAT ADJR SW (PEWTER) CK1, 2, 3 (AG1, AE7, A95, 92I) 2003-2006 01
018 88941676 BEZEL, D/SEAT ADJR SW (NEUTRAL) CK1, 2, 3 (AG1, AE7, A95, 52I) 2003-2006 01
019 12450256 SWITCH, D/SEAT ADJR (6-WAY) (W/COVER) CK1, 2, 3 (AE7, A95) 2003-2006 01
020 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (D/SEAT ADJR SW) 2003-2006 03
021 12476880 RETAINER, D/SEAT ADJR LAT ROD (10.0MM OD, 5.9MM LG) (PUSH-IN) CK1, 2, 3 2003-2006 01
022 88941830 BRACKET, D/SEAT OTR ADJR CK1, 2, 3 2003-2006 01
023 88936522 БОЛТ, D/SEAT RECL (M10X1.5X12.56) (SHLDR) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 02
024 88936767 БОЛТ, D/SEAT RECL (M6X1X10) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 02
025 88936767 БОЛТ, D/SEAT ADJR (M6X1X10) CK1, 2, 3 2003-2006 04
026 88940328 BRACKET, D/SEAT ADJR WRG HARN CK1, 2, 3 2003-2006 01
027 12478516 COVER, D/SEAT OTR ADJR LWR FRT FIN (BLACK) CK1, 2, 3 2003-2006 01
028 12473317 COVER, D/SEAT OTR ADJR FRT FIN (BLACK) CK1, 2, 3 2003-2006 01
029 88940273 ADJUSTER, D/SEAT (INCLS 40) (INCLS SENSOR MOTORS) (LESS RECLINER MOTOR) CK1, 2 (AG1, AE7, AL0) 2003-2006 01
030 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (F/SEAT CUSH FRM) 2003-2006 04
031 15035434 ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 04
032 15763293 COVER, F/SEAT ADJR FIN (BLACK) (DRIVER SIDE) (I/B TRACK) (FRT) CK1, 2 (06-36) 2003-2006 01
033 88941700 COVER, D/SEAT INR ADJR RR FIN (INCLS 34) (PEWTER) CK1, 2, 3 (69I) 2003-2006 01
033 88941702 COVER, D/SEAT INR ADJR RR FIN (INCLS 34) (PEWTER) CK1, 2, 3 (92I) 2003-2006 01
033 88941704 COVER, D/SEAT INR ADJR RR FIN (INCLS 34) (NEUTRAL) CK1, 2, 3 (52I) 2003-2006 01
034 CLIP, D/SEAT INR ADJR RR FIN (PART OF 33) 2003-2006
035 88981775 БОЛТ, D/SEAT BELT (BKL SI) (M12X1.75X35) (PAN HD) CK1, 2, 3 2003-2006 01
036 88957874 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (NEUTRAL) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06) (AE7, AL0, 52I) 2003-2006 01
036 88957876 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (PEWTER) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06) (AE7, AL0, 92I) 2003-2006 01
037 88976917 БОЛТ, F/SEAT BK CUSH PIV (M10X1.5X28.5) CK1, 2, 3 2003-2006 02
038 15044189 БОЛТ, F/SEAT (M12X1.75X45) (16.679) CK1, 2, 3 (AE7, AN3, A95) 2003-2005 04
039 15040025 COVER, F/SEAT ADJR FIN (PEWTER) (DRIVER SIDE) (I/B TRACK) CK1, 2 (06-36) (92I) 2003-2006 01
039 15051616 COVER, F/SEAT ADJR FIN (NEUTRAL) (DRIVER SIDE) (I/B TRACK) CK1, 2 (06-36) (52I) 2003-2006 01
040 19180158 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 29) CK1, 2 2003-2006 01
040 88982093 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 29) (INCLS RIVETS) CK1, 2 2003-2006 01
041 88935557 COVER, D/SEAT OTR ADJR UPR RR FIN (BLACK) CK1, 2, 3 2003-2006 01
042 20538173 RETAINER, D/SEAT CUSH (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 10
043 RETAINER, D/SEAT ADJR FIN CVR (PART OF 14) 2003-2006
044 12478511 COVER, D/SEAT INR ADJR UPR FIN (BLACK) CK1, 2, 3 2003-2006 01
045 12473319 БОЛТ, D/SEAT RECL (TO BACK РАМА) (M12X1.75X37) (HEX) (OUTER) CK1, 2, 3 2003-2006 02
046 88978229 HARNESS, D/SEAT ADJR WRG CK1, 2 (06-36) (AE7, AG1, AJ7, AL0, X88, 52D, 92D) 2005-2005 01
046 88978229 HARNESS, D/SEAT ADJR WRG CK1, 2 (06-36) (AE7, AG1, AL0, X88, 52D, 69D) (EXC AJ7) 2005-2005 01
047 88941606 PAD, D/SEAT CUSH CK1, 2, 3 (AE7, A95, AG1) (EXC ULT) 2003-2006 01
048 89044805 COVER, D/SEAT CUSH (PEWTER) CK1, 2 (06) (AE7, AG1, AL0, X88, 92D) 2003-2006 01
048 89044806 COVER, D/SEAT CUSH (NEUTRAL) CK1, 2 (06) (AG1, AE7, X88, 52D) 2003-2006 01
049 89044778 COVER, D/SEAT BK CUSH (PEWTER) CK1, 2 (06) (AE7, X88, 92D) (EXC AJ7) 2003-2005 01
049 89044779 COVER, D/SEAT BK CUSH (NEUTRAL) CK1, 2 (06) (AE7, X88, 52D) (EXC AJ7) 2003-2005 01
049 89044799 COVER, D/SEAT BK CUSH (PEWTER) CK1, 2 (06) (AE7, AJ7, X88, 92D) 2003-2005 01
049 89044800 COVER, D/SEAT BK CUSH (NEUTRAL) CK1, 2 (06) (AE7, AJ7, X88, 52D) 2003-2005 01
050 88941598 PAD, D/SEAT BK CUSH CK1, 2 (06-36) (AE7) (EXC AJ7) 2003-2006 01
050 88941604 PAD, D/SEAT BK CUSH (USE W/TRIM CODES ENDING IN D) CK1, 2 (06) (AE7, AJ7) 2003-2006 01
051 12473533 WIRE, D/SEAT BK CUSH PAD (UP-LEVEL SUPT) CK1, 2, 3 2003-2006 01
052 88941774 COVER, D/SEAT H/RST (PEWTER) CK1, 2 (06) (AE7, X88, 92D) 2003-2006 01
052 89044893 COVER, D/SEAT H/RST CK1, 2 (06) (AE7, X88, 52D) 2003-2006 01
053 88940263 PAD, D/SEAT H/RST (NON-PIVOTING) CK1, 2, 3 2004-2006 01
054 12473301 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2, 3 (AE7, A95, 92I) 2003-2006 02
054 88935568 SUPPORT, D/SEAT H/RST (NEUTRAL) (W/O BUTTON) CK1 (69D) 2005-2005 02
054 88935568 SUPPORT, D/SEAT H/RST (NEUTRAL) (W/O BUTTON) CK1, 2, 3 (52V, 52C, 52D) 2005-2006 02
054 88941190 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2, 3 (69I) 2003-2006 02
054 88941190 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1 (52D) 2005-2005 02
055 88940878 RECLINER, D/SEAT CK1, 2, 3 (AE7, A95) 2003-2006 01
056 89045964 БОЛТ, D/SEAT BK CUSH LAT (M14X76) (W/BUSHING) CK1, 2, 3 2004-2006 01
057 88943141 FRAME, D/SEAT CUSH (MANUAL) CK1, 2, 3 (AE7, A95) 2003-2006 01
057 88943143 FRAME, D/SEAT CUSH (POWER) CK1, 2, 3 (AG1, AE7, AN3, A95) (EXC ULT) 2004-2006 01
058 20538173 RETAINER, D/SEAT CUSH (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 10
