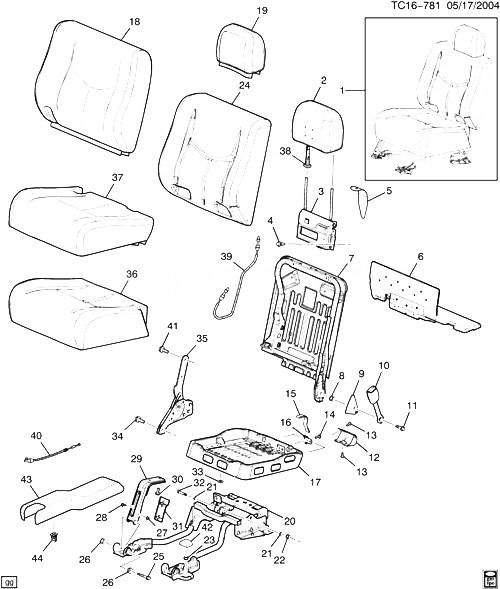

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAT, RR (ONLY AVAILABLE FOR CURRENT MODEL VEHICLES) |
|
2003-2006 |
|
| 002 |
88940648 |
PAD, R/SEAT H/RST |
CK157 (06) (AT5) (EXC AX4) |
2003-2006 |
02 |
| 003 |
|
GUIDE, R/SEAT H/RST ADJ ROD (PART OF 7) |
|
2003-2006 |
|
| 004 |
|
RIVET, R/SEAT H/RST CUSH RET (PART OF 7) |
|
2003-2006 |
|
| 005 |
88977044 |
COVER, R/SEAT H/RST SUPT (PEWTER) |
CK157 (06) (AT5) |
2003-2006 |
04 |
| 006 |
88938049 |
PANEL, R/SEAT BK CUSH FIL (NEUTRAL) |
CK157 (06) (AT5, 52D, 522) (EXC Y91) |
2003-2006 |
01 |
| 006 |
88938079 |
PANEL, R/SEAT BK CUSH FIL (PEWTER)
| CK157 (06) (AT5, 92D, 92V, 922) (EXC Y91) |
2003-2006 |
01 |
|
| 007 |
89046497 |
FRAME, R/SEAT BK CUSH (INCLS 3, 4, 39) (INCLS H/RST CABLE, GUIDE, РАМА, RIVETS) |
CK157 (06) (AT5) |
2003-2006 |
01 |
| 008 |
12477365 |
BUSHING, R/SEAT HGE BRKT |
CK1, 2, 3 |
2003-2006 |
08 |
| 009 |
88978733 |
COVER, R/SEAT BELT BOLT (BKL SI) (WHEAT) |
CK1, 2 (06) |
2003-2006 |
01 |
| 010 |
88955198 |
РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (40% SEAT LOCATION) (PEWTER) (SINGLE BKL) (40% SEAT LOCATION)
| CK1, 2 (06) (AT5, 92I) |
2003-2006 |
01 |
|
| 010 |
88955200 |
РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (40% SEAT LOCATION) (NEUTRAL) (SINGLE BKL) |
CK1, 2 (06) (AT5, 52I) |
2003-2006 |
01 |
| 011 |
88941786 |
БОЛТ, R/SEAT (M10X1.5X40) |
CK1, 2 (06) (AL4, AT5) |
2003-2006 |
01 |
| 012 |
88939173 |
COVER, R/SEAT LAT FIN (NEUTRAL) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1, 2 (06) (AT5, 52I) (EXC Y91) |
2003-2006 |
03 |
| 012 |
88939174 |
COVER, R/SEAT LAT FIN (PEWTER) (LESS SEMI-CIRCLE PROFILE) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1, 2 (06) (AT5, 922) (EXC Y91) |
2003-2006 |
03 |
| 012 |
88939174 |
COVER, R/SEAT LAT FIN (PEWTER) (LESS SEMI-CIRCLE PROFILE) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1, 2 (06) (AT5, 92D, 92V) |
2003-2006 |
03 |
| 013 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (M4.2X1.41X13) (ROUND WASHER) |
CK157 (06) (AT5) |
2003-2006 |
02 |
| 014 |
11562386 |
БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) |
|
2003-2006 |
AR |
| 015 |
12477416 |
STRAP, R/SEAT BK CUSH LAT (PEWTER) |
CK1, 2 (06) (AT5, 92D) |
2003-2006 |
02 |
| 015 |
12477416 |
STRAP, R/SEAT BK CUSH LAT (PEWTER) |
CK1, 2 (06) (AT5, 92V) |
2003-2006 |
02 |
| 015 |
12477416 |
STRAP, R/SEAT BK CUSH LAT (PEWTER) |
CK1, 2 (06) (AT5, X88, Z88, 922) (EXC Y91) |
2003-2006 |
02 |
| 015 |
12479651 |
STRAP, R/SEAT BK CUSH LAT (SHALE) |
CK1, 2 (06) (AT5, 152, 522) |
2003-2006 |
02 |
| 015 |
88936548 |
STRAP, R/SEAT BK CUSH LAT (NEUTRAL) |
CK1, 2 (06) (AT5, 52I) |
2003-2006 |
02 |
| 016 |
12477379 |
LATCH, R/SEAT (40%) (CUSHION) |
CK1, 2 (06) (AT5) |
2003-2006 |
01 |
| 017 |
12477374 |
FRAME, R/SEAT CUSH |
CK1, 2 (06) (AT5) |
2003-2006 |
01 |
| 018 |
89040836 |
COVER, R/SEAT BK CUSH (PEWTER) |
CK157 (06) (AT5, 922) (EXC Y91) |
2004-2006 |
01 |
| 018 |
89040837 |
COVER, R/SEAT BK CUSH (SHALE) |
CK157 (06) (AT5, 522) (EXC Y91) |
2003-2006 |
01 |
| 018 |
89043751 |
COVER, R/SEAT BK CUSH (PEWTER) |
CK157 (06) (AT5, 92V) |
2003-2006 |
01 |
| 018 |
89043751 |
COVER, R/SEAT BK CUSH (PEWTER) |
CK157 (06) (AT5, 5T5, 92D) |
2003-2006 |
01 |
| 018 |
89044845 |
COVER, R/SEAT BK CUSH (PEWTER) |
CK157 (06) (AT5, X88, 92D) (EXC 5T5) |
2003-2006 |
01 |
| 018 |
89044846 |
COVER, R/SEAT BK CUSH (NEUTRAL) |
CK157 (06) (AT5, X88, 52D) |
2003-2006 |
01 |
| 019 |
88941769 |
COVER, R/SEAT H/RST (PEWTER) |
CK157 (06) (AT5, 5T5, 92D) |
2003-2006 |
02 |
| 019 |
88941769 |
COVER, R/SEAT H/RST (PEWTER) |
CK157 (06) (AT5, 922) (EXC AX4, Y91) |
2003-2006 |
02 |
| 019 |
88941769 |
COVER, R/SEAT H/RST (PEWTER) |
CK157 (06) (AT5, 92V) |
2003-2006 |
02 |
| 019 |
88941770 |
COVER, R/SEAT H/RST (SHALE) |
CK157 (06) (AT5, 522) (EXC Y91) |
2003-2006 |
02 |
| 019 |
88941774 |
COVER, R/SEAT H/RST (PEWTER) |
CK157 (06) (AT5, X88, 92D) (EXC AX4) |
2003-2006 |
02 |
| 019 |
88941839 |
COVER, R/SEAT H/RST (PEWTER) |
K157 (06) (AT5, AX4, X88, 92D) (EXPORT) |
2003-2006 |
02 |
| 019 |
88941840 |
COVER, R/SEAT H/RST (NEUTRAL) |
K157 (06) (AT5, AX4, X88, 52D) (EXPORT) |
2003-2006 |
02 |
| 019 |
88941842 |
COVER, R/SEAT H/RST (PEWTER)
| K157 (06) (AT5, AX4, X88, 922) (EXPORT) |
2003-2006 |
02 |
|
| 019 |
88941843 |
COVER, R/SEAT H/RST (SHALE)
| K157 (06) (AT5, AX4, X88, 522) (EXPORT) |
2003-2006 |
02 |
|
| 019 |
89044893 |
COVER, R/SEAT H/RST |
CK157 (06) (AT5, X88, 52D) (EXC AX4) |
2003-2006 |
01 |
| 020 |
88941234 |
RISER, R/SEAT (BLACK) |
CK157 (06) (AT5) (EXC Y91) |
2003-2006 |
01 |
| 021 |
88939502 |
BUSHING, R/SEAT BK CUSH LAT (CABLE) |
CK1, 2 (06) (AT5) |
2003-2006 |
04 |
| 022 |
88934535 |
ГАЙКА, R/SEAT BK CUSH LAT STKR |
CK1, 2 (06) (AT5) |
2003-2006 |
05 |
| 023 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917)
|
2003-2006 |
02 |
|
| 024 |
88941583 |
PAD, R/SEAT BK CUSH |
CK157 (06) (AT5) |
2003-2006 |
01 |
| 025 |
12477366 |
БОЛТ, R/SEAT HGE BRKT (M8X1.25X73.41) |
CK1, 2 (06) (AT5) |
2003-2006 |
04 |
| 026 |
12477365 |
BUSHING, R/SEAT HGE BRKT |
CK1, 2, 3 |
2003-2006 |
08 |
| 027 |
12479648 |
BUSHING, R/SEAT BK CUSH LAT (STRIKER BOLT) |
CK1, 2 (06) (AT5) |
2003-2006 |
06 |
| 027 |
88939502 |
BUSHING, R/SEAT BK CUSH LAT (CABLE) |
CK1, 2 (06) (AT5) |
2003-2006 |
04 |
| 028 |
12473323 |
БОЛТ, R/SEAT RSR FIN CVR (M4X0.7X13) (ROUND WASHER HEAD, #2 POZ1 TAPTITE) |
CK157 (06) (AT5) |
2003-2006 |
06 |
| 029 |
12477386 |
BRACKET, R/SEAT HGE (BLACK) (STRAIGHT LEG) |
CK1, 2 (06) (AT5) |
2003-2006 |
02 |
| 030 |
11562386 |
БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) |
|
2003-2006 |
AR |
| 031 |
12479652 |
COVER, R/SEAT HGE FIN (BLACK) (STRAIGHT LEG) |
CK1, 2 (06) (AT5) |
2003-2006 |
03 |
| 032 |
12479655 |
БОЛТ, R/SEAT LAT STKR (M6X1.0X44 SHLD) (T30 TORX) |
CK1, 2 (06) (AT5) |
2003-2006 |
03 |
| 033 |
88936538 |
BUMPER, R/SEAT CUSH |
CK1, 2 (06) (AT5) |
2003-2006 |
05 |
| 035 |
88978728 |
LATCH, R/SEAT BK CUSH (O/B) |
CK157 (06) (AT5) |
2003-2006 |
01 |
| 036 |
88941585 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AT5) |
2003-2006 |
01 |
| 037 |
89040848 |
COVER, R/SEAT CUSH (PEWTER) |
CK1, 2 (06) (AT5, 922) (EXC Y91) |
2003-2006 |
01 |
| 037 |
89040849 |
COVER, R/SEAT CUSH (SHALE) |
CK1, 2 (06) (AT5, 522) (EXC Y91) |
2003-2006 |
01 |
| 037 |
89043759 |
COVER, R/SEAT CUSH (PEWTER) |
CK1, 2 (06) (AT5, 92V) |
2003-2006 |
01 |
| 037 |
89043759 |
COVER, R/SEAT CUSH (PEWTER) |
CK1, 2 (06) (AT5, 5T5, 92D) |
2003-2006 |
01 |
| 037 |
89044864 |
COVER, R/SEAT CUSH (PEWTER) (16.724) |
CK1, 2 (06) (AT5, X88, 92D) |
2003-2006 |
01 |
| 037 |
89044865 |
COVER, R/SEAT CUSH (NEUTRAL) (16.724) |
CK1, 2 (06) (AT5, X88, 52D) |
2003-2006 |
01 |
| 038 |
12473301 |
SUPPORT, R/SEAT H/RST (PEWTER) (W/O BUTTON) |
CK1, 2 (AT5, 92D, 922) |
2003-2006 |
04 |
| 038 |
12473301 |
SUPPORT, R/SEAT H/RST (PEWTER) (W/O BUTTON) |
CK157 (06) (AT5, 92V) |
2003-2006 |
04 |
| 038 |
12478329 |
SUPPORT, R/SEAT H/RST (PEWTER) (W/BUTTON) |
K157 (06) (AT5, AX4, X88, 92D, 922) (EXPORT) |
2003-2006 |
04 |
| 038 |
12478541 |
SUPPORT, R/SEAT H/RST (SHALE) (W/O BUTTON) |
CK1, 2 (06) (AT5, X88, Z88, 522) |
2003-2006 |
04 |
| 038 |
12479643 |
SUPPORT, R/SEAT H/RST (SHALE) (W/BUTTON) |
K157 (06) (AT5, AX4, X88, 522) (EXPORT) |
2003-2006 |
04 |
| 038 |
88935568 |
SUPPORT, R/SEAT H/RST (NEUTRAL) (W/O BUTTON) |
CK1, 2 (AT5, 52D, 522) |
2003-2006 |
04 |
| 038 |
88936944 |
SUPPORT, R/SEAT H/RST (NEUTRAL) (W/BUTTON) |
K157 (06) (AT5, AX4, X88, 52D) (EXPORT) |
2003-2006 |
04 |
| 039 |
88978646 |
CABLE, R/SEAT H/RST ADJR ACTR (PART OF 7)
| CK157 (06) (AT5) |
2003-2006 |
02 |
|
| 040 |
88941330 |
CABLE, R/SEAT BK CUSH LAT |
CK1, 2 (06) (AT5) |
2003-2006 |
02 |
| 041 |
12478382 |
БОЛТ, R/SEAT RECL (RECLINER TO BACK РАМА) (M10X1.50X28.0) (16.679)
| CK157 (06) (AT5) |
2003-2006 |
02 |
|
| 042 |
15060924 |
COVER, R/SEAT HGE STUD FIN (NEUTRAL) |
CK157 (06) (AT5, 52I) |
2003-2006 |
01 |
| 042 |
15060926 |
COVER, R/SEAT HGE STUD FIN (PEWTER) |
CK157 (06) (92I) |
2003-2006 |
01 |
| 042 |
15060927 |
COVER, R/SEAT HGE STUD FIN (SHALE) |
CK157 (06) (15I) |
2003-2006 |
01 |
| 043 |
15181158 |
COVER, R/SEAT HGE FIN (INCLS 44) (SHALE) (O/B) |
CK157 (06) (15I) |
2003-2006 |
01 |
| 043 |
15181159 |
COVER, R/SEAT HGE FIN (INCLS 44) (NEUTRAL) (O/B) |
CK157 (06) (52I) |
2003-2006 |
01 |
| 043 |
15181160 |
COVER, R/SEAT HGE FIN (INCLS 44) (PEWTER) (O/B) |
CK157 (06) (92I) |
2003-2006 |
01 |
| 044 |
10290472 |
RETAINER, R/SEAT HGE FIN CVR (PART OF 43) (10 X 19.2) (12.811) |
CK1, 2, 3 |
2004-2006 |
01 |
