| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

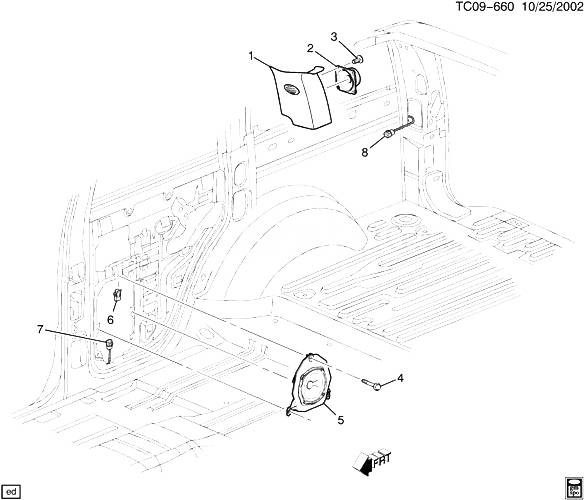

| 001 |
|
MOLDING, BODY RR COR UPR GARN (СМ. ГРУППУ 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 002 |
15054683 |
SPEAKER, RDO BODY RR COR UPR GARN MLDG (ACDelco #15054683) |
CK1, 2 (06) (UQ7) (EXC Y91) |
2003-2006 |
02 |
| 002 |
15063259 |
SPEAKER, RDO BODY RR COR UPR GARN MLDG (ACDelco #15063259) |
CK1 (06) (UQ7, Y91) |
2003-2006 |
02 |
| 003 |
15763534 |
RETAINER, RDO RR SPKR (GRAPHITE) (16.682) |
CK1, 2 (06) (UQ3, UQ7) |
2003-2006 |
02 |
| 004 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RDO RR S/D SPKR BRKT)
|
2003-2006 |
06 |
|
| 005 |
15054680 |
SPEAKER, RDO RR S/D (ACDelco #15054680) |
CK1, 2, 3 (06-36-43) (UQ7) |
2003-2006 |
01 |
| 005 |
15054681 |
SPEAKER, RDO RR S/D (ACDelco #15054681)
| CK1, 2, 3 (06-36-43) (UQ7) |
2003-2006 |
01 |
|
| 006 |
11517760 |
ГАЙКА, M6X1, 15 WIDE, 21 LG, 10.5 C-E, .8-4 PANEL, 1050 (RDO RR S/D SPKR BRKT)
|
2003-2006 |
06 |
|
| 007 |
|
HARNESS, RR S/D DR WRG (СМ. ГРУППУ 16.000 АРМАТУРА ЗАДНЕЙ ДВЕРИ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 008 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/КУЗОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
