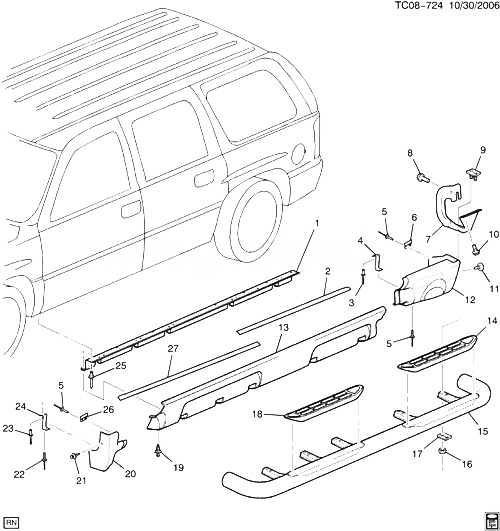

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15766369 |
BRACKET, RKR PNL MLDG (INCLS 25) |
CK157 (06) (BPH) |
2005-2006 |
02 |
| 001 |
15766370 |
BRACKET, RKR PNL MLDG (INCLS 25) |
CK157 (06) (BPH) |
2005-2006 |
02 |
| 002 |
15079207 |
TAPE, RKR PNL MLDG BLACKOUT |
CK1 (06) (BPH) |
2005-2006 |
02 |
| 003 |
11516807 |
RIVET, RR WHL OPG FLARE (BLACK) (4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL) (8.967)
| CK157 (06) (BPH) |
2005-2005 |
04 |
|
| 004 |
15770029 |
RETAINER, RR WHL OPG MLDG |
CK157 (06) (BPH) |
2005-2006 |
02 |
| 005 |
15993201 |
RIVET, RR WHL OPG FRT FLARE (FOR 9.3MM DIA HOLE) (NYLON)
| CK157, 159 (06) (BPH) |
2005-2006 |
02 |
|
| 006 |
15770030 |
CLIP, RR WHL OPG MLDG |
CK157 (06) (BPH) |
2005-2006 |
04 |
| 007 |
10362372 |
BRACKET, ASST STEP |
CK157, 159 (06) (BPH) |
2005-2006 |
10 |
| 008 |
11609733 |
БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (ASST STEP BRKT)
|
2005-2006 |
10 |
|
| 009 |
15773385 |
PLATE, ASST STEP ANC (INCLS STUDS) |
CK157, 159 (06) (BPH) |
2005-2006 |
10 |
| 010 |
11517484 |
BOLT-HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (ASST STEP BRKT) |
|
2005-2006 |
10 |
| 011 |
15770281 |
RETAINER, RR WHL OPG MLDG (RETAINER ASM) |
CK157 (06) (BPH) |
2005-2006 |
02 |
| 012 |
15768598 |
MOLDING, RR WHL OPG FRT (CHARCOAL) |
CK157 (06) (BPH) |
2005-2006 |
01 |
| 012 |
15768599 |
MOLDING, RR WHL OPG FRT (CHARCOAL) |
CK157 (06) (BPH) |
2005-2006 |
01 |
| 013 |
|
MOLDING, RKR PNL (INCLS 19) |
|
2005-2006 |
|
| 014 |
88937277 |
PAD, ASST STEP RR (PART OF 15) (18 INCH) |
CK157 (06) (BPH) |
2005-2006 |
02 |
| 015 |
15766080 |
STEP, ASST (INCLS 14, 18) (INCLS PAD) |
CK157 (06) (BPH) |
2005-2006 |
01 |
| 015 |
15766081 |
STEP, ASST (INCLS 14, 18) (INCLS PADS) |
CK157 (06) (BPH) |
2005-2006 |
01 |
| 016 |
11609746 |
ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (ASST STEP BRKT)
|
2005-2006 |
04 |
|
| 017 |
15773389 |
PLATE, ASST STEP ANC (INCLS HOLES) |
CK157, 159 (06) (BPH) |
2005-2006 |
10 |
| 018 |
88937278 |
PAD, ASST STEP (PART OF 15) (22 LONG) |
CK157 (06) (BPH) |
2005-2006 |
02 |
| 019 |
15993201 |
RETAINER, PUBX OTR S/PNL EXTN (PART OF 13) (FOR 9.3MM DIA HOLE) (NYLON)
| CK157 (06) (BPH) |
2005-2006 |
20 |
|
| 020 |
15768594 |
MOLDING, F/FDR WHL OPG |
CK157, 159 (06) (BPH) |
2005-2005 |
01 |
| 020 |
15768595 |
MOLDING, F/FDR WHL OPG |
CK157, 159 (06) (BPH) |
2005-2005 |
01 |
| 021 |
20664092 |
RETAINER, RR WHL OPG MLDG (BLACK) (6.3MM DIA X 23MM) (1.276)
| CK157 (06) (BPH) |
2005-2006 |
06 |
|
| 022 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (F/FDR WHL OPG MLDG)
|
2005-2006 |
04 |
|
| 023 |
15993201 |
RIVET, F/FDR WHL OPG MLDG (FOR 9.3MM DIA HOLE) (NYLON) (17.505)
| CK157 (06) (BPH) |
2005-2006 |
02 |
|
| 024 |
15770036 |
RETAINER, F/FDR WHL OPG MLDG |
CK157, 159 (06) (BPH) |
2005-2005 |
02 |
| 025 |
11609715 |
RIVET, BODY SI LWR MLDG RET (PART OF 1) (6.3 SHANK DIA) (16.76 LENGTH, 13.46 OD, 1.52-8.26 GRIP) |
CK1 (06) (BPH) |
2005-2005 |
10 |
| 026 |
|
CLIP, F/FDR UPR MLDG |
|
2005-2006 |
|
| 027 |
15079205 |
TAPE, RKR PNL MLDG BLACKOUT (FRONT) |
CK1 (06) (BPH) |
2005-2006 |
01 |
| 027 |
15079206 |
TAPE, RKR PNL MLDG BLACKOUT (FRONT) |
CK1 (06) (BPH) |
2005-2006 |
01 |
