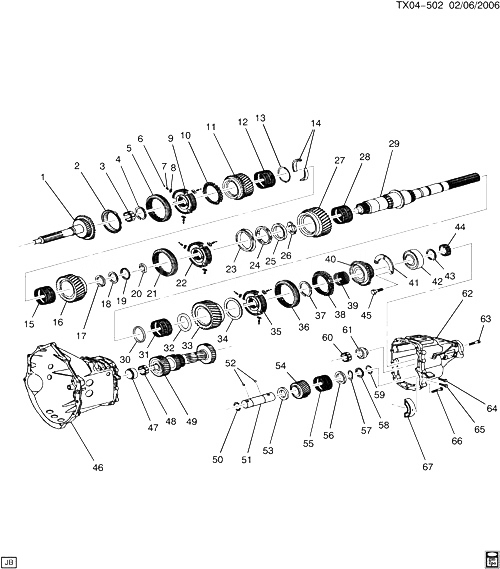

(TX04-502) - 2001-2007 CK1 5-ТИ СКОРОСТНАЯ МКПП (MG5) ЧАСТЬ 3 MAIN GEARS CHEVROLET TAHOE Z71 (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88934832 SHAFT, INPUT (4.403) CK1 (MG5) 2001-2007 01
002 08672050 RING, 3RD GR BLOCKING (INCLS RING LINING) (ACDelco #8672050) CK1 (MG5) 2001-2007 01
003 12544738 BEARING, MAIN SHF FRT CK1 (MG5) 2001-2007 01
004 23049986 RING, 3RD 4TH GR SYN RET (44X52X2.0) (4.416) CK1 (MG5) 2003-2007 01
005 SLEEVE, 3RD 4TH GR SYN (*KIT1) 2001-2007
006 14082095 BALL, 1ST 2ND GR SYN DTNT (5MM) (*KIT2) (4.415) CK1 (MG5) 2001-2007 03
006 14082095 BALL, 3RD 4TH GR SYN DTNT (5MM) (*KIT1) (4.415) CK1 (MG5) 2001-2007 03
006 14082095 BALL, 5TH REV GR SYN DTNT (5MM) (*KIT3) CK1 (MG5) 2001-2007 03
007 14082096 ПРУЖИНА, SYN (O.D.-.18 INCHES-FREE LENGTH-.248 INCHES, APPROX) (*KIT1, KIT2, KIT3) CK1 (MG5) 2001-2007 03
008 08672123 INSERT, 1ST 2ND GR SYN (*KIT2) (ACDelco #8672123) CK1 (MG5) 2001-2007 03
008 08672123 INSERT, 3RD 4TH GR SYN (*KIT1) (ACDelco #8672123) CK1 (MG5) 2001-2007 03
008 08672123 INSERT, 5TH REV GR SYN (*KIT3) (ACDelco #8672123) CK1 (MG5) 2001-2007 03
009 HUB, 3RD 4TH GR SYN (*KIT1) 2001-2007
010 08672050 RING, 4TH GR BLOCKING (INCLS RING LINING) (ACDelco #8672050) CK1 (MG5) 2001-2007 01
011 88934831 GEAR, 3RD CK1 (MG5) 2001-2007 01
012 23049697 BEARING, 3RD GR (ACDelco #23049697) CK1 (MG5) 2001-2007 01
013 12547384 RING, 2ND GR THR WA RET CK1 (MG5) 2001-2007 01
014 12549349 WASHER, 2ND GR THR (4.355) CK1 (MG5) 2001-2007 02
015 12548468 BEARING, 2ND GR (ACDelco #12548468) CK1 (MG5) 2001-2007 01
016 88934835 GEAR, 2ND CK1 (MG5) 2001-2007 01
017 12548368 RING, 1ST GR INR BLOCKING CK1 (MG5) 2001-2007 02
018 12549339 CONE, 1ST GR SYN CK1 (MG5) 2001-2007 02
018 12549339 CONE, 2ND GR SYN CK1 (MG5) 2001-2007 02
019 12548466 RING, 2ND GR BLOCKING (BEIGE) (4.384) (ACDelco #12548466) CK1 (MG5) 2001-2007 01
020 23049723 RING, 1ST 2ND GR SYN RET (49X57X2.05) (4.416) CK1 (MG5) 2001-2007 01
021 SLEEVE, 1ST 2ND GR SYN (*KIT2) 2001-2007
022 HUB, 1ST 2ND GR SYN (*KIT2) 2001-2007
023 12548466 RING, 1ST GR BLOCKING (BEIGE) (4.384) (ACDelco #12548466) CK1 (MG5) 2001-2007 01
025 12548368 RING, 1ST GR INR BLOCKING CK1 (MG5) 2001-2007 02
026 12548367 RING, 1ST GR INTER BLOCKING RING RET CK1 (MG5) 2001-2007 02
027 88934834 GEAR, 1ST CK1 (MG5) 2001-2007 01
028 12548230 BEARING, 1ST GR (ACDelco #12548230) CK1 (MG5) 2001-2007 01
029 12547354 SHAFT, MAIN (ACDelco #12547354) K1 (MG5) 2001-2007 01
030 12547144 SEAL, 5TH GR (4.307) CK1 (MG5) 2001-2007 01
031 08680487 BEARING, REV GR (4.355) (ACDelco #8680487) CK1 (MG5) 2001-2007 01
032 12547174 SEAL, REV GR (4.309) CK1 (MG5) 2001-2007 01
033 88934825 GEAR, REV CK1 (MG5) 2001-2007 01
034 12473243 RING, REV GR BLOCKING CK1 (MG5) 2001-2007 01
035 HUB, 5TH REV GR SYN (*KIT3) 2001-2007
036 SLEEVE, 5TH REV GR SYN (*KIT3) 2001-2007
037 23049790 RING, 5TH REV GR SYN RET (49X57X2.0) (4.416) CK1 (MG5) 2001-2007 01
038 RING, SYN BLOCKING 2001-2007
039 12545775 BEARING, 5TH GR CK1 (MG5) 2001-2007 01
040 88934833 GEAR, 5TH CK1 (MG5) 2001-2007 01
041 08672266 RETAINER, MAIN SHF BRG (C SHAPED) (4.353) K1 (MG5) 2001-2007 01
042 88996720 BEARING, MAIN SHF RR CK1 (LR4, LU3, MG5) 2004-2007 01
043 23049936 RING, VEH SPD SEN RELUCTOR WHL RET (35 X 2.1) (4.416) CK1 (MG5) 2001-2007 01
045 11513805 БОЛТ, HEX, M8X1.25X22, FULL THD, 9.8, POR (MAIN SHF) 2001-2007 03
046 12473975 HOUSING, CLU (ACDelco #12473975) CK1 (MG5) 2001-2007 01
047 RACE, CTRSHFT BEARING (PART OF 48) 2001-2007
048 08677696 BEARING, CNTR GR FRT (INCLS 47) (W/RACE) (ACDelco #8677696) CK1 (MG5) 2001-2007 01
049 12545780 SHAFT, CNTR GR CK1 (MG5) 2001-2007 01
050 12545788 RING, REV IDLER GR RET (4.419) CK1 (MG5) 2001-2007 02
051 12545781 SHAFT, REV IDLER GR CK1 (MG5) 2001-2007 01
053 12545787 WASHER, REV IDLER GR THR CK1 (MG5) 2001-2007 02
054 12545784 GEAR, REV IDLER CK1 (MG5) 2001-2007 01
055 12547410 BEARING, REV IDLER GR (ACDelco #12547410) CK1 (MG5) 2001-2007 01
056 12545787 WASHER, REV IDLER GR THR CK1 (MG5) 2001-2007 02
057 12545785 WASHER, REV IDLER GR (WAVE SPRING TYPE) (4.419) CK1 (MG5) 2001-2007 01
058 12545786 WASHER, REV IDLER GR CK1 (MG5) 2001-2007 01
059 12545788 RING, REV IDLER GR RET (4.419) CK1 (MG5) 2001-2007 02
060 08677696 BEARING, CNTR GR FRT (INCLS 61) (W/RACE) (ACDelco #8677696) CK1 (MG5) 2001-2007 01
061 RACE, CNTR SHFT BRG (PART OF 60) 2001-2007
062 12473979 CASE, TRANS RR K1 (MG5) 2001-2007 01
063 11513805 БОЛТ, HEX, M8X1.25X22, FULL THD, 9.8, POR (TRANS RR CVR) 2001-2007 01
064 11509555 БОЛТ, HEX, M8X1.25X70, 30MM THD, 10.9, PS (TRANS RR CASE) 2001-2007 01
065 11514766 БОЛТ, HEX, M8X1.25X25, 22 THD (TRANS RR CASE) 2001-2007 01
066 23049567 БОЛТ, HEX HD, M8X1.25X50, 13 O.D. (TRANS RR CASE) 2001-2007 01
067 12545789 RETAINER, REV IDLER GR SHF (4.431) CK1 (MG5) 2001-2007 01
K01 88934829 SYNCHRONIZER, 3RD 4TH GR (INCLS 5-9) CK1 (MG5) 2001-2007 01
K02 88934824 SYNCHRONIZER, 1ST 2ND GR (INCLS 6-8, 21, 22) CK1 (MG5) 2001-2007 01
K03 88934828 SYNCHRONIZER, 5TH REV GR (INCLS 6-8, 35, 36) CK1 (MG5) 2001-2007 01
