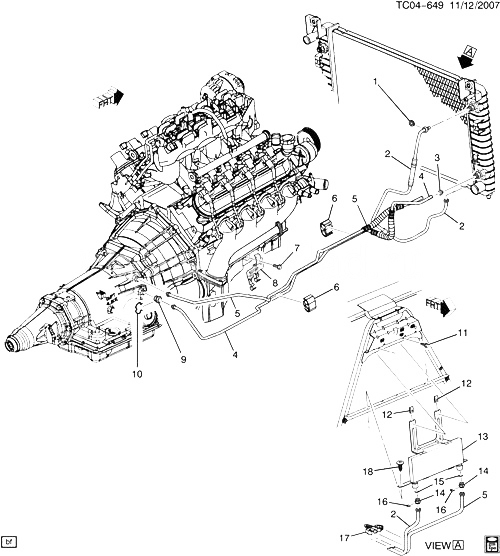

(TC04-649) - 2001-2005 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛЯНОГО РАДИАТОРА (M30,M32,KNP) CHEVROLET TAHOE Z71 (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 2) (PLASTIC RETAINER) (ACDelco #15052228) CK1, 2, 3 2001-2007 02
002 15809058 HOSE, TRANS FLUID AUX CLR INL (INCLS 1) (ACDelco #15809058) CK1 (LM7, LQ4, LQ9, LR4, LU3, L33, L59, M30, M32, KNP) 2005-2005 01
003 19210848 CONNECTOR, TRANS FLUID CLR PIPE (W/O BEVEL WASHER) (ACDelco #19210848) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2005 02
004 15773661 PIPE, TRANS FLUID CLR LWR (OTLT) (CODE CCU, KSL, KLG, UJL, 3661) (ACDelco #15773661) CK1 (LM7) (EXC HP2) 2004-2007 01
004 15773661 PIPE, TRANS FLUID CLR LWR (OTLT) (CODE CCU, KSL, KLG, UJL, 3661) (ACDelco #15773661) CK1 (LQ4, LQ9, LR4, LU3, L33, L59, M30, M32) 2005-2005 01
004 15809050 PIPE, TRANS FLUID CLR LWR CK1 (LM7, HP2) 2004-2006 01
005 15809053 PIPE, TRANS FLUID CLR UPR (CODE KLF, KST, UHY, UKB) (ACDelco #15809053) CK1 (LQ4, LQ9, LR4, LU3, L59, M30, M32, KNP) 2004-2005 01
005 15809053 PIPE, TRANS FLUID CLR UPR (CODE KLF, KST, UHY, UKB) (ACDelco #15809053) CK1 (LM7, KNP) (EXC HP2) 2004-2007 01
005 15809053 PIPE, TRANS FLUID CLR UPR (CODE KLF, KST, UHY, UKB) (ACDelco #15809053) CK1 (L33, M30, M32, KNP) 2005-2005 01
006 15068848 CLIP, TRANS FLUID CLR PIPE (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP) CK1, 2, 3 2001-2007 02
007 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (BAT POS CBL CLIP) 2000-2007 01
008 15022958 CLIP, BAT POS CBL (RETAINS 9.5MM STL TUBING) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) (EXC HP2) 2005-2007 01
009 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS 10) (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366) CK1, 2, 3 (EXC M74) 2001-2005 01
010 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 9) (EXPANDING SPRING WIRE) (ACDelco #24205103) CK1, 2, 3 2001-2007 02
011 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR) 2000-2007 02
012 11570097 ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (TRANS FLUID AUX CLR BRKT) (*KIT1) 2000-2007 02
013 COOLER, TRANS FLUID AUX (*KIT1) 2001-2005
014 15226661 CONNECTOR, TRANS FLUID CLR PIPE (INCLS 15) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (*KIT1) (ACDelco #15226661) CK1, 2, 3 2000-2007 02
015 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 14) (EXPANDING SPRING WIRE) (*KIT1) (ACDelco #24205103) CK1, 2, 3 2001-2007 02
016 24205103 CLIP, TRANS FLUID AUX CLR PIPE (EXPANDING SPRING WIRE) (*KIT1) (ACDelco #24205103) CK1, 2, 3 (MN8, MT1, M30, M32, M70, KNP) 2005-2006 01
017 15049288 CLIP, TRANS FLUID CLR PIPE (BLACK) (37.7X39.3) (DOUBLE SNAIL CLIP) CK1, 2, 3 2001-2007 01
018 15149708 RETAINER, TRANS FLUID AUX CLR (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505) CK1, 2, 3 (KNP) 2001-2005 02
K01 25877162 COOLER, TRANS FLUID AUX (CODE 4639, 5464, 9344, 7192) (INCLS 12-16) (ACDelco #25877162) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2005 01
