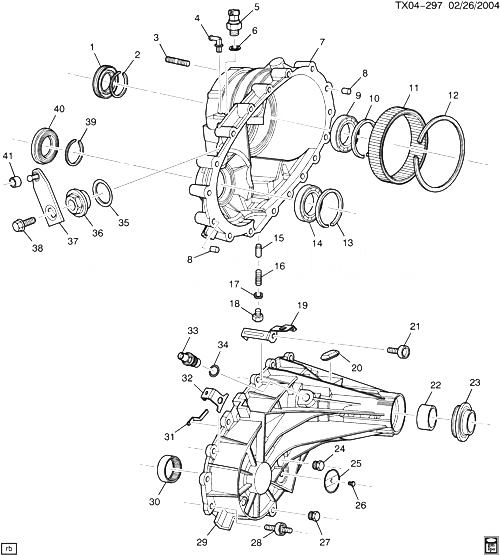

(TX04-297) - 2003-2007 K1,2,3 РАЗДАТОЧНАЯ КОРОБКА (NP2) ЧАСТЬ 1 CASE COMPONENTS (NEW PROCESS 261) CHEVROLET TAHOE Z71 (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12547466 SEAL, TRFER CASE INPUT SHF K1, 2, 3 (NP2) 2003-2007 01
002 00682653 RING, TRFER CASE INPUT GR BRG OTR RET (PART OF 7) (1.82 FREE I.D. X .094 THK) (4.412) K1, 2, 3 (NP2) 2003-2007 01
003 12470962 STUD, TRFER CASE ADAP (PART OF 7) (M10X1.5X27, M10X1.5X18) K1, 2, 3 (NP1, NP2, NP3) 2003-2007 06
004 12470561 VENT, TRFER CASE (PLASTIC VENT) K1, 2, 3 (NP2) 2003-2007 01
005 12473227 SWITCH, TRFER CASE SHFT CONT (W/O O-RING SEAL) K1, 2 (NP2) 2003-2007 01
006 14071849 SEAL, TRFER CASE SEL SW (O RING) (.648 O.D.) K1, 2, 3 (NP2) 2003-2007 01
007 12473204 CASE, TRFER (FRT HALF) (INCLS 2, 3, 9-11, 13, 14) (INCL ANNULUS GEAR RING) K1 (M30, MG5, NP2) 2003-2007 01
008 14037948 PIN, TRFER CASE HALF LOC (DOWEL) K1, 2, 3 (NP2) 2003-2007 02
009 89059659 BEARING, TRFER CASE INPUT SHF (PART OF 7) (ACDelco #89059659) K1, 2, 3 (NP2) 2003-2007 01
010 12547465 RING, TRFER CASE INPUT GR BRG RET (PART OF 7) (3.36MM) (.064MM THK) (INNER) (4.525) K1, 2, 3 (NP2) 2003-2007 01
011 GEAR, TRFER CASE HIGH/LOW INTL (PART OF 7) 2003-2007
012 14037953 RING, TRFER CASE HIGH/LOW INT GR RET K1, 2, 3 (NP2) 2003-2007 01
013 12547465 RING, TRFER CASE FRT OUTPUT SHF FRT BRG RET (PART OF 7) (3.36MM) (.064MM THK) (INNER) K1, 2, 3 (NP2) 2003-2007 01
014 89059659 BEARING, TRFER CASE FRT OUTPUT SHF FRT (PART OF 7) (ACDelco #89059659) K1, 2, 3 (NP1, NP2, NP3, NP8) 2003-2007 01
015 12474072 PLUNGER, TRFER CASE SHFT DTNT K1 (MG5, NP2) 2005-2007 01
015 15633556 PLUNGER, TRFER CASE SHFT DTNT (4.550) K1 (M30, NP2) 2004-2007 01
016 12544303 ПРУЖИНА, TRFER CASE SHFT DTNT K1, 2, 3 (NP2) 2003-2007 01
017 14071849 SEAL, TRFER CASE SHFT DTNT PLGR PLUG (O RING) (.648 O.D.) (4.563) K1, 2, 3 (NP1, NP2) 2003-2007 01
018 12547642 БОЛТ, TRFER CASE SHFT DTNT SPR (5/8-18 X 1/2) (ALUMINUM) (4.510) K1, 2, 3 (NP2) 2003-2007 01
019 12384945 BRACKET, TRFER CASE (SPEED SENSOR HARNESS) K1, 2, 3 (NP2) 2003-2007 01
020 12470560 PLUG, TRFER CASE ACC HOLE K1, 2, 3 (MG5, MT1, MW3, M30, NP2) 2004-2007 01
021 88996722 БОЛТ, TRFER CASE (HEX W/FLAT ALUM WA, M10X1.5X40) K1, 2, 3 (NP2) 2003-2007 17
022 15665313 BUSHING, TRFER CASE RR EXTN (PART OF 29) (4.319) K1 (NP2) 2003-2007 01
023 12547638 SEAL, TRFER CASE RR OUTPUT SHF (STAMPED 22507) (BOOTED) K1 (MG5, M30, NP2) 2003-2007 01
024 15032997 PLUG, TRFER CASE OIL FILL K1, 2, 3 (NP2) 2003-2007 01
025 TAG, TRFER CASE IDENT 2003-2007
026 89059624 SCREW, PAN HEAD, #10-32, 0.25 LENGTH, 0.32 OD, STL, ZP (TRFER CASE) 2003-2007 01
027 15032997 PLUG, TRFER CASE OIL DRN K1, 2, 3 (NP2) 2003-2007 01
029 12473226 CASE, TRFER (RR HALF) (INCLS 22, 30) K1 (M30, NP2) 2003-2007 01
029 12473226 CASE, TRFER (RR HALF) (INCLS 22, 30) K1 (MG5, NP2) 2003-2007 01
030 12547173 BEARING, TRFER CASE FRT OUTPUT SHF RR (PART OF 29) (FRT RR OUTPUT SHF RR) K1, 2, 3 (NP1, NP2, NP3, NP8) 2005-2007 01
031 89059653 RETAINER, TRFER CASE O/PMP STNR (AT МАСЛЯНЫЙ НАСОС) (МАСЛЯНЫЙ НАСОС WEAR SLEEVE) (4.510) K1, 2, 3 (NP2) 2003-2007 01
032 12472969 BRACKET, TRFER CASE (FRT SHAFT SIDE) K1, 2, 3 (NP1, NP2, NP8) 2003-2006 01
033 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (INCLS 34) (2-WAY MALE) (ACDelco #213-347) K1 (L33, NP1, NP2, NP3, NP8) 2003-2007 01
033 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (INCLS 34) (2-WAY MALE) (ACDelco #213-347) K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) 2003-2007 03
033 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (INCLS 34) (2-WAY MALE) (3.682) (ACDelco #213-347) K1 (L33, NP1, NP2, NP3, NP8) 2003-2007 01
033 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (INCLS 34) (2-WAY MALE) (3.682) (ACDelco #213-347) K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) 2003-2007 03
034 19133158 SEAL, VEH SPD SEN (O RING) (PART OF 33) (I.D. 20MM) (ACDelco #19133158) K1 (L33, NP1, NP2, NP3, NP8) 2003-2007 01
034 19133158 SEAL, VEH SPD SEN (O RING) (PART OF 33) (I.D. 20MM) (ACDelco #19133158) K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) 2003-2007 01
035 12473046 SEAL, TRFER CASE SHFT DTNT LVR (HOUSING) K1, 2, 3 (NP2) 2003-2007 01
036 88962320 HOUSING, TRFER CASE SHFT DTNT LVR BRG K1, 2, 3 (NP2) 2003-2007 01
037 12472970 LEVER, TRFER CASE SHFT (W/STUD) K1, 2, 3 (NP2) 2003-2007 01
038 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (TRFER CASE FOUR WHL DRV ACTR) (T/W 12345493 REPLCS 25534835) 2003-2007 01
039 00682653 RING, TRFER CASE FRT OUTPUT SHF FRT BRG RET (1.82 FREE I.D. X .094 THK) (4.412) K1, 2, 3 (NP2) 2003-2007 01
040 12474947 SEAL, TRFER CASE FRT OUTPUT SHF K1, 2, 3 (NP2) 2003-2007 01
041 12475651 WASHER, TRFER CASE SHFT LVR K1, 2, 3 (NP2) 2003-2007 01
