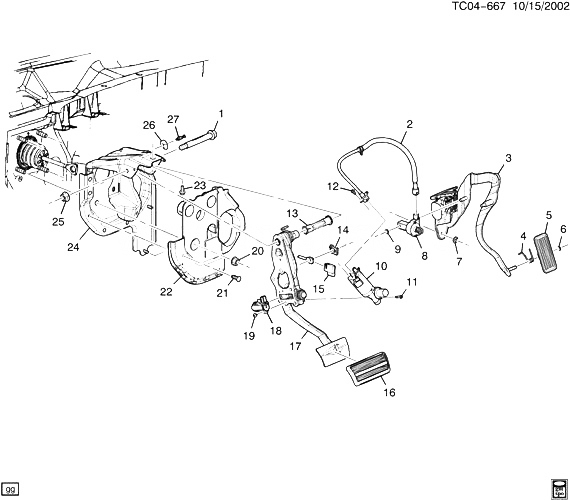

(TC04-667) - 2003-2005 CK1,2(06-36) ПЕДАЛЬ ТОРМОЗА (POWER ADJUSTABLE PEDAL JF4) CHEVROLET TAHOE Z71 (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15000145 БОЛТ, BRK PED PIV (12X1.75X120, 25) CK1, 2, 3 2003-2005 01
002 CABLE, BRK PED POSN (PART OF 17) 2003-2005
003 15713164 PEDAL, ACCEL (INCLS 8, 9) (INCLS ROD, SPRING, RETAINER) CK1 (LU3) 2005-2005 01
004 15713166 ПРУЖИНА, ACCEL PED CK1, 2, 3 2003-2005 01
005 PAD, ACCEL PED 2003-2005
006 03909063 ГАЙКА, PUSH-ON, 1/4, PH 2003-2005 01
007 88982980 ГАЙКА, ACCEL PED BRKT CK1, 2 (06-36) (AN3) 2003-2005 03
008 ACTUATOR, BRK PED POSN (PART OF 3) 2003-2005
009 ГАЙКА, ACTUATOR (PART OF 3) 2003-2005
010 MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 17) 2003-2005
011 БОЛТ, MOTOR (PART OF 17) 2003-2005
012 БОЛТ, CABLE (PART OF 17) 2003-2005
013 15157907 BUSHING, BRK PED PIV CK1 2003-2005 01
013 15200851 BUSHING, BRK PED PIV CK1 (06-36) (JH2, JF4) 2003-2005 01
014 15048329 RETAINER, BRK PED PUSH ROD (29.13 MM) (WITHOUT BOLT) CK1, 2, 3 2003-2005 01
015 15128592 SWITCH, S/LP (ACDelco #D1583G) CK1, 2 (JF4) 2003-2005 01
016 88982976 PAD, BRK PED CK1 (06-36) (AE7, A95, JF4) 2004-2005 02
016 88982976 PAD, BRK PED CK1, 2 (06) (AN3, JF4) 2004-2005 02
017 89040147 PEDAL, BRK (INCLS 2, 10-12) CK1 (06-36) (AE7, A95, JF4, JH2) 2004-2005 01
017 89040148 PEDAL, BRK (INCLS 2, 10-12) CK1 (06-36) (AN3, JF4, JH2) 2004-2005 01
018 88982977 ДАТЧИК, BRK PED POSN CK1, 2 (06) (AN3) 2004-2005 01
018 88982977 ДАТЧИК, BRK PED POSN CK1, 2, 3 2004-2005 01
019 88982978 БОЛТ, BRK PED POSN SEN CK1, 2 (06) (AN3) 2004-2005 02
020 11517996 ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917) CK1, 2, 3 2003-2005 04
021 15188870 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 24) (BUTTON HEAD) CK1, 2, 3 2003-2005 01
022 INSULATOR, DA PNL (PART OF 24) 2003-2005
023 11517182 БОЛТ, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) CK1, 2, 3 2003-2005 01
024 15188778 BRACKET, BRK ACCEL PED (INCLS 21, 22) CK1 (06-36) (JH2, JF4) 2004-2005 01
025 11514598 ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (BRK PED PIV) 2003-2005 01
026 WASHER, BRK ACCEL CLU PED BRKT 2003-2005
027 15188783 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) CK1, 2, 3 2003-2005 01
