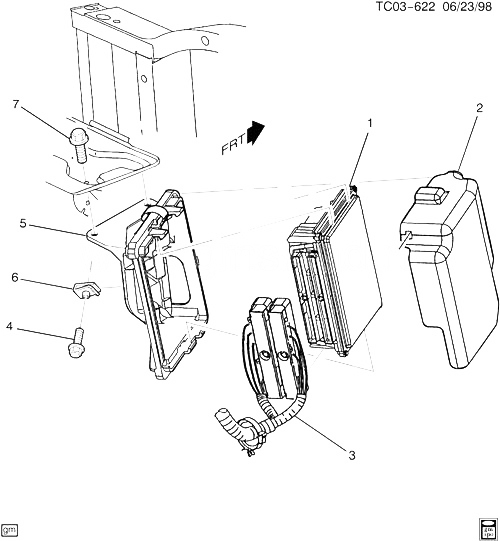

(TC03-622) - 2005-2007 CK P.C.M. МОДУЛЬ И ЖГУТЫ ПРОВОДОВ (LM7/5.3T,LQ4/6.0U,LQ9/6.0N,LR4/4.8V,LU3/4.3X,L33/5.3B,L59/5.3Z) CHEVROLET TAHOE Z71 (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19117215 MODULE, PWRT CONT (W/O CALN) (PARALLEL HYBRID USAGE ONLY) (RE-CERTIFIED) (REQUIRES REPROGRAMMING) CK1 (LM7, M33, HP2) 2004-2007 01
002 15071609 COVER, PCM CK1 (LM7, HP2) 2005-2007 01
002 15071609 COVER, PCM CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L31, L33, L59) (EXC HP2) 2005-2007 01
003 HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) (INCLS BOLTS, RETAINERS, CONNECTORS) 1999-2007
004 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PCM VCM BRKT) 1999-2007 01
005 15047570 BRACKET, PCM CK1 (LU3) 2003-2006 01
005 15047570 BRACKET, PCM CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59) 2005-2006 01
006 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (VCM BRKT) 1999-2007 01
007 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (BAT TRAY) 1999-2007 04
