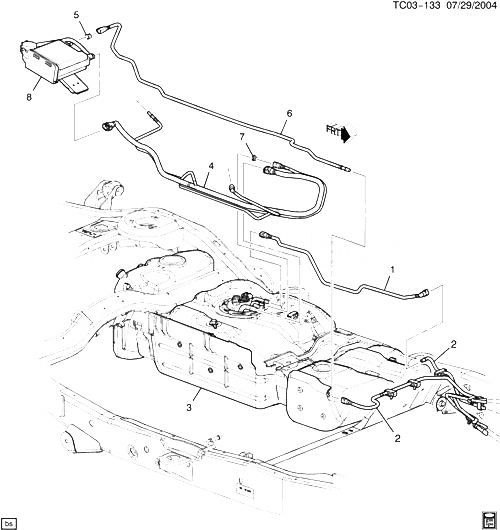

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24100438 |
HOSE, FUEL FEED |
CK157 (06) (LM7, LQ4, LQ9, LR4, L59) |
2004-2006 |
01 |
| 002 |
|
HOSE, FUEL FEED EVAP EMIS RTN (СМ. ГРУППУ 03.000 ТОПЛИВНАЯ СИСТЕМА/ПЕРЕДНЯЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 003 |
25904451 |
БАК, ТОПЛИВНЫЙ (СМ. ГРУППУ 03.000 КРЕПЛЕНИЕ ТОПЛИВНОГО БАКА FOR DETAILED ILLUSTRATED VIEW) (29.6 GAL) (ORDER T/W 25904931)
| CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
|
| 004 |
|
HOSE, EVAP EMIS (*KIT1) |
|
2005-2006 |
|
| 005 |
12522917 |
CONNECTOR KIT, FUEL FEED PIPE (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) (*KIT1) (3.162) |
CK1, 2 |
2004-2005 |
01 |
| 005 |
12522917 |
CONNECTOR KIT, FUEL FEED PIPE (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) (*KIT1) (3.162) |
CK157 (06) (LM7, LQ4, LQ9, LR4, L59) |
2005-2006 |
01 |
| 006 |
|
HOSE, EVAP EMIS CNSTR PURGE (*KIT1) |
|
2005-2006 |
|
| 007 |
12522916 |
RETAINER KIT, EVAP EMIS PIPE (BLUE) (INCLS INST SHT RET) (USE WITH 5/16 TUBE, NYLON) (*KIT1) (3.162)
| CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
|
| 008 |
|
CANISTER, EVAP EMIS (СМ. ГРУППУ 03.000 УГОЛЬНЫЙ ФИЛЬТР И СОПРЯЖЕННЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| K01 |
88983154 |
HOSE, EVAP EMIS CNSTR PURGE (INCLS 4-7) (3.145) |
CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
