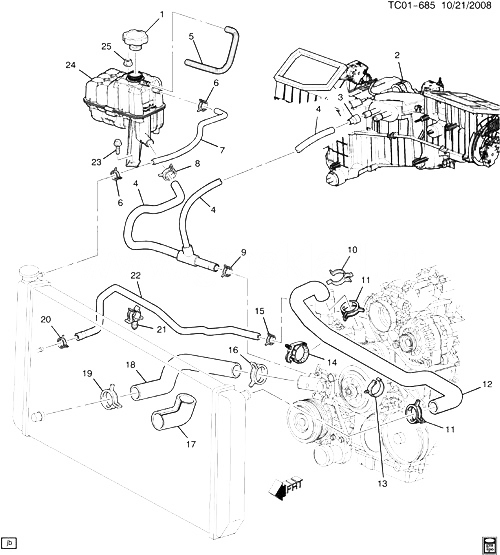

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15075118 |
CAP, RAD SURGE TK (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98)
| CK1, 2, 3 |
2004-2007 |
01 |
|
| 002 |
|
MODULE, HTR A/C EVPR BLO (СМ. ГРУППУ 09.000 A/C HTR MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2007 |
|
| 003 |
15059583 |
CONNECTOR, HTR OTLT HOSE (PART OF 4) (74.93MM LONG) (QUICK CONNECT ASM) |
CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L59) (EXC C36, HP2) |
2005-2006 |
01 |
| 004 |
15792821 |
HOSE, RAD SURGE TK OTLT (INCLS 3, 8, 9) (INCLS TEE) |
CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L59) (EXC C36, HP2) |
2005-2006 |
01 |
| 005 |
|
HOSE, RAD SURGE TK OVFL (PART OF 24) |
|
2005-2007 |
|
| 006 |
15012559 |
CLAMP, SPR (18.4MM TO 21.6MM) NOMINAL SIZE 20MM, STAMPED 20 (PART OF 7) (1.240) |
|
2004-2007 |
02 |
| 007 |
15170551 |
HOSE, RAD SURGE TK INL (INCLS 6) (421X159X117) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L59) (EXC HP2) |
2004-2005 |
01 |
| 007 |
15170551 |
HOSE, RAD SURGE TK INL (INCLS 6) (421X159X117) |
CK1, 2, 3 (L33) |
2005-2005 |
01 |
| 008 |
11562101 |
CLAMP, RAD SURGE TK OTLT HOSE (CLAMP, SPRING BAND, 35MM NOM) (PART OF 4) (8.948) |
CK1, 2, 3 |
2005-2007 |
AR |
| 009 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 4) |
|
2004-2007 |
01 |
| 010 |
15041307 |
CLIP, RAD SURGE TK ENG HOSE (PART OF 12) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
| 011 |
11570618 |
CLAMP-SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (PART OF 12)
|
2004-2007 |
02 |
|
| 012 |
15179498 |
HOSE, RAD INL (INCLS 10, 11, 13, 14) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2006 |
01 |
| 013 |
15159494 |
CLIP, RAD INL HOSE (CENTER OF HOSE, ATTACHES TO RAD SHROUD) (PART OF 12) (PUSH-IN CLIP 37-44 DIA 12.8 DIA) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L59, L33) |
2005-2007 |
01 |
| 014 |
15045503 |
CLIP, RAD INL HOSE (PART OF 12) (CLIP TO HOLD 37-44 DIA HOSE AND 12.8-15 DIA VENT HOSE) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
| 015 |
11571098 |
CLAMP-SPRINGBAND, 14MM NOMINAL DIA, 15MM WIDTH, STL PER GM6298M, GMW140 (PART OF 22) |
|
2004-2007 |
01 |
| 016 |
11562099 |
CLAMP, RAD OTLT HOSE ENG (SPRINGBAND NOMINAL DIA 49MM, 20 WIDTH) (DIA 49MM, 20 WIDTH) (8.948)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, LU3) |
2005-2007 |
02 |
|
| 017 |
|
SLEEVE, RAD SURGE TK OTLT HOSE (PART OF 18) |
|
2005-2007 |
|
| 018 |
19130015 |
HOSE, RAD OTLT (INCLS 17)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) (EXC HP2) |
2005-2007 |
01 |
|
| 019 |
11562099 |
CLAMP, RAD OTLT HOSE RAD (SPRINGBAND NOMINAL DIA 49MM, 20 WIDTH) (DIA 49MM, 20 WIDTH) (8.948)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, LU3) (EXC HP2) |
2005-2007 |
02 |
|
| 020 |
15004599 |
CLAMP, RAD SURGE TK ENG HOSE (INCLS 22) (BLACK) (15MM OD 17.2MM)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
|
| 021 |
15041309 |
CLIP, RAD VENT INL HOSE (INCLS 22) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
| 022 |
15020224 |
HOSE, RAD VENT INL (LESS CLAMPS CLIP) (INCLS 15, 20, 21) |
CK1, 2, 3 |
2004-2005 |
01 |
| 023 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (RAD SURGE TK) |
|
2004-2007 |
01 |
| 024 |
15808715 |
TANK, RAD SURGE (INCLS 5) (ACDelco #15808715)
| CK1, 2, 3 (L33) (EXC HP2) |
2005-2005 |
01 |
|
| 024 |
15808715 |
TANK, RAD SURGE (INCLS 5) (ACDelco #15808715)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L59) (EXC HP2) |
2005-2005 |
01 |
|
| 025 |
25601643 |
ГАЙКА, HEX W/CON WA, M6X1X5.6, 24 OD, 9, ZF (RAD SURGE TK) (8.917)
|
2004-2007 |
01 |
|
