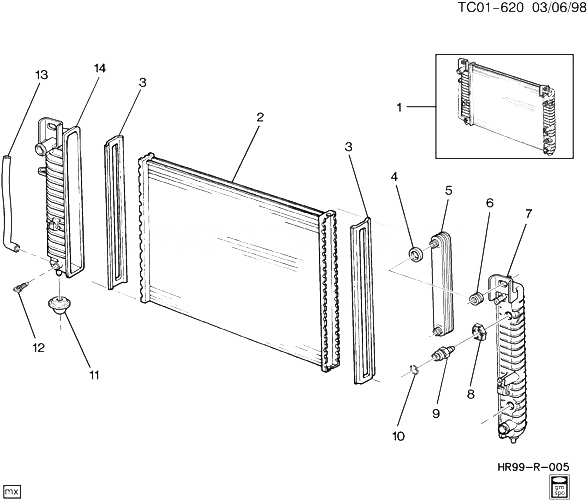

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15841568 |
RADIATOR, (CORE SIZE 34IN X 18 1/2IN X 1 5/16IN CODE CCJ, ARS, ATN) (INCLS 2-14) (ACDelco #21647)
| CK1 (06-36) (LM7, LR4, L59, M30) (EXC WBH) |
2005-2005 |
01 |
|
| 001 |
15841569 |
RADIATOR, (CORE SIZE 34IN X 18 1/2IN X 1 5/16IN CODE CCK, ART, ATP) (INCLS 2-14) (W/TRANS OIL CLR) (ACDelco #21648)
| CK1 (L59, M30, PPV) |
2005-2005 |
01 |
|
| 001 |
15841571 |
RADIATOR, (CORE SIZE 34IN X 18 1/2IN X 1 1/8IN, CODE ADP, DEG, FAA, CAL, AJN, BBL, APC, CCM, ASA, ATS) (INCLS 2-14) (ACDelco #21650)
| CK1 (03-06-53) (LM7, LR4, L33, L59, M30) |
2005-2006 |
01 |
|
| 001 |
15841573 |
RADIATOR, (CORE SIZE 34IN X 19 7/16IN X 2 3/16IN, CODE ANC, ARR, ATU) (INCLS 2-14) (ACDelco #21652)
| CK1 (06) (L59, M30, PPV) |
2005-2006 |
01 |
|
| 002 |
|
CORE, RAD |
|
2004-2007 |
|
| 003 |
|
ПРОКЛАДКА, RAD TK (*KIT1) |
|
2004-2005 |
|
| 004 |
|
ПРОКЛАДКА, RAD TK (*KIT1) |
|
2004-2005 |
|
| 005 |
|
COOLER, TRANS FLUID |
|
2004-2007 |
|
| 006 |
|
INSULATOR, RAD UPR |
|
2004-2007 |
|
| 007 |
|
TANK, RAD OTLT |
|
2004-2007 |
|
| 008 |
|
ГАЙКА, RAD |
|
2002-2007 |
|
| 009 |
15226661 |
CONNECTOR, TRANS FLUID CLR PIPE (INCLS 10) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661)
| CK1, 2, 3 |
2004-2007 |
02 |
|
| 010 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 9) (EXPANDING SPRING WIRE) (ACDelco #24205103)
| CK1, 2, 3 |
2002-2007 |
02 |
|
| 011 |
|
MOUNT, RAD LWR |
|
2005-2007 |
|
| 012 |
|
COCK, RAD DRN |
|
2004-2007 |
|
| 013 |
|
HOSE, RAD DRN COCK |
|
2004-2007 |
|
| 014 |
|
TANK, RAD INL |
|
2004-2007 |
|
| K01 |
52469151 |
GASKET KIT, RAD TK (INCLS 3, 4) (ACDelco #52469151) |
CK1 (06) (LM7, LR4, L59, M30, C69) |
2003-2005 |
01 |
