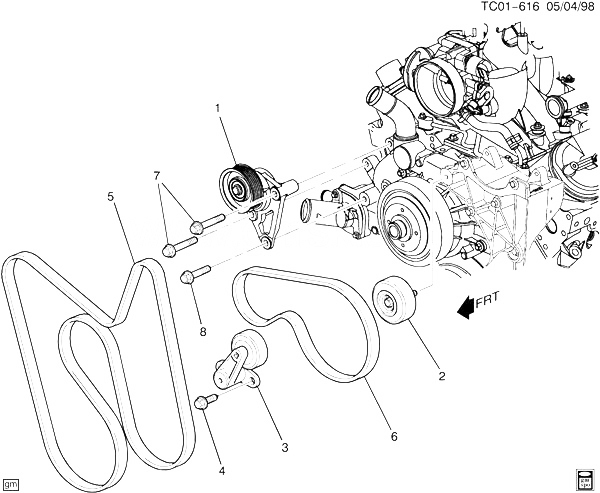

(TC01-616) - 2005-2007 CK ШКИВЫ И РЕМНИ/ПРИВОД ВСПОМОГАТЕЛЬНЫХ АГРЕГАТОВ (LM7/5.3T,LQ4/6.0U,LQ9/6.0N,LR4/4.8V,L33/5.3B,L59/5.3Z CJ2,CJ3)(EXC (HP2)) CHEVROLET TAHOE Z71 (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12609719 TENSIONER, DRV BELT (2 BOLT DESIGN REPLACES 3 BOLT DESIGN) CK1, 2, 3 (LM7, LR4, LQ4, L59, LQ9, L33) 2005-2007 01
002 12580771 PULLEY, BELT IDLER (SMOOTH CODE 5609, 0771) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L59) 2003-2006 01
002 12580771 PULLEY, BELT IDLER (SMOOTH CODE 5609, 0771) CK1, 2, 3 (L33) 2005-2007 01
003 12580196 TENSIONER, A/C CMPR BELT CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, CJ2, CJ3) 2005-2007 01
004 11515767 БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BELT TENSR) (T/W 12345493) 1999-2007 02
005 12576450 РЕМЕНЬ, FAN W/PMP GEN P/S PUMP (2345 MM) (CODE UYA, WBA) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L59, K68) 2002-2005 01
005 12576451 РЕМЕНЬ, FAN W/PMP GEN P/S PUMP (2365+/-10) (CODE UYB, USX, WBB) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, KG3, KW1, 8C6) (EXC HP2) 2005-2007 01
006 12576447 РЕМЕНЬ, A/C CMPR (960MM, 4 RIB) (CODE WAX, UWZ, URM) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, CJ2, CJ3) 2005-2007 01
007 11516109 БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (DRV BELT TENSR) 1999-2007 02
008 11515767 БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (DRV BELT TENSR) (T/W 12345493) 1999-2007 01
