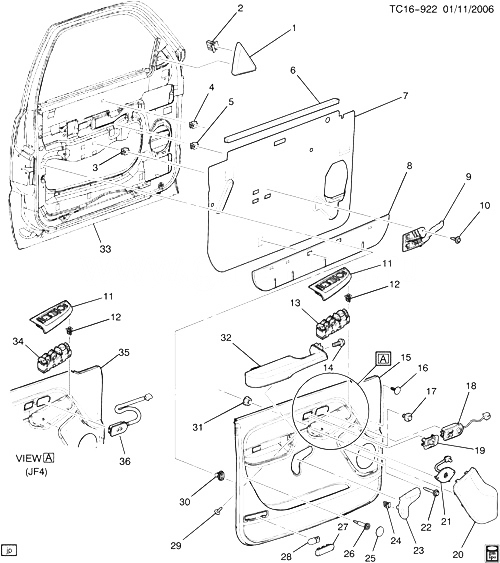

(TC16-922) - 2005-2006 CK1,2(06-36) ОТДЕЛКА ПЕРЕДНЕЙ ДВЕРИ - ВОДИТЕЛЬ (CHEVROLET X88,G.M.C. Z88) CHEVROLET TAHOE LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10374373 PANEL, FRT S/D UPR FRT TR (INCLS 2) (NEUTRAL) CK1, 2, 3 (52I) 2004-2006 01
001 10374375 PANEL, FRT S/D UPR FRT TR (INCLS 2) (PEWTER) CK1, 2, 3 (92I) (EXC Y91) 2004-2006 01
002 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 1) 2004-2006 02
003 11517769 NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (FRT S/D I/S HDL) 2004-2006 02
004 11518162 NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (FRT S/D TR PNL) 2004-2006 02
005 11519497 ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (FRT S/D TR PNL) 2004-2006 04
006 15138387 SEALING STRIP, FRT S/D WDO INR (USE T/W 15219153 LH OR 15219154 RH WEATHERSTRIP) CK1, 2, 3 2004-2006 02
007 21996546 DEFLECTOR, FRT S/D WAT CK1, 2, 3 2004-2006 01
008 21996162 DEFLECTOR, AUX FRT S/D WAT CK1, 2, 3 (YE9) 2004-2006 02
009 15760297 HANDLE, FRT S/D I/S (W/CLIP) CK1, 2, 3 (EXC Y91) 2004-2006 01
010 11518297 BOLT-HEX, M6X1X18, 10 THD, 17 OD, 9.8, 7114M, MACH, DOG-PT, 6175M ADH ON THD (FRT S/D I/S HDL) 2004-2006 02
011 89045127 PLATE, FRT S/D ACSRY SW MT (PART OF 15, 35) (INCLS 12) (NEUTRAL) CK1, 2 (06) (AN3, YE9, 52I) (EXC Y91) 2004-2005 01
011 89045127 PLATE, FRT S/D ACSRY SW MT (PART OF 15, 35) (INCLS 12) (NEUTRAL) CK1, 2 (06) (AE7, A95, YE9, 52I) 2004-2006 01
011 89045129 PLATE, FRT S/D ACSRY SW MT (PART OF 15, 35) (INCLS 12) (PEWTER) CK1, 2 (06) (A95, UQ7, YE9, 92I) 2004-2005 01
011 89045129 PLATE, FRT S/D ACSRY SW MT (PART OF 15, 35) (INCLS 12) (PEWTER) CK1, 2 (06) (AE7, A95, UQ3, YE9, 92I) 2004-2005 01
011 89045129 PLATE, FRT S/D ACSRY SW MT (PART OF 15, 35) (INCLS 12) (PEWTER) CK1, 2 (06) (AN3, UQ7, YE9, 92I) (EXC Y91) 2004-2005 01
012 15254056 RETAINER, FRT S/D ACSRY SW MT PLT (PART OF 11, 15, 35) (8.950) CK1, 2, 3 2004-2006 01
013 15883320 SWITCH, DR LK SI WDO (FRT S/D DR SI) (INCLS MODULE) (INCLS MIRROR SW) CK1, 2 (06) (A31, DL3, DPF, DR4) (EXC JF4) 2005-2005 01
013 15883323 SWITCH, DR LK SI WDO (FRT S/D DR SI) (INCLS MODULE) CK1, 2 (06) (A31, DL8) (EXC JF4) 2005-2005 01
014 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 15, 35) 2004-2006 01
015 10374466 PANEL, FRT S/D TR (INCLS 11, 12, 14, 18, 20, 21, 29-32) (NEUTRAL) CK1, 2 (06) (AE7, A95, UQ3, YE9, 52D, 522) (EXC JF4) 2005-2005 01
015 15281985 PANEL, FRT S/D TR (INCLS 11, 12, 14, 18, 20, 21, 29-32) (PEWTER) CK1, 2 (06) (AE7, A95, UQ3, YE9, 92D, 92V, 922) (EXC JF4) 2005-2005 01
015 15281987 PANEL, FRT S/D TR (INCLS 11, 12, 14, 18, 20, 21, 29-32) (NEUTRAL) CK1, 2 (06) (A95, UQ7, YE9, 52D, 522) (EXC JF4) 2005-2005 01
015 15281988 PANEL, FRT S/D TR (INCLS 11, 12, 14, 18, 20, 21, 29-32) (PEWTER) CK1, 2 (06) (A95, UQ7, YE9, 92D, 922) (EXC JF4) 2005-2005 01
016 15205957 RETAINER, FRT S/D T/PNL (PUSH IN) (NEUTRAL) CK1, 2, 3 (YE9, 52I) 2005-2006 02
016 15205959 RETAINER, FRT S/D T/PNL (PUSH IN) (PEWTER) CK1, 2, 3 (YE9, 92I) 2005-2006 02
017 15714276 SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (FRT S/D T/PNL) (8.977) 2004-2006 02
018 15116862 SWITCH, D/SEAT ADJR MEMORY, HTR AND PED (PART OF 15) (W/ ADJUSTABLE PEDALS) (INCLS RETAINER) CK1, 2 (06-36) (AN3, YE9, 522, 922) (EXC Y91) 2005-2006 01
019 15172121 LEVER, FRT S/D LK CK1, 2, 3 2004-2006 02
020 GRILLE, RDO FRT S/D LWR SPKR (PART OF 15, 35) 2005-2006
021 15204326 SPEAKER, RDO FRT S/D CTR (PART OF 15, 35) (TWEETER) (ACDelco #15204326) CK1, 2, 3 (UQ3) 2004-2006 02
022 11589014 БОЛТ, HWH W/FL WA 12.5 OD, M4.2X1.41X35, 27.3 THD, ISO2702 STL, GMW4205, T (FRT S/D T/PNL) 2004-2006 01
023 15043574 BEZEL, FRT S/D I/S HDL (INCLS 24) (PEWTER) CK1, 2, 3 (YE9, 92I) 2004-2006 01
023 15051575 BEZEL, FRT S/D I/S HDL (INCLS 24) (NEUTRAL) CK1, 2, 3 (YE9, 52I) (EXC 5B5) 2004-2006 01
024 15594543 CLIP, FRT S/D I/S HDL BZL REINF (PART OF 23) (12.7 X 10.4) (9.665) CK1, 2 2004-2006 04
025 15205961 CAP, FRT S/D TR BOLT (NEUTRAL) CK1, 2, 3 (YE9, 52I) 2005-2006 02
025 15205963 CAP, FRT S/D TR BOLT (PEWTER) CK1, 2, 3 (YE9, 92I) 2005-2006 02
026 11588619 SCREW, TORX, PAN HD, M4.2X1.41X44, 40 THD, 15 O.D., P-PT, 6010, 3044GMW (FRT S/D T/PNL) (8.913) 2004-2006 01
027 15021517 LAMP, FRT S/D CTSY (INCLS 28) (RED AND CLEAR) (INCLUDES SOCKET AND BULB) CK1, 2, 3 2004-2006 01
028 09425542 BULB, LAMP #192 (PART OF 27) (ACDelco #L168) 2004-2006 01
029 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PART OF 15, 35) 2004-2006 05
030 RETAINER, FRT S/D T/PNL (PART OF 15, 35) 2005-2006
031 11502553 ГАЙКА, STAMPED, M6.3 STUD, SELF THD, STL, PC (PART OF 15, 35) 2004-2006 02
032 88981548 ARMREST, FRT S/D (PART OF 15, 35) (PEWTER) CK1, 2, 3 (92I) 2004-2006 01
032 88981549 ARMREST, FRT S/D (PART OF 15, 35) (NEUTRAL) CK1, 2, 3 (UQ3, UQ7, YE9, 52I) 2004-2005 01
033 ДВЕРЬ, ПЕРЕДНЯЯ SI (СМ. ГРУППУ 16.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
034 15883319 SWITCH, DR LK SI WDO (FRT S/D DR SI) (INCLS MODULE MIRROR SW) (LABELED OEM 10398564) CK1 (06-36) (A31, DL3, DPF, DR4, JF4) 2004-2005 01
034 15883321 SWITCH, DR LK SI WDO (FRT S/D DR SI) (INCLS MODULE) CK1, 2 (06-36) (A31, DL8, JF4) 2004-2005 01
035 10377861 PANEL, FRT S/D TR (INCLS 11, 12, 14, 20, 21, 29-32, 36) (NEUTRAL) CK1, 2 (06) (AE7, A95, JF4, UQ3, YE9, 52D) 2005-2005 01
035 10377862 PANEL, FRT S/D TR (INCLS 11, 12, 14, 20, 21, 29-32, 36) (PEWTER) CK1, 2 (06) (AE7, A95, JF4, UQ3, YE9, 92D, 92V) 2005-2005 01
035 15281960 PANEL, FRT S/D TR (INCLS 11, 12, 14, 20, 21, 29-32, 36) (NEUTRAL) CK1, 2 (06) (AN3, JF4, UQ7, YE9, 522) (EXC Y91) 2005-2005 01
035 15281961 PANEL, FRT S/D TR (INCLS 11, 12, 14, 20, 21, 29-32, 36) (PEWTER) CK1, 2 (06) (AN3, JF4, UQ7, YE9, 922) (EXC Y91) 2005-2005 01
035 15281963 PANEL, FRT S/D TR (INCLS 11, 12, 14, 20, 21, 29-32, 36) (NEUTRAL) CK1, 2 (06) (A95, JF4, UQ7, YE9, 52D, 522) 2005-2005 01
035 15281964 PANEL, FRT S/D TR (INCLS 11, 12, 14, 20, 21, 29-32, 36) (PEWTER) CK1, 2 (06) (A95, JF4, UQ7, YE9, 92D, 922) 2005-2005 01
035 15281967 PANEL, FRT S/D TR (INCLS 11, 12, 14, 20, 21, 29-32, 36) (PEWTER) CK1, 2 (06) (AE7, A95, JF4, UQ3, YE9, 92D, 92V) 2005-2005 01
036 15179138 SWITCH, ELEK BRK CONT BRK PED (PART OF 35) CK1 (06-36) (JF4) 2005-2006 01
