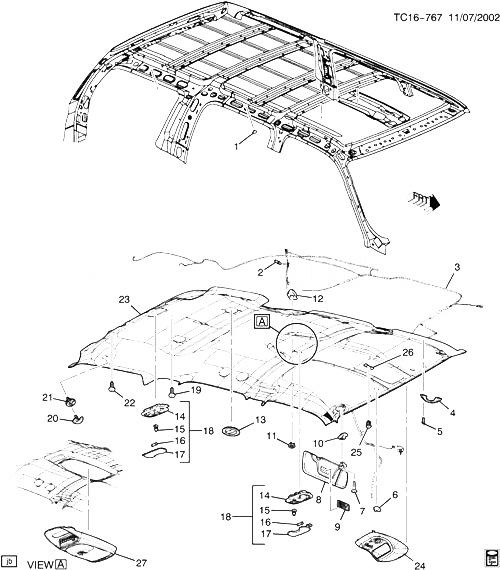

(TC16-767) - 2003-2006 CK157(06) ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША/ОСНОВАНИЕ (EXC CF5) CHEVROLET TAHOE LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15763887 RETAINER, HDLNG T/PNL (DUAL LOCK) (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) CK157 (06) 2003-2006 AR
002 12160947 ДАТЧИК, DUCT AIR TEMP (37.54MM) (PART OF 3) (ACDelco #15-5632) CK1, 2, 3 2003-2006 01
003 HARNESS, RF ACSRY WRG (СМ. ГРУППУ 02.000 WIRING HARNESS FOR DETAILED ILLUSTRATED VIEW (PART OF 23) (INCLS 2) 2003-2006
004 15044366 HANDLE, ASST (PART OF 23) (SHALE) (INCLUDES RETAINER) CK1 (06) (15I) 2003-2006 01
004 15044366 HANDLE, ASST (PART OF 23) (SHALE) (INCLUDES RETAINER) CK1 (06-36) (52I, 92I) 2004-2006 01
004 15048750 HANDLE, ASST (PART OF 23) (PEWTER) (FRT PASS SIDE) (INCLUDES RETAINERS) CK157 (06) (92I) 2003-2005 01
005 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (ASST HDL (PUSH ON)) 2003-2006 02
006 RETAINER, S/S (PART OF 23) 2003-2006
007 11516440 SCREW (PART OF 8) 2003-2006 04
008 15269592 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPLACING W/15269592 MAY REPL RH ALSO) (CUSTOMER MAY BE REQUIRED TO REPLACE BOTH SIDES TO MAINTAIN APPEARANCE) CK1, 2 (06) (DH6, 15I) (EXC ULT) 2005-2005 01
008 15269592 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPLACING W/15269592 MAY REPL RH ALSO) (CUSTOMER MAY BE REQUIRED TO REPLACE BOTH SIDES TO MAINTAIN APPEARANCE) CK1, 2 (06) (DH6, 52I) 2005-2005 01
008 15269592 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPLACING W/15269592 MAY REPL RH ALSO) (CUSTOMER MAY BE REQUIRED TO REPLACE BOTH SIDES TO MAINTAIN APPEARANCE) CK1, 2 (06) (DH6, X88, Z88, 92I) 2005-2005 01
008 15269595 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPLACING VISOR W/15269595 DLR MAY REPL LH VISOR ALSO) CK1, 2 (06) (DH6, 15I) (EXC ULT) 2005-2005 01
008 15269595 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPLACING VISOR W/15269595 DLR MAY REPL LH VISOR ALSO) CK1, 2 (06) (DH6, 52I) 2005-2005 01
008 15269595 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPLACING VISOR W/15269595 DLR MAY REPL LH VISOR ALSO) CK1, 2 (06) (DH6, X88, Z88, 92I) 2005-2005 01
008 15269598 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPL VISOR W/15269598 DLR MAY REPL RH VISOR ALSO) K1 (06) (DH6, ULT, 15I) 2005-2005 01
008 15269600 SUNSHADE, (INCLS 7, 9, 10) (SHALE) (WHEN REPL VISOR W/15269600 DLR MAY REPL LH VISOR ALSO) K1 (06) (DH6, ULT, 15I) 2005-2005 01
009 LABEL, INFL RST SYS MDL WRNG (PART OF 8) 2003-2006
010 COVER, S/S SUPT BOLT (PART OF 8) 2003-2006
011 15029309 GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 23) (GRAPHITE) CK1, 2 (06-36) (92I) 2003-2005 01
011 15044378 GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 23) (SHALE) CK1, 2, 3 (15I, 52I, 69I, 92I) 2003-2006 02
012 25903301 ASPIRATOR, I/S AIR TEMP SEN (PART OF 23) (ACDelco #15-51256) CK1, 2 (06) 2003-2006 02
013 15124270 DEFLECTOR, AUX A/C AIR OTLT (PART OF 23) (PEWTER) CK1, 2 (06) (92I) 2003-2006 AR
013 15124271 DEFLECTOR, AUX A/C AIR OTLT (PART OF 23) (SHALE) CK1, 2 (06) (15I, 52I) 2003-2006 AR
013 15124271 DEFLECTOR, AUX A/C AIR OTLT (PART OF 23) (SHALE) CK1, 2 (06) (X88, Z88, 92I) 2003-2006 AR
014 15032587 HOUSING, DM RDG LP (PART OF 18) (INCLS 16) CK1, 2, 3 2003-2006 01
015 15166059 PUSHBUTTON, RDG LP SW (PART OF 18) (EBONY) CK1, 2, 3 2003-2006 02
016 12450074 BULB, TRADE #578 (PART OF 14) (ACDelco #578) 2003-2006 03
017 15032588 LENS, DM RDG LP (PART OF 18) (3 BULB STYLE) CK1, 2, 3 2003-2006 01
019 15206648 RETAINER, HDLNG T/PNL (SHALE) (LONG PUSH PIN) (LENGTH 47.5MM) CK157 (06) (92I, 15I, 52I, 69I) 2003-2006 02
020 15760164 HOOK, COAT (RR CARGO AREA) (PART OF 23) (INCLS 21) (SHALE) CK157 (06) (15I, 52I, 92I) 2003-2005 02
021 15603591 RETAINER, COAT HOOK (PUSH IN) (PART OF 20) (16.585) CK1, 2 (06) 2003-2006 01
022 15111580 RETAINER, HDLNG T/PNL (PART OF 23) (SHALE) (SHORT PUSH PIN) (28.8MM LENGTH) CK157 (06) (YE9, 15I, 52I) 2003-2006 01
022 15111580 RETAINER, HDLNG T/PNL (PART OF 23) (SHALE) (SHORT PUSH PIN) (28.8MM LENGTH) CK157 (06) (YE9, 92I) (EXC Y91) 2003-2006 01
023 15787427 PANEL, HDLNG TR (INCLS 3, 4, 6, 11-13, 18, 20, 22, 25, 26) (SHALE) (DEALER MAY NEED TO REPLACE DUAL VISORS W/SINGLE BLADE VISOR RETAINERS) CK157 (06) (CJ2, C36, DK7, X88, 52I, 92I) (EXC U42) 2003-2006 01
023 15787430 PANEL, HDLNG TR (INCLS 3, 4, 6, 11-13, 18, 20, 22, 25, 26) (SHALE) CK157 (06) (CJ2, C36, DK7, U42, X88, 52I, 92I) 2003-2006 01
024 CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) 2003-2006
025 PLUG, S/S MT HOLE (PART OF 23) 2004-2006
026 RETAINER, S/S PLUG) (PART OF 23) 2003-2006
027 CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) 2003-2006
