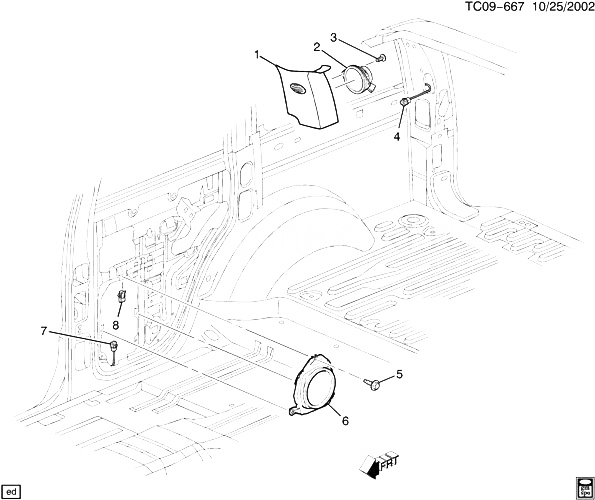

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
MOLDING, BODY RR COR UPR GARN (СМ. ГРУППУ 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 002 |
15183044 |
SPEAKER, RDO BODY RR COR UPR GARN MLDG (ACDelco #15183044) |
CK1, 2 (06) (UQ3) |
2003-2006 |
01 |
| 003 |
15763534 |
RETAINER, RDO RR SPKR (GRAPHITE) (16.682) |
CK1, 2 (06) (UQ3, UQ7) |
2003-2006 |
02 |
| 004 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/КУЗОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 005 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RDO RR S/D SPKR BRKT)
|
2003-2006 |
02 |
|
| 006 |
10371428 |
SPEAKER, RDO RR S/D (ACDelco #10371428) |
CK1, 2, 3 (06-36-43) (UQ3) |
2003-2006 |
01 |
| 006 |
10371429 |
SPEAKER, RDO RR S/D (ACDelco #10371429) |
CK1, 2, 3 (06-36-43) (UQ3) |
2003-2006 |
01 |
| 007 |
|
HARNESS, RR S/D DR WRG (СМ. ГРУППУ 16.000 АРМАТУРА ЗАДНЕЙ ДВЕРИ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 008 |
11517760 |
ГАЙКА, M6X1, 15 WIDE, 21 LG, 10.5 C-E, .8-4 PANEL, 1050 (RDO RR S/D SPKR BRKT)
|
2003-2006 |
02 |
|
