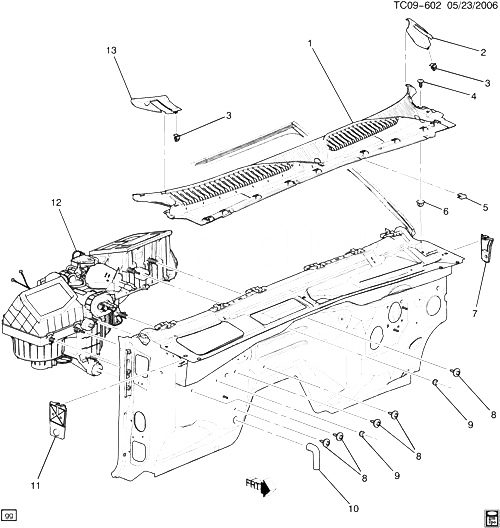

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
PANEL, AIR INL GRL (CTR) (СМ. ГРУППУ 16.000 СИСТЕМА СТЕКЛООЧИСТИТЕЛЯ/ЛОБОВОЕ СТЕКЛО FOR DETAILED ILLUSTRATED VIEW) |
|
1999-2007 |
|
| 002 |
15287177 |
PANEL, AIR INL GRL (END CAP) (INCLS 3) (INCLS FLAPPER SEAL)
| CK1, 2, 3 |
2001-2007 |
01 |
|
| 003 |
15965094 |
CLIP, AIR INL GRL PNL (PART OF 2, 13) (SILVER) (11 X 13) (16.041) |
CK1, 2, 3 |
2001-2007 |
06 |
| 004 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (AIR INL GRL PNL)
|
1999-2007 |
02 |
|
| 005 |
15999788 |
RETAINER, AIR INL GRL PNL (U-SHAPED/CLIP) |
CK1, 2, 3 |
2001-2007 |
04 |
| 006 |
11589183 |
ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (HTR A/C EVPR BLO MDL) |
|
1999-2007 |
02 |
| 007 |
15713205 |
VALVE, PLNM DRN |
CK1, 2, 3 |
2001-2007 |
01 |
| 008 |
15733206 |
БОЛТ, HTR BLO MDL (M6X2.70X27) |
CK1, 2, 3 |
2001-2007 |
05 |
| 009 |
15083574 |
ГАЙКА, HTR A/C EVPR BLO MDL (M6X1.0X6) |
CK1, 2, 3 |
2001-2007 |
02 |
| 010 |
15138625 |
HOSE, A/C EVPR BLO MDL DRN |
CK1, 2, 3 |
2001-2007 |
01 |
| 011 |
15040083 |
VALVE, PLNM DRN |
CK1, 2, 3 |
2001-2007 |
01 |
| 012 |
|
MODULE, HTR A/C EVPR BLO (СМ. ГРУППУ 09.000 КОНДИЦИОНЕР И МОДУЛЬ ПОДОГРЕВАТЕЛЯ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
1999-2007 |
|
| 013 |
15287178 |
PANEL, AIR INL GRL (END CAP) (INCLS 3) (INCLS FLAPPER SEAL) |
CK1, 2, 3 (EXC U84) |
2002-2007 |
01 |
| 013 |
15287179 |
PANEL, AIR INL GRL (END CAP) (INCLS 3) |
CK1 (U84) |
2003-2006 |
01 |
