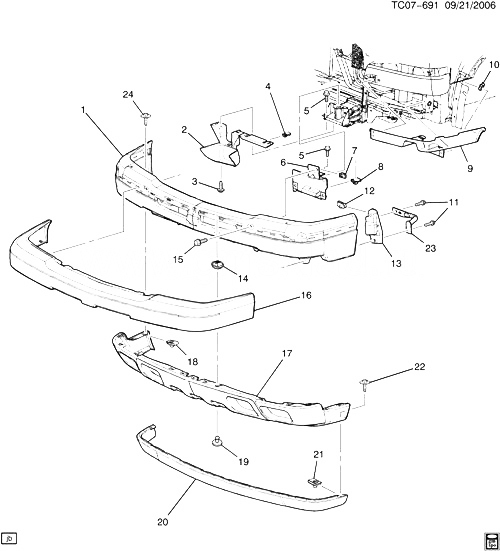

(TC07-691) - 2005-2006 CK1(06) ПЕРЕДНИЙ БАМПЕР (CHEVROLET X88, MEXICO P96) CHEVROLET TAHOE LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 БАМПЕР, ПЕРЕДНИЙ IMP 2005-2007
001 12335826 БАМПЕР, ПЕРЕДНИЙ IMP (PAINT TO MATCH) (W/O BRACES) (IF TOP CAP NEEDS REPLACING, ORDER P/N 88937339) (ELPO COATED) CK1, 2 (06) (VG3, X88) 2005-2005 01
003 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (FRT TOW HOOK RET) 2005-2007 04
004 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (PART OF 2) 2005-2007 04
005 11516845 БОЛТ, HFH, W/FL WA, 10X1.5X35, 22THD, 22.3 O.D., P PT, 9.8, 7114M (PART OF 1) 2005-2007 10
006 15059654 BRACE, FRT BPR IMP BAR (INCLS 7, 8) (LESS PLATE) CK1 (06) (P96, X88) 2005-2006 06
007 22531616 ГАЙКА, U-TYPE, W/STARTER THD, M10X1.5, PZ (PART OF 1, 6) (3.023) 2005-2007 06
008 11516835 NUT В СБОРЕ METRIC HX FLG AND RETAINER, M12X1.75 (PART OF 1, 6) (8.921) 2005-2007 02
010 15037290 RETAINER, FRT BPR FIL (PART OF 9) (BLACK) (STEEL) (S-CLIP) CK1, 2, 3 (X88) 2005-2007 02
011 11518298 БОЛТ, HFH, M12X1.75X42.5, 24.37 THD, 28 OD, 10.9, 7114, MACH, MAT-PT (FRT BPR IMP BAR BR) 2005-2007 06
012 22531616 ГАЙКА, U-TYPE, W/STARTER THD, M10X1.5, PZ (PART OF 1, 13) (3.023) 2005-2007 04
014 15733970 RETAINER, FRT BPR IMP BAR EXTN (PART OF 1) (BLACK) (16MM) (SCREW NUT) (7.833) CK1, 2, 3 2005-2007 15
015 11518298 БОЛТ, HFH, M12X1.75X42.5, 24.37 THD, 28 OD, 10.9, 7114, MACH, MAT-PT (FRT BPR IMP BAR) 2005-2007 12
016 88937339 CAP, FRT BPR FASCIA MLDG (PAINT TO MATCH, EXCEPT BLACK) CK1, 2 (06) (VG3, X88, YE9) 2005-2006 01
019 15733971 RETAINER, FRT A/DFL (PUSH IN) (PART OF 17) (13MM) (1.272) CK1, 2, 3 2005-2007 13
021 11517841 NUT - U-SHAPED, M8X1.0, SAE1050 STL, ZO GM8173M (PART OF 20) 2005-2007 02
022 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (FRT A/DFL) 2005-2007 07
024 11609681 БОЛТ, HEX W/FL WA, M6X1X25, 14 THD, 24 OD, GM6202M STEEL, GMW3200 (FRT A/DFL) 2005-2007 05
