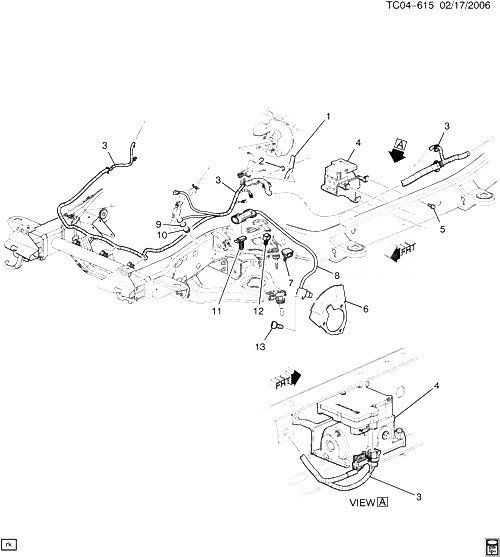

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15045897 |
BRACKET, CHAS FRT WRG HARN |
CK1, 2, 3 |
2001-2006 |
01 |
| 002 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (CHAS FRT WRG HARN BRKT) (8.921) |
|
2000-2006 |
02 |
| 003 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) |
|
2000-2006 |
|
| 004 |
|
MODULE, ELEK BRK CONT (СМ. ГРУППУ 04.000 МОДУЛЬ УПРАВЛЕНИЯ ТОРМОЗАМИ FOR DETAILED ILLUSTRATED VIEW) |
|
2000-2006 |
|
| 005 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (ELEK BRK CONT MDL BRKT)
|
2000-2006 |
03 |
|
| 006 |
15716364 |
SHIELD, FRT BRK
| K1 (JC4, JH1, JH2) |
2005-2006 |
02 |
|
| 007 |
15715952 |
CLIP, WHL SPD SEN WIRE (MIDDLE CLIP) (ATTACH TO THE CONTROL ARM) (PART OF 8) (HOLDS (1) 10MM GROMMET, TREE FITS M6 THD HOLE) |
CK1, 2, 3 |
2001-2006 |
02 |
| 008 |
19181873 |
ДАТЧИК, FRT WHL SPD (INCLS 7, 11, 12) (ACDelco #19181873) |
K1 (JC4, JH1, JH2) |
2005-2005 |
02 |
| 009 |
11503663 |
WASHER (BODY WRG HARN GND) |
|
2000-2006 |
01 |
| 010 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND)
|
2000-2006 |
01 |
|
| 011 |
12186353 |
RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 8) (BLACK) (7.00/6.25 DIA, SLIDING) |
CK1, 2, 3 |
2001-2006 |
01 |
| 012 |
15715954 |
CLIP, WHL SPD SEN WIRE (LOCATED NEAR CONNECTOR END) (ATTACHED TO РАМА) (PART OF 8) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) |
CK1, 2, 3 |
2001-2006 |
02 |
| 013 |
15960191 |
БОЛТ, WHL SPD SEN (M6X1X12) |
CK1, 2, 3 |
2001-2006 |
02 |
