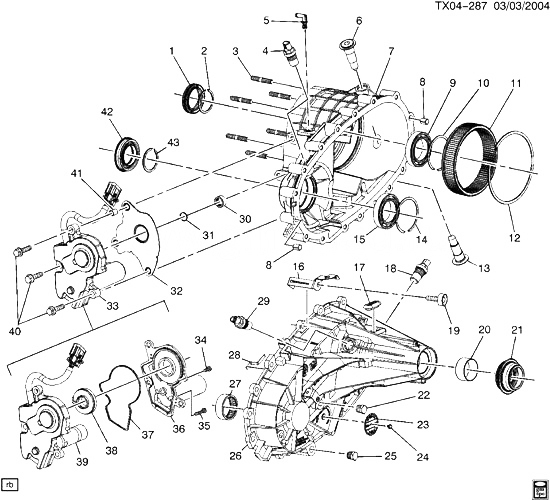

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12547466 |
SEAL, TRFER CASE INPUT SHF
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 002 |
00682653 |
RING, TRFER CASE INPUT GR BRG OTR RET (1.82 FREE I.D. X .094 THK) (4.412) |
K1, 2 (NP8) |
2004-2007 |
01 |
| 003 |
12470962 |
STUD, TRFER CASE ADAP (M10X1.5X27, M10X1.5X18) |
K1, 2 (NP8) |
2004-2007 |
06 |
| 004 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347)
| K1 (L33, NP1, NP2, NP3, NP8) |
2004-2007 |
01 |
|
| 004 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347)
| K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) |
2004-2007 |
03 |
|
| 005 |
12470561 |
VENT, TRFER CASE (PLASTIC VENT) |
K1, 2 (NP8) |
2004-2007 |
01 |
| 006 |
89059638 |
PIN, TRFER CASE FOUR WHL DRV CLU LVR PIV |
K1, 2 (NP8) |
2004-2006 |
02 |
| 007 |
88996461 |
CASE, TRFER (FRT HALF) (INCLS 9-12, 14, 15, 30) |
K1, 2 (NP8) |
2004-2007 |
01 |
| 008 |
14037948 |
PIN, TRFER CASE HALF LOC (DOWEL) |
K1, 2 (NP8) |
2004-2007 |
02 |
| 009 |
89059659 |
BEARING, TRFER CASE INPUT SHF (PART OF 7) (ACDelco #89059659)
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 010 |
12547465 |
RING, TRFER CASE INPUT GR BRG RET (PART OF 7) (3.36MM) (.064MM THK) (INNER) (4.525)
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 011 |
|
GEAR, TRFER CASE HIGH/LOW INTL (PART OF 7) |
|
2004-2007 |
|
| 012 |
14037953 |
RING, TRFER CASE HIGH/LOW INT GR RET (PART OF 7) |
K1, 2 (NP8) |
2004-2007 |
01 |
| 013 |
89059638 |
PIN, TRFER CASE FOUR WHL DRV CLU LVR PIV |
K1, 2 (NP8) |
2004-2006 |
02 |
| 014 |
12547465 |
RING, TRFER CASE FRT OUTPUT SHF FRT BRG RET (PART OF 7) (3.36MM) (.064MM THK) (INNER)
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 015 |
89059659 |
BEARING, TRFER CASE FRT OUTPUT SHF FRT (PART OF 7) (ACDelco #89059659)
| K1, 2, 3 (NP1, NP2, NP3, NP8) |
2004-2007 |
01 |
|
| 016 |
12384945 |
BRACKET, TRFER CASE (MAINSHAFT SIDE) (SPEED SENSOR HARNESS) |
K1 (M30, M33, NP8) |
2004-2005 |
01 |
| 016 |
12384945 |
BRACKET, TRFER CASE (MAINSHAFT SIDE) (SPEED SENSOR HARNESS) |
K1, 2 (MN8, MT1, NP8) |
2005-2006 |
01 |
| 017 |
12470560 |
PLUG, TRFER CASE ACC HOLE |
K1 (M30, M33, NP8) |
2004-2005 |
01 |
| 017 |
88958815 |
PLUG, TRFER CASE ACC HOLE |
K1, 2 (MN8, MT1, NP8) |
2005-2006 |
01 |
| 018 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347)
| K1 (L33, NP1, NP2, NP3, NP8) |
2004-2007 |
01 |
|
| 018 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347)
| K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) |
2004-2007 |
03 |
|
| 019 |
88996722 |
БОЛТ, TRFER CASE (HEX W/FLAT ALUM WA, M10X1.5X40) |
K1, 2 (NP8) |
2004-2007 |
17 |
| 020 |
15665313 |
BUSHING, TRFER CASE RR EXTN (PART OF 26) (4.319)
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 021 |
12547638 |
SEAL, TRFER CASE RR OUTPUT SHF (STAMPED 22507) (BOOTED)
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 022 |
15032997 |
PLUG, TRFER CASE OIL FILL
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 023 |
|
TAG, TRFER CASE IDENT |
|
2004-2007 |
|
| 024 |
89059624 |
SCREW, PAN HEAD, #10-32, 0.25 LENGTH, 0.32 OD, STL, ZP |
|
2004-2007 |
01 |
| 025 |
15032997 |
PLUG, TRFER CASE OIL DRN
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 026 |
12474949 |
CASE, TRFER (RR HALF) (INCLS 20, 27, 28) (W/RETAINER 89059653) (TYPE 246) |
K1, 2 (NP8) |
2004-2007 |
01 |
| 027 |
12547173 |
BEARING, TRFER CASE FRT OUTPUT SHF RR (PART OF 26) (FRT RR OUTPUT SHF RR) |
K1, 2, 3 (NP1, NP2, NP3, NP8) |
2005-2007 |
01 |
| 028 |
89059653 |
RETAINER, TRFER CASE O/PMP STNR (PART OF 26) (AT МАСЛЯНЫЙ НАСОС) (МАСЛЯНЫЙ НАСОС WEAR SLEEVE) (4.510) |
K1, 2 (NP8) |
2004-2007 |
01 |
| 029 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (ACDelco #213-347)
| K1 (L33, NP1, NP2, NP3, NP8) |
2004-2007 |
01 |
|
| 029 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (ACDelco #213-347)
| K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) |
2004-2007 |
03 |
|
| 029 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347)
| K1 (L33, NP1, NP2, NP3, NP8) |
2004-2007 |
01 |
|
| 029 |
12376520 |
ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347)
| K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) |
2004-2007 |
03 |
|
| 030 |
12547464 |
BEARING, TRFER CASE SHFT DTNT LVR (PART OF 7) (INCLS SEAL) (4.570) |
K1, 2 (NP8) |
2004-2007 |
01 |
| 031 |
15662234 |
RING, TRFER CASE SHFT DTNT LVR RET (STEEL) (C-RING) |
K1, 2, 3 (NP1, NP8) |
2004-2007 |
01 |
| 032 |
12384973 |
INSULATOR, TRFER CASE FOUR WHL DRV ACTR |
K1, 2 (NP8) |
2004-2007 |
01 |
| 033 |
88962314 |
ACTUATOR, TRFER CASE FOUR WHL DRV (INCLS 34-39) (INCLS MOTOR ENCODER)
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 034 |
12384988 |
БОЛТ, TRFER CASE FOUR WHL DRV ACTR (PART OF 33)
| K1, 2, 3 (NP1, NP8) |
2004-2007 |
02 |
|
| 035 |
12384989 |
БОЛТ, TRFER CASE ENCODER MOT (PART OF 33)
| K1, 2, 3 (NP1, NP8) |
2004-2007 |
02 |
|
| 036 |
|
ACTUATOR, TRFER CASE FOUR WHL DRV (PART OF 33) |
|
2004-2007 |
|
| 037 |
12384990 |
SEAL, TRFER CASE FOUR WHL DRV ACTR (PART OF 33)
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 038 |
88962315 |
ДАТЧИК, TRFER CASE RANGE SEL POSN (PART OF 33) (STAMPED 40D3909) |
K1 (M30, M33, NP8) |
2004-2005 |
01 |
| 038 |
88962315 |
ДАТЧИК, TRFER CASE RANGE SEL POSN (PART OF 33) (STAMPED 40D3909) |
K1, 2 (MN8, MT1, NP8) |
2004-2006 |
01 |
| 039 |
|
ACTUATOR, TRFER CASE FOUR WHL DRV (PART OF 33) |
|
2004-2007 |
|
| 040 |
25624810 |
БОЛТ, TRFER CASE TWO/FOUR WHL DRV ACTR (M10X1.5X40) (HFH) (4.085) |
K1, 2 (NP8) |
2004-2007 |
03 |
| 041 |
14037948 |
PIN, TRFER CASE HALF LOC (DOWEL) |
K1, 2 (NP8) |
2004-2007 |
02 |
| 042 |
12474947 |
SEAL, TRFER CASE FRT OUTPUT SHF
| K1, 2 (NP8) |
2004-2007 |
01 |
|
| 043 |
00682653 |
RING, TRFER CASE FRT OUTPUT SHF FRT BRG RET (1.82 FREE I.D. X .094 THK) (4.412) |
K1, 2 (NP8) |
2004-2007 |
01 |
