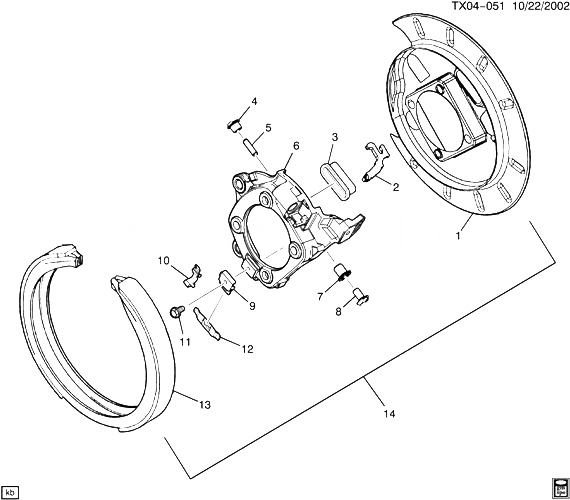

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19178785 |
SHIELD, RR BRK
| CK1 (06-36) (JH2) |
2004-2006 |
02 |
|
| 002 |
|
LEVER, RR PARK BRK (*KIT1) |
|
2005-2006 |
|
| 003 |
|
COVER, RR PARK BRK ADJ OPG (*KIT1) |
|
2005-2006 |
|
| 004 |
|
ACTUATOR, PARK BRK (*KIT1) |
|
2005-2006 |
|
| 005 |
|
ROD, RR PARK BRK ACTR LVR PUSH (*KIT1) |
|
2005-2006 |
|
| 006 |
88967119 |
PLATE KIT, RR PARK BRK ANC BKG (TWO CLIP POINTS FOR PARK BRAKE SHOE FOR 1ST DESIGN SEE 89026786) |
CK1 (06-36) (JH2) (2ND DES) |
2005-2005 |
01 |
| 007 |
|
ГАЙКА, RR PARK BRK ADJ (*KIT1) |
|
2005-2006 |
|
| 008 |
|
ГАЙКА, RR PARK BRK ADJ (*KIT1) |
|
2005-2006 |
|
| 009 |
|
ПРУЖИНА, RR PARK BRK SHOE HOLDN (PART OF 12) (*KIT1) |
|
2005-2006 |
|
| 010 |
|
PAWL, PARK BRK LVR REL (*KIT1) |
|
2005-2006 |
|
| 011 |
|
БОЛТ, PARK BRK SHOE ADJR (PART OF 12, 13) (*KIT1) |
|
2005-2006 |
|
| 012 |
19138408 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 9, 11) (PART OF 13) (*KIT1) (ACDelco #18K1629) (DURASTOP) |
CK157 (06) (L59) |
2003-2006 |
01 |
| 012 |
19138408 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 9, 11) (PART OF 13) (*KIT1) (ACDelco #18K1629) (DURASTOP) |
CK157 (06) (LM7, LR4) |
2003-2006 |
01 |
| 012 |
19138408 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 9, 11) (PART OF 13) (*KIT1) (ACDelco #18K1629) (DURASTOP) |
K157 (06) (L59) |
2005-2005 |
01 |
| 012 |
19138408 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 9, 11) (PART OF 13) (*KIT1) (ACDelco #18K1629) (DURASTOP) |
K157 (06) (LM7) |
2005-2005 |
01 |
| 012 |
19138408 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 9, 11) (PART OF 13) (*KIT1) (ACDelco #18K1629) (DURASTOP) |
K157 (06) (LQ4, LQ9) |
2005-2006 |
01 |
| 012 |
88967124 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 9, 11) (PART OF 13) (*KIT1) (ACDelco #179-2099) (TWO CLIP POINTS FOR PARK BRAKE SHOE) (FOR 1ST DES SEE 89026789) |
CK1 (JH1, JH2) (2ND DES) |
2004-2005 |
01 |
| 012 |
88982879 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 9, 11) (PART OF 13) (*KIT1) (ACDelco #179-2049) (ONE CLIP POINT FOR PARK BRAKE SHOE) (FOR 2ND DES SEE 88967124) |
CK1 (JH1, JH2) (1ST DES) |
2004-2005 |
01 |
| 013 |
88967122 |
LINING KIT, PARK BRK SHOE (INCLS 11, 12) (*KIT1) (ACDelco #171-0892) (TWO CLIP POINTS FOR PARK BRAKE SHOE) (FOR 1ST DES SEE 89026787)
| K1 (06-36) (JH2) (2ND DES) |
2005-2006 |
02 |
|
| 013 |
89026787 |
LINING KIT, PARK BRK SHOE (INCLS 11, 12) (*KIT1) (ACDelco #171-0941) (ONE CLIP POINT FOR PARK BRAKE SHOE) (FOR 2ND DES SEE 88967122)
| K1 (06-36) (JH2) (1ST DES) |
2005-2006 |
02 |
|
| 014 |
19178788 |
BRAKE, PARK (INCLS 1-13, KIT 1) (USE ON VEHICLES WITH 2 CLIPPING POINT FOR BRAKE SHOE, FOR 1ST DESIGN SEE 25879189) |
K1 (06-36) (JH2) (2ND DES) |
2005-2005 |
02 |
| K01 |
88967123 |
BRAKE KIT, RR PARK (INCLS 2-5, 7, 8-13) (PART OF 14) (ACDelco #179-2059) (TWO CLIP POINTS FOR PARK BRAKE SHOE) (FOR 1ST DES SEE 89026788) |
CK1 (06-36) (JH2) (2ND DES) |
2005-2006 |
02 |
| K01 |
89026788 |
BRAKE KIT, RR PARK (INCLS 2-5, 7, 8-13) (PART OF 14) (ONE CLIP POINT FOR PARK BRAKE SHOE FOR 2ND DESIGN SEE 88967123)
| CK1 (06-36) (JH2) (1ST DES) |
2005-2006 |
02 |
|
