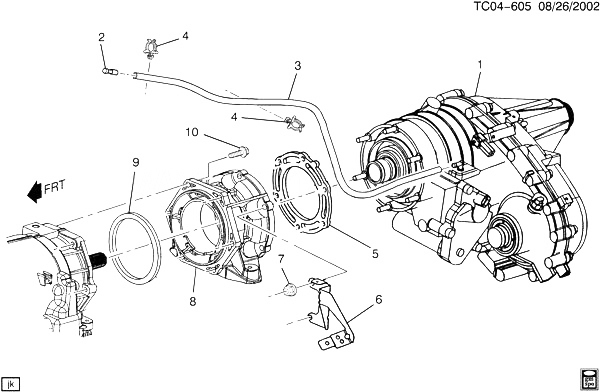

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24232826 |
CASE, TRFER (W/GEARS) (CODE CR, CL) |
K1 (M30, NR4) |
2005-2005 |
01 |
| 001 |
24232827 |
CASE, TRFER (W/GEARS) (CODE BV, CS, 9499) |
K1 (NR3) |
2005-2005 |
01 |
| 001 |
24232827 |
CASE, TRFER (W/GEARS) (CODE DB) |
K1 (NR3) |
2005-2006 |
01 |
| 002 |
15771000 |
VENT, A/TRNS (ACDelco #15771000)
| K1, 2, 3 (MN8, MT1, M30, M32, M33) |
2004-2005 |
01 |
|
| 003 |
09438315 |
HOSE, FUEL-OIL EVAP (TRFER CASE VENT) |
|
1999-2007 |
01 |
| 004 |
08905794 |
CLIP (TRANS VENT HOSE) |
|
1999-2007 |
02 |
| 005 |
24245110 |
ПРОКЛАДКА, TRFER CASE ADAP
| K1, 2, 3 |
2001-2007 |
01 |
|
| 006 |
15033698 |
BRACKET, FUEL FEED RTN PIPE |
K1 |
2005-2007 |
01 |
| 007 |
10255857 |
ГАЙКА, HFH, 10X1.5, 6H THD, 9.8THK, 21.3 O.D., 10, PZOR (8.917)
|
1999-2007 |
06 |
|
| 008 |
15724744 |
ADAPTER, TRFER CASE
| K1 (03-06-36) (M30, M32) |
2002-2006 |
01 |
|
| 009 |
15969051 |
SEAL, TRFER CASE ADAP (CASE TO ADAPT)
| K1 (M30, M32, M33) |
2004-2005 |
01 |
|
| 010 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (T/W 12345493)
|
1999-2007 |
06 |
|
