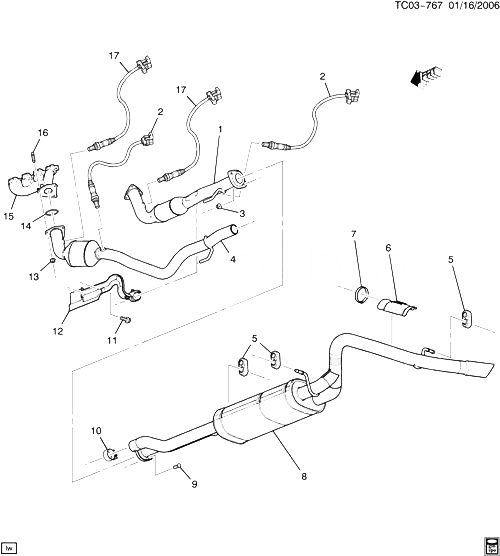

(TC03-767) - 2005-2006 K1(06) ВЫХЛОПНАЯ СИСТЕМА-V8 (LQ4/6.0U,LQ9/6.0N, CHASSIS EQUIPMENT ANU) CHEVROLET TAHOE LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10395213 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) K1 (06-36-53) (LQ4, LQ9) 2005-2006 01
002 19210711 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) K1 (03-06-36-53) (LQ4, LQ9, LU3, LR4) 2005-2005 02
003 15709703 ГАЙКА, EXH MUFF (HEX 10X1.5 THD) (NON-LUBRICATED) (8.915) K1, 2, 3 2005-2006 AR
004 10395214 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) K1 (06-36-53) (LQ4, LQ9) 2005-2006 01
004 10395214 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) K1 (06-36-53) (LQ4, LQ9) 2005-2006 01
005 15092802 INSULATOR, EXH MUFF HNGR K1, 2, 3 2005-2006 04
006 10382566 SHIELD, EXH TAIL PIPE HT (PART OF 8) K157 (06) (LQ4, LQ9, ANU, Y91) 2005-2006 01
007 10391259 STRAP, EXH MUFF H/SHLD (PART OF 8) K1 (06) (LQ4, LQ9, ANU, Y91) 2005-2006 02
008 15208740 MUFFLER, EXH (W/EXH PIPE TAIL PIPE) (INCLS 6, 7, 9, 10) K157 (06) (LQ4, LQ9, ANU, Y91) 2005-2006 01
009 15028620 STUD, EXH PIPE (PART OF 8) (M10X1.5X30MM) (BUTTON HEAD) K1 (06-36-53) (LQ4, LQ9) 2005-2006 02
010 15103174 CLAMP, EXH PIPE (PART OF 8) (STAMPED 2.5) (63.5MM) K157 (06) (LQ4, LQ9, ANU, Y91) 2005-2006 01
011 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (EXH PIPE HNGR BRKT) (T/W 12345493 REPLCS 25534835) 2005-2006 02
012 15860242 BRACKET, EXH PIPE HNGR K1 (M32) 2005-2005 01
013 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE) 2005-2006 06
014 15077362 SEAL, EXH MANIF PIPE K1, 2, 3 (LQ4, LQ9, L18, L31) 2005-2006 02
015 КОЛЛЕКТОР, ВЫПУСКНОЙ (СМ. ГРУППУ 03.000 EXHAUST MANIFOLD FOR DETAILED ILLUSTRATED VIEW) 2005-2006
016 11589264 STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE) 2005-2006 06
017 12572705 ДАТЧИК, HTD OXY (POSN 2) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-1161) K1, 2, 3 (LQ4, LQ9, L18) 2005-2006 02
