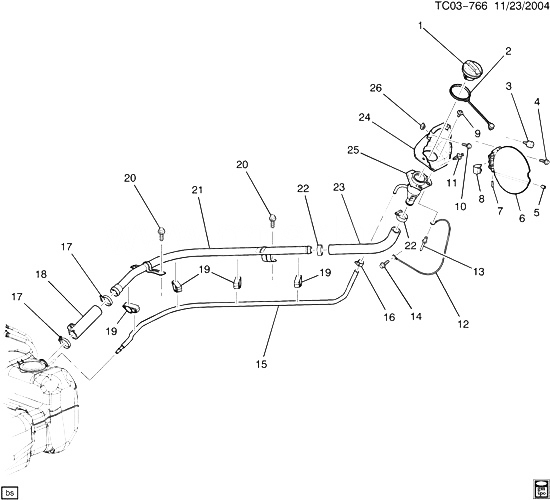

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15225006 |
CAP, F/TNK FIL (INCLS 2) (T-TYPE TETHER) (ACDelco #15225006) (FOR VEH BUILT PRIOR TO 3/31/05, MUST ALSO ORDER HOUSING 15289921) |
CK1, 2, 359 (LU3, L18, L33, L59) (EXC N05) |
2005-2005 |
01 |
| 001 |
25820825 |
CAP, F/TNK FIL (INCLS 2) (BUTTON TYPE TETHER) (ACDelco #GT289) |
CK1, 2, 359 (L59) (EXC N05) |
2005-2006 |
01 |
| 001 |
25862765 |
CAP, F/TNK FIL (W/2 KEYS, W/O TETHER) (INCLS 2) (0.1KGS) (ACDelco #GT264)
| CK1, 2, 359 (L59, N05) |
2005-2006 |
01 |
|
| 002 |
|
RETAINER, F/TNK FIL CAP STRP (PUSH IN) (PART OF 1) |
|
2005-2006 |
|
| 003 |
15283098 |
BUMPER, F/TNK FIL DR
| CK1, 2 (E63) (EXC NYS) |
2005-2005 |
02 |
|
| 003 |
15283098 |
BUMPER, F/TNK FIL DR
| CK1, 2 (06-36) |
2005-2006 |
02 |
|
| 004 |
11517230 |
БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (F/TNK FIL DR)
|
2005-2006 |
02 |
|
| 005 |
14033569 |
HOSE, BULK, 7/64X25, GM6148 (PART OF 6) |
|
2005-2006 |
AR |
| 006 |
15124078 |
DOOR, F/TNK FIL (INCLS 5, 7, 8) |
CK1, 2 (06) |
2005-2006 |
01 |
| 007 |
15521574 |
PIN, F/TNK FIL DR HGE (PART OF 6) (12.945) |
CK1, 2, 3 |
2005-2006 |
02 |
| 008 |
15521575 |
ПРУЖИНА, F/TNK FIL DR (PART OF 6) |
CK1, 2 (06) |
2005-2006 |
01 |
| 009 |
15714277 |
SCREW, W/WA AND SLR, M4.2X1.41X13, 5.4THD, 12.5 O.D., SELF TAP, ZC (PART OF 25) |
|
2005-2006 |
03 |
| 010 |
15953840 |
SCREW, PAN HD TORX W/CON WA M6X1X25 AC PT 9.8 PC 12.5-OD (F/TNK FIL PIPE HSG) (3.003) |
|
2005-2006 |
02 |
| 011 |
11561878 |
RETAINER, F/TNK FIL PIPE HSG (FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL) (8.940)
| CK1 (06-36) |
2005-2005 |
01 |
|
| 012 |
15217509 |
STRAP, F/TNK FIL PIPE GND (PART OF 25) |
CK157 (06) |
2005-2006 |
01 |
| 013 |
|
RIVET, F/TNK FIL PIPE GND STRP (PART OF 25) |
|
2005-2006 |
|
| 014 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND)
|
2005-2006 |
01 |
|
| 015 |
10390312 |
HOSE, EVAP EMIS (PART OF 25) (PART OF PIPE ASM) |
CK157 (06) (L59) |
2005-2006 |
01 |
| 016 |
15206310 |
CLAMP, EVAP EMIS HOSE (PART OF 25) (20.57-44.45 MM DIA) (3.003) |
CK157 (06) |
2005-2006 |
01 |
| 017 |
12338017 |
CLAMP, WORM GEAR, 28.6-76.2, STAINLESS STEEL (PART OF 18, 25) (ACDelco #12338017) |
|
2005-2006 |
01 |
| 019 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 25) |
|
2005-2006 |
02 |
| 020 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (PART OF 25) |
|
2005-2006 |
02 |
| 021 |
10367275 |
PIPE, F/TNK FIL (PART OF 25) |
CK157 (06-36) (L59) |
2005-2006 |
01 |
| 022 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 25) (ACDelco #1470030) |
|
2005-2006 |
02 |
| 023 |
15088336 |
HOSE, F/TNK FIL (PART OF 25) (UPR FILLER PIPE HOSE) |
CK157 (06) (LM7, LQ4, LQ9, LR4, L59) |
2005-2006 |
01 |
| 024 |
|
HOUSING, F/TNK FIL PIPE (PART OF 25) |
|
2005-2006 |
|
| 025 |
15289912 |
PIPE, F/TNK FIL (INCLS 9, 12, 13, 15-24, 26) |
CK157 (06) (L59) |
2005-2006 |
01 |
| 026 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 25)
|
2005-2006 |
02 |
|
