| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

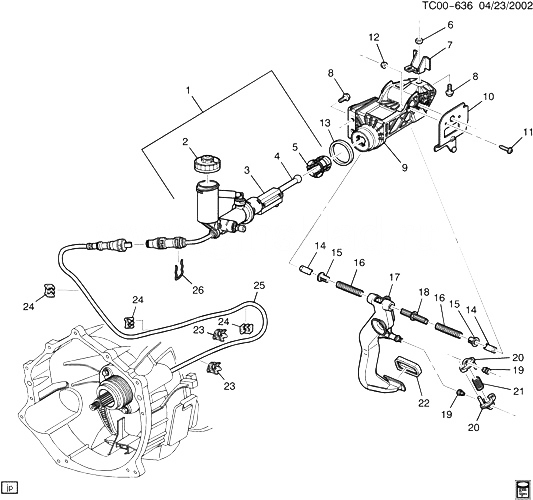

| 004 |
|
PUSHROD, CLU MASTER CYL (PART OF 1) |
|
2001-2006 |
|
| 006 |
|
ГАЙКА, BRK PED BRKT (PART OF 7) |
|
2001-2006 |
|
| 007 |
15713209 |
BRACKET, CLU PED (INCLS 6) (L=45 W=80 H=80) (DASH PANEL) |
CK1 (LU3) |
2003-2006 |
01 |
| 007 |
15713209 |
BRACKET, CLU PED (INCLS 6) (L=45 W=80 H=80) (DASH PANEL) |
CK1, 2, 3 (LQ4, LR4, LLY, L18, L31) |
2005-2006 |
01 |
| 008 |
11517182 |
БОЛТ, CLU PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 (MG5, ML6, MW3, M96, TZ0) |
2003-2006 |
03 |
| 009 |
|
BRACKET, CLU PED (PART OF 17) |
|
2001-2006 |
|
| 010 |
|
BRACKET, CLU PED RTN SPR (PART OF 17) |
|
2001-2006 |
|
| 011 |
11516887 |
BOLT/SCREW, RD WA HD, 6 LOBED, M6X1X25, 17 OD, 6138M, MACH, P-PT, TORX DR (PART OF 17) |
|
2001-2006 |
02 |
| 012 |
11516793 |
ГАЙКА, HEX, W/CON WA, M6X1X5.5, 16 O.D., 9, 7111M (PART OF 17) |
|
2001-2006 |
02 |
| 013 |
|
SEAL, CLU PED BRKT (PART OF 17) |
|
2001-2006 |
|
| 023 |
|
CLIP, CLU ACTR CYL (PART OF 25) |
|
2001-2006 |
|
| 024 |
|
CLIP, CLU ACTR CYL (PART OF 25) |
|
2001-2006 |
|
