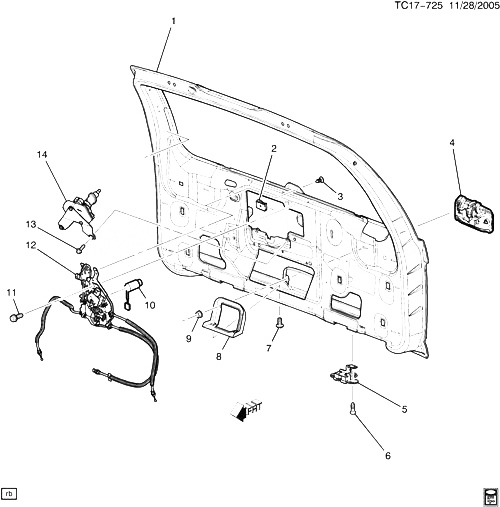

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15201297 |
GATE, LIFT (ALUMINUM) (WHEN REPL STEEL LIFT GATE W/ALUMINUM, NEW STRUTS WILL BE NEEDED, 15147255 15147256)
| CK1, 2 (06) (E52) |
2003-2006 |
01 |
|
| 002 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (L/GATE O/S HDL) |
|
2000-2006 |
02 |
| 003 |
15120856 |
RETAINER, L/GATE WDO UPR G/MLDG (BLACK) (8.141)
| CK1, 2 (06) (E52) |
2000-2006 |
02 |
|
| 004 |
15093919 |
HANDLE, L/GATE O/S (GRAY) |
CK1, 2 (06) (E52, SLT, X88, 62U) (EXC P96) |
2006-2006 |
01 |
| 004 |
15136047 |
HANDLE, L/GATE O/S (CASHMERE)
| CK1, 2 (06) (E52, SLT, X88, 15U) (EXC P96) |
2006-2006 |
01 |
|
| 004 |
15136049 |
HANDLE, L/GATE O/S (BLUE) |
CK1, 2 (06) (BPH, E52, X88, 26U) |
2006-2006 |
01 |
| 004 |
15136049 |
HANDLE, L/GATE O/S (BLUE) |
CK1, 2 (06) (E52, SLT, X88, 26U) (EXC P96) |
2006-2006 |
01 |
| 004 |
15196404 |
HANDLE, L/GATE O/S (BLUE) |
CK1 (06) (E52, P96, X88, 25U) |
2003-2006 |
01 |
| 004 |
15196404 |
HANDLE, L/GATE O/S (BLUE) |
CK1 (06) (E52, SLT, X88, 25U) (EXC P96) |
2003-2006 |
01 |
| 004 |
15196405 |
HANDLE, L/GATE O/S (BIRCH) |
CK1 (06) (E52, P96, X88, 59U) (EXPORT) |
2003-2006 |
01 |
| 004 |
15196405 |
HANDLE, L/GATE O/S (BIRCH) |
CK1 (06) (E52, SLT, X88, 59U) (EXC P96) |
2003-2006 |
01 |
| 004 |
15196405 |
HANDLE, L/GATE O/S (BIRCH) |
CK1, 2 (06) (BPH, E52, X88, 59U) |
2004-2006 |
01 |
| 004 |
15196406 |
HANDLE, L/GATE O/S (RED) |
CK1, 2 (06) (BPH, E52, X88, 63U) |
2006-2006 |
01 |
| 004 |
15196406 |
HANDLE, L/GATE O/S (RED) |
CK1, 2 (06) (E52, SLT, X88, 63U) (EXC P96) |
2006-2006 |
01 |
| 004 |
15750907 |
HANDLE, L/GATE O/S (WHITE) |
CK1, 2 (06) (E52, X88, Z88, 50U) |
2000-2006 |
01 |
| 004 |
15750911 |
HANDLE, L/GATE O/S (BLACK)
| CK1, 2 (06) (BPH, E52, X88, 41U) |
2006-2006 |
01 |
|
| 004 |
15750911 |
HANDLE, L/GATE O/S (BLACK)
| CK1, 2 (06) (E52, SLT, X88, 01U, 41U) (EXC P96) |
2006-2006 |
01 |
|
| 004 |
15750914 |
HANDLE, L/GATE O/S (MOLDED BLACK GRAIN) |
CK1, 2 (06) (E52, X88) (EXC BPH, P96, SLT) |
2005-2006 |
01 |
| 005 |
15926026 |
LATCH, L/GATE (INCLS AJAR SWITCH) |
CK1, 2 (06) (E52) |
2000-2006 |
02 |
| 006 |
15157917 |
БОЛТ, L/GATE LAT (M8X1.25X30) |
CK1, 2 (06) (E52) |
2000-2006 |
04 |
| 007 |
11519881 |
SCREW, ROUNDWA W/FL WA, M6X1X20, 9.5THD, 25.4OD, 9.8, 6280M, MACH, TORX, P-PT (L/GATE O/S HDL BRKT) (8.906) |
|
2000-2006 |
02 |
| 008 |
15150135 |
BRACKET, L/GATE O/S HDL |
CK1, 2 (06) (E52) |
2000-2006 |
01 |
| 009 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (L/GATE O/S HDL)
|
2000-2006 |
02 |
|
| 010 |
|
CYLINDER, E/GATE LK (СМ. ГРУППУ 16.000 LOCK-LIFTGATE FOR DETAILED ILLUSTRATED VIEW) |
|
2000-2006 |
|
| 011 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE
|
2000-2006 |
02 |
|
| 012 |
15808595 |
LATCH, L/GATE WDO (INCLS AJAR SWITCH ACTUATOR)
| CK1, 2 (06) (E52) |
2000-2006 |
01 |
|
| 013 |
|
БОЛТ, R/WDO WPR MOT (PART OF 14) |
|
2000-2006 |
|
| 014 |
15173034 |
MOTOR, R/WDO WPR (INCLS 13) (ACDelco #15173034)
| CK1, 2 (06) (C25) |
2001-2006 |
01 |
|
