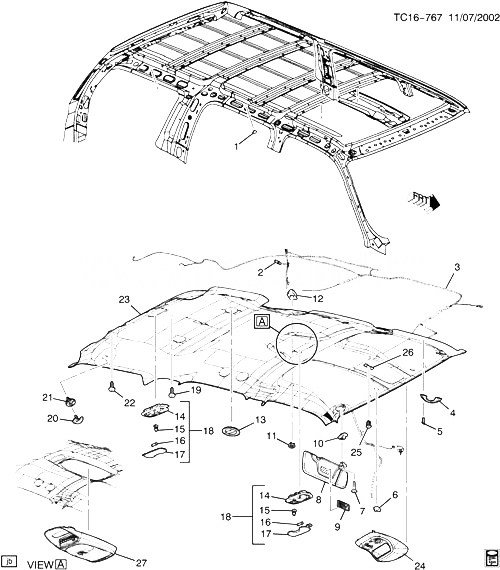

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15763887 |
RETAINER, HDLNG T/PNL (DUAL LOCK) (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) |
CK157 (06) |
2003-2006 |
AR |
| 002 |
12160947 |
ДАТЧИК, DUCT AIR TEMP (37.54MM) (PART OF 3) (ACDelco #15-5632)
| CK1, 2, 3 |
2003-2006 |
01 |
|
| 003 |
|
HARNESS, RF ACSRY WRG (СМ. ГРУППУ 02.000 WIRING HARNESS FOR DETAILED ILLUSTRATED VIEW (PART OF 23) (INCLS 2) |
|
2003-2006 |
|
| 004 |
15044366 |
HANDLE, ASST (PART OF 23) (SHALE) (INCLUDES RETAINER) |
CK1 (06) (15I) |
2003-2006 |
01 |
| 004 |
15044366 |
HANDLE, ASST (PART OF 23) (SHALE) (INCLUDES RETAINER) |
CK1 (06-36) (52I, 92I) |
2004-2006 |
01 |
| 005 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (ASST HDL (PUSH ON)) |
|
2003-2006 |
02 |
| 006 |
|
RETAINER, S/S (PART OF 23) |
|
2003-2006 |
|
| 007 |
11516440 |
SCREW (PART OF 8) |
|
2003-2006 |
04 |
| 008 |
15282714 |
SUNSHADE, (INCLS 7, 9, 10) (SHALE) |
CK1, 2 (06) (DH6, 15I) (EXC ULT) |
2006-2006 |
01 |
| 008 |
15282714 |
SUNSHADE, (INCLS 7, 9, 10) (SHALE) |
CK1, 2 (06) (DH6, 52I) |
2006-2006 |
01 |
| 008 |
15282714 |
SUNSHADE, (INCLS 7, 9, 10) (SHALE) |
CK1, 2 (06) (DH6, X88, Z88, 92I) |
2006-2006 |
01 |
| 008 |
15282717 |
SUNSHADE, (INCLS 7, 9, 10) (SHALE) |
CK1, 2 (06) (DH6, 15I) (EXC ULT) |
2006-2006 |
01 |
| 008 |
15282717 |
SUNSHADE, (INCLS 7, 9, 10) (SHALE) |
CK1, 2 (06) (DH6, 52I) |
2006-2006 |
01 |
| 008 |
15282717 |
SUNSHADE, (INCLS 7, 9, 10) (SHALE) |
CK1, 2 (06) (DH6, X88, Z88, 92I) |
2006-2006 |
01 |
| 009 |
|
LABEL, INFL RST SYS MDL WRNG (PART OF 8) |
|
2003-2006 |
|
| 010 |
|
COVER, S/S SUPT BOLT (PART OF 8) |
|
2003-2006 |
|
| 011 |
15029309 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 23) (GRAPHITE) |
CK1 (06-36) (92I) |
2006-2006 |
01 |
| 011 |
15044378 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 23) (SHALE) |
CK1, 2, 3 (15I, 52I, 69I, 92I) |
2003-2006 |
02 |
| 012 |
25903301 |
ASPIRATOR, I/S AIR TEMP SEN (PART OF 23) (ACDelco #15-51256)
| CK1, 2 (06) |
2003-2006 |
02 |
|
| 013 |
15124270 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 23) (PEWTER) |
CK1, 2 (06) (92I) |
2003-2006 |
AR |
| 013 |
15124271 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 23) (SHALE) |
CK1, 2 (06) (15I, 52I) |
2003-2006 |
AR |
| 013 |
15124271 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 23) (SHALE) |
CK1, 2 (06) (X88, Z88, 92I) |
2003-2006 |
AR |
| 014 |
15032587 |
HOUSING, DM RDG LP (PART OF 18) (INCLS 16) |
CK1, 2, 3 |
2003-2006 |
01 |
| 015 |
15166059 |
PUSHBUTTON, RDG LP SW (PART OF 18) (EBONY) |
CK1, 2, 3 |
2003-2006 |
02 |
| 016 |
12450074 |
BULB, TRADE #578 (PART OF 14) (ACDelco #578)
|
2003-2006 |
03 |
|
| 017 |
15032588 |
LENS, DM RDG LP (PART OF 18) (3 BULB STYLE) |
CK1, 2, 3 |
2003-2006 |
01 |
| 019 |
15206648 |
RETAINER, HDLNG T/PNL (SHALE) (LONG PUSH PIN) (LENGTH 47.5MM)
| CK157 (06) (92I, 15I, 52I, 69I) |
2003-2006 |
02 |
|
| 021 |
15603591 |
RETAINER, COAT HOOK (PUSH IN) (PART OF 20) (16.585) |
CK1, 2 (06) |
2003-2006 |
01 |
| 022 |
15111580 |
RETAINER, HDLNG T/PNL (PART OF 23) (SHALE) (SHORT PUSH PIN) (28.8MM LENGTH) |
CK157 (06) (YE9, 15I, 52I) |
2003-2006 |
01 |
| 022 |
15111580 |
RETAINER, HDLNG T/PNL (PART OF 23) (SHALE) (SHORT PUSH PIN) (28.8MM LENGTH) |
CK157 (06) (YE9, 92I) (EXC Y91) |
2003-2006 |
01 |
| 023 |
15787427 |
PANEL, HDLNG TR (INCLS 3, 4, 6, 11-13, 18, 20, 22, 25, 26) (SHALE) (DEALER MAY NEED TO REPLACE DUAL VISORS W/SINGLE BLADE VISOR RETAINERS) |
CK157 (06) (CJ2, C36, DK7, X88, 52I, 92I) (EXC U42) |
2003-2006 |
01 |
| 023 |
15787430 |
PANEL, HDLNG TR (INCLS 3, 4, 6, 11-13, 18, 20, 22, 25, 26) (SHALE)
| CK157 (06) (CJ2, C36, DK7, U42, X88, 52I, 92I) |
2003-2006 |
01 |
|
| 024 |
|
CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 025 |
|
PLUG, S/S MT HOLE (PART OF 23) |
|
2004-2006 |
|
| 026 |
|
RETAINER, S/S PLUG) (PART OF 23) |
|
2003-2006 |
|
| 027 |
|
CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
