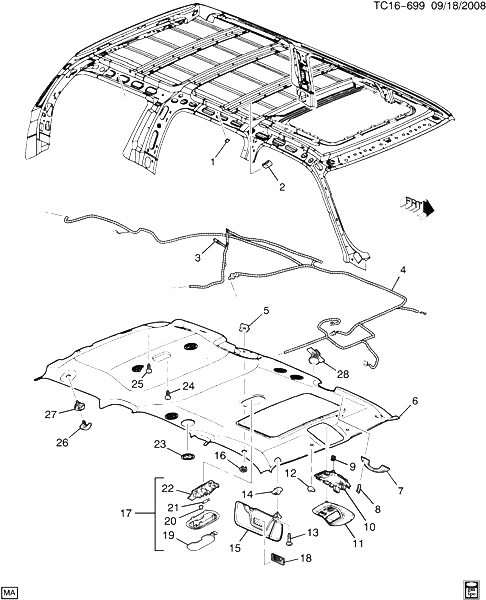

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15763887 |
RETAINER, HDLNG T/PNL (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) |
CK157 (06) (CF5) (EXC U42) |
2005-2006 |
02 |
| 002 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (I/P DRVR KNEE BOLS REINF) |
|
2000-2006 |
13 |
| 003 |
12160947 |
ДАТЧИК, DUCT AIR TEMP (37.54MM) (PART OF 4) (ACDelco #15-5632)
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 004 |
15143657 |
HARNESS, RF ACSRY WRG (INCLS 3) |
CK157 (06) (CF5, CJ2, C36, DK8) (EXC U42) |
2003-2006 |
01 |
| 004 |
15143668 |
HARNESS, RF ACSRY WRG (INCLS 3) |
CK157 (06) (CF5, CJ2, C36, DK8, U42) |
2003-2006 |
01 |
| 005 |
25903301 |
ASPIRATOR, I/S AIR TEMP SEN (PART OF 6) (ACDelco #15-51256)
| CK1, 2 (06) |
2003-2006 |
02 |
|
| 006 |
15787433 |
PANEL, HDLNG TR (INCLS 5, 7, 8, 12, 17, 19-23, 26, 27) (SHALE)
| CK157 (06) (CF5, CJ2, C36, X88, 52I, 92I) (EXC U42) |
2005-2006 |
01 |
|
| 006 |
15787436 |
PANEL, HDLNG TR (INCLS 5, 7, 8, 12, 17, 19-23, 26, 27) (SHALE)
| CK157 (06) (CF5, CJ2, C36, U42, X88, 52I, 92I) |
2004-2006 |
01 |
|
| 007 |
15048750 |
HANDLE, ASST (PART OF 6) (INCLS 8) (PEWTER) (FRT PASS SIDE) (INCLUDES RETAINERS) |
CK157 (06) (92I) |
2001-2006 |
01 |
| 008 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 6, 7) |
|
2000-2006 |
01 |
| 009 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10)
|
2000-2006 |
02 |
|
| 010 |
10382915 |
RETAINER, RF CNSL (PUSH IN) (INCLS 9) |
CK1, 2 (06) (CF5, DK8) |
2000-2006 |
01 |
| 011 |
|
CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2000-2006 |
|
| 012 |
15186286 |
RETAINER, S/S (PART OF 6) (SHALE) (OPENING FACES AWAY FROM FASTENER) |
CK1, 2 (06) (69I) |
2004-2006 |
02 |
| 013 |
11516440 |
SCREW (PART OF 15) |
|
2000-2006 |
06 |
| 014 |
|
COVER, S/S SUPT BOLT (PART OF 15) |
|
2000-2006 |
|
| 015 |
15282714 |
SUNSHADE, (INCLS 13, 14, 18) (SHALE) |
CK1, 2 (06) (DH6, 15I) (EXC ULT) |
2006-2006 |
01 |
| 015 |
15282714 |
SUNSHADE, (INCLS 13, 14, 18) (SHALE) |
CK1, 2 (06) (DH6, 52I) |
2006-2006 |
01 |
| 015 |
15282714 |
SUNSHADE, (INCLS 13, 14, 18) (SHALE) |
CK1, 2 (06) (DH6, X88, Z88, 92I) |
2006-2006 |
01 |
| 015 |
15282717 |
SUNSHADE, (INCLS 13, 14, 18) (SHALE) |
CK1, 2 (06) (DH6, 15I) (EXC ULT) |
2006-2006 |
01 |
| 015 |
15282717 |
SUNSHADE, (INCLS 13, 14, 18) (SHALE) |
CK1, 2 (06) (DH6, 52I) |
2006-2006 |
01 |
| 015 |
15282717 |
SUNSHADE, (INCLS 13, 14, 18) (SHALE) |
CK1, 2 (06) (DH6, X88, Z88, 92I) |
2006-2006 |
01 |
| 016 |
15029309 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (GRAPHITE) |
CK1 (06-36) (92I) |
2006-2006 |
01 |
| 016 |
15044378 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (SHALE) |
CK1, 2, 3 (15I, 52I, 69I, 92I) |
2003-2006 |
02 |
| 018 |
|
LABEL, INFL RST SYS MDL WRNG (PART OF 15) |
|
2000-2006 |
|
| 019 |
15032588 |
LENS, DM RDG LP (PART OF 6, 17) (3 BULB STYLE) |
CK1, 2, 3 |
2001-2006 |
01 |
| 020 |
15166059 |
PUSHBUTTON, RDG LP SW (PART OF 6, 17) (EBONY) |
CK1, 2, 3 |
2001-2006 |
02 |
| 021 |
12450074 |
BULB, TRADE #578 (PART OF 6, 17, 22) (ACDelco #578)
|
2000-2006 |
03 |
|
| 022 |
15032587 |
HOUSING, DM RDG LP (PART OF 6, 17) (INCLS 21) |
CK1, 2, 3 |
2001-2006 |
01 |
| 023 |
15124270 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 6) (PEWTER) |
CK1, 2 (06) (92I) |
2002-2006 |
AR |
| 023 |
15124271 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 6) (SHALE) |
CK1, 2 (06) (15I, 52I) |
2002-2006 |
AR |
| 023 |
15124271 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 6) (SHALE) |
CK1, 2 (06) (X88, Z88, 92I) |
2002-2006 |
AR |
| 024 |
|
RETAINER, HDLNG T/PNL |
|
2006-2006 |
|
| 025 |
15768222 |
RETAINER, HDLNG FRT T/PNL (PUSH IN) (BLACK)
| CK1, 2 (06) (CF5) |
2000-2006 |
02 |
|
| 027 |
15603591 |
RETAINER, COAT HOOK (PUSH IN) (PART OF 6, 26) (16.585) |
CK1, 2 (06) |
2000-2006 |
01 |
