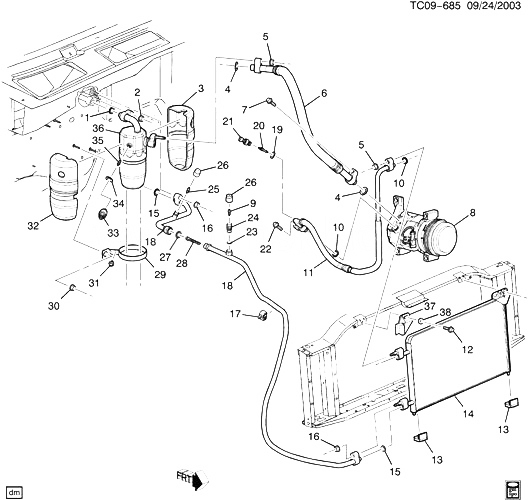

(TC09-685) - 2003-2006 CK1,2(06) СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА/ПЕРЕДНИЙ (EXC (C69)) CHEVROLET TAHOE LT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 02724966 SEAL, A/C CMPR CNDSR HOSE (25MM OD X 17MM ID) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) CK1, 2, 3 2003-2006 AR
002 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C ACCUM RET) (8.915) (ACDelco #11514596) 2003-2006 01
004 02724966 SEAL, A/C CMPR CNDSR HOSE (25MM OD X 17MM ID (PART OF 6) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) CK1, 2, 3 2003-2006 01
005 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) 2003-2006 02
006 15134461 HOSE, A/C ACCUM (432 X 455 X 424) (INCLS 4) (ACDelco #15-32612) (W/TUBE DIA OF 13 MM AT THE ORIFICE, FOR 2ND DES SEE 89024915) CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L18, L59, CJ2, CJ3) (EXC C69) (1ST DES) 2006-2006 01
006 15200863 HOSE, A/C ACCUM (432 X 455 X 424) (INCLS 4) (ACDelco #15-33408) (17MM TUBE DIA AT THE ORIFICE, FOR 1ST DES SEE 15134461) CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L18, L59, CJ2, CJ3) (EXC C69) (2ND DES) 2006-2006 01
007 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (A/C ACCUM HOSE) 2003-2006 01
008 89024881 COMPRESSOR, A/C (СМ. ГРУППУ 9.000 КОМПРЕССОР КОНДИЦИОНЕРА В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) (ACDelco #89024881) CK1, 2, 3 (LBZ, CJ2, CJ3) (EXC YF2) 2006-2006 01
009 03041827 VALVE, A/C REFRIG PRESS SEN (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 18) (9.177) (ACDelco #15-1119) CK1, 2, 3 2003-2006 01
010 52474373 SEAL, A/C EVPR FTG (O RING) (PART OF 11) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) CK1, 2, 3 2003-2006 01
011 25975794 HOSE, A/C CNDSR (INCLS 10, 19-21) (ACDelco #15-33411) CK1 (06-36) (LM7, LQ4, LR4, L59, CJ2, CJ3) (EXC C69) 2006-2006 01
012 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (A/C CNDSR BRKT) 2003-2006 02
013 15044225 INSULATOR, A/C CNDSR (LOWER) (ACDelco #15-63283) CK1, 2, 3 2003-2006 02
013 52476687 INSULATOR, A/C CNDSR (UPPER) (6.602) CK1, 2, 3 2003-2006 02
014 25967385 CONDENSER, A/C (INCLS 37, 38) (ACDelco #15-63666) CK1, 2, 3 (CJ2, CJ3) 2006-2006 01
015 52474373 SEAL, A/C EVPR FTG (O RING) (PART OF 18) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) CK1, 2, 3 2003-2006 01
016 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) 2003-2006 02
017 15734255 CLIP, A/C EVPR TUBE (PART OF 18) CK1, 2, 3 2003-2006 01
018 15785056 TUBE, A/C EVPR (INCLS 9, 15, 17, 23-28) (2 PORTS) (ACDelco #15-33436) CK1, 2 (06-36) (L59, CJ2, CJ3) (EXC HP2, C69) 2006-2006 01
019 03093509 O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (PART OF 11) (ACDelco #3093509) 2003-2006 01
020 03041827 VALVE, A/C REFRIG PRESS SEN (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 11) (9.177) (ACDelco #15-1119) CK1, 2, 3 2003-2006 01
021 13502758 ДАТЧИК, A/C REFRIG PRESS (PART OF 11) (ACDelco #15-51257) CK1, 2, 3 2003-2006 01
021 13502759 ДАТЧИК, A/C REFRIG PRESS (PART OF 11) (ACDelco #15-51258) CK1, 2, 3 2003-2006 01
022 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (A/C CNDSR HOSE) 2003-2006 01
023 52458183 SEAL, A/C EVPR FTG (O RING) (I.D. 9.25MM) (PART OF 18) (BLACK) (RUBBER) (ACDelco #15-30572) CK1, 2, 3 2003-2006 01
024 FITTING, A/C EVPR TUBE (PART OF 18) 2003-2006
025 03041827 CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 18) (ACDelco #15-1119) CK1, 2, 3 2003-2006 01
026 52458768 CAP, A/C REFRIG CHRG VLV (HIGH SIDE CHARGE PORT) (PART OF 18) (16.6MM I.S. DIA) (WITH SEAL) (ACDelco #15-33289) CK1, 2, 3 2003-2006 02
027 03094214 O-RING, ID .426X.070 THK, MATERIAL-NEOPRENE (PART OF 18) (ACDelco #15-3614) 2003-2006 01
028 03096068 ORIFICE, A/C CNDSR (PART OF 18) (ACDelco #15-5378) (W/TUBE DIA OF 13 MM AT THE ORIFICE, FOR 2ND DES SEE 15784601) CK1, 2, 3 (1ST DES) 2003-2006 01
028 15784601 ORIFICE, A/C CNDSR (PART OF 18) (ACDelco #15-33410) (W/TUBE DIA OF 17 MM AT THE ORIFICE, FOR 1ST DES SEE 03096068) CK1, 2, 3 (2ND DES) 2003-2006 01
029 15194317 BRACKET, A/C ACCUM CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L33, L59, CJ2, CJ3) 2005-2006 01
030 11588331 ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (A/C ACCUM BRKT) 2003-2006 01
031 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (A/C ACCUM BRKT) 2003-2006 01
033 15144494 SWITCH, A/C CYCLING (ACDelco #15-50618) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, CJ2, CJ3) (EXC HP2, C69) 2006-2006 01
033 15144494 SWITCH, A/C CYCLING (9.172) (ACDelco #15-50618) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, CJ2, CJ3) (EXC HP2, C69) 2006-2006 01
034 SEAL, A/C CYCLING SW (O RING) (PART OF 36) 2003-2006
035 VALVE, A/C ACCUM) (PART OF 36) 2003-2006
036 15827280 ACCUMULATOR, A/C (INCLS 34, 35) (ACDelco #15-10639) (W/NUT THAT RETAINS HOSE ON DRIVER SIDE, FOR 1ST DES SEE 89018423) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, CJ2, CJ3) (EXC C69, HP2) (2ND DES) 2006-2006 01
037 52481715 BRACKET, A/C CNDSR UPR (INLET/OUTLET) (INCLS 38) (PART OF 14) (114.5MM LONG) CK1, 2, 3 (CJ2, CJ3) (EXC C69, YF2) 2003-2006 01
037 52481716 BRACKET, A/C CNDSR UPR (RETURN) (INCLS 38) (PART OF 14) (114.5MM LONG) CK1, 2, 3 (CJ2, CJ3) (EXC C69, YF2) 2003-2006 01
038 INSULATOR, A/C CNDSR (UPR) (PART OF 14, 37) 2003-2006
