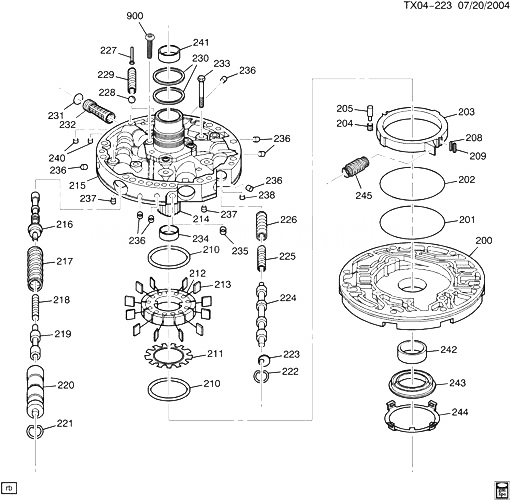

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 200 |
24243749 |
BODY KIT, A/TRNS FLUID PUMP (INCLS 201-213, 242-244) (ACDelco #24243749)
| CK1 (M30, M32, M33) |
2005-2007 |
01 |
|
| 201 |
|
RING, A/TRNS FLUID PUMP SLIDE FLUID SEAL (PART OF 200, 212) (*KIT1, KIT2) |
|
2004-2007 |
|
| 202 |
|
SEAL, A/TRNS O/PMP SLIDE (O RING) (PART OF 200, 212) (*KIT2) |
|
2004-2007 |
|
| 203 |
24212478 |
SLIDE, A/TRNS FLUID PUMP (PART OF 200) (17.9545MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212478) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DIMPLES AS A SET) |
CK1 (M33) |
2004-2007 |
01 |
| 203 |
24212479 |
SLIDE, A/TRNS FLUID PUMP (PART OF 200) (17.9675MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212479) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DIMPLES AS A SET) |
CK1 (M33) |
2004-2007 |
01 |
| 203 |
24212480 |
SLIDE, A/TRNS FLUID PUMP (PART OF 200) (17.9805MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212480) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DIMPLES AS A SET) |
CK1 (M33) |
2004-2007 |
01 |
| 203 |
24212481 |
SLIDE, A/TRNS FLUID PUMP (PART OF 200) (17.9935MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212481) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DIMPLES AS A SET) |
CK1 (M33) |
2004-2007 |
01 |
| 203 |
24212482 |
SLIDE, A/TRNS FLUID PUMP (PART OF 200) (18.0065MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212482) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DIMPLES AS A SET) |
CK1 (M33) |
2004-2007 |
01 |
| 204 |
08634098 |
ПРУЖИНА, A/TRNS FLUID PUMP SLIDE PIV PIN (PART OF 200) (ACDelco #8634098) |
CK1 (M33) |
2004-2007 |
01 |
| 205 |
08634097 |
PIN, A/TRNS FLUID PUMP SLIDE PIV (PART OF 200) (ACDelco #8634097) |
CK1 (M33) |
2004-2007 |
01 |
| 208 |
|
SUPPORT, A/TRNS FLUID PUMP SLIDE SEAL (PART OF 200, 212) (*KIT2) |
|
2004-2007 |
|
| 209 |
|
SEAL, A/TRNS FLUID PUMP SLIDE (PART OF 200, 212) (*KIT2) |
|
2004-2007 |
|
| 210 |
24201144 |
RING, A/TRNS FLUID PUMP VANE (PART OF 200) (ACDelco #24201144) |
CK1 (M33) |
2004-2007 |
02 |
| 211 |
24205410 |
GUIDE, A/TRNS FLUID PUMP ROT (PART OF 200, 212) (13 VANE) (ACDelco #24205410) |
CK1 (M33) |
2004-2007 |
01 |
| 212 |
24219538 |
ROTOR PKG, A/TRNS FLUID PUMP (PART OF 200) (INCLS 201, 202, 208, 209, 211, 213) (17.948MM) (13 VANE) (ROTOR ID MARK = 2 DIMPLES) (ACDelco #24219538) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DIMPLES A |
CK1 (M33) |
2004-2007 |
01 |
| 212 |
24219539 |
ROTOR PKG, A/TRNS FLUID PUMP (PART OF 200) (INCLS 201, 202, 208, 209, 211, 213) (17.961MM) (13 VANE) (ROTOR ID MARK = 2 DIMPLES) (ACDelco #24219539) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DIMPLES A |
CK1 (M33) |
2004-2007 |
01 |
| 212 |
24219540 |
ROTOR PKG, A/TRNS FLUID PUMP (PART OF 200) (INCLS 201, 202, 208, 209, 211, 213) (17.974MM) (13 VANE) (ROTOR ID MARK = 2 DIMPLES) (4.224) (ACDelco #24219540) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO D |
CK1 (M33) |
2004-2007 |
01 |
| 212 |
24219541 |
ROTOR PKG, A/TRNS FLUID PUMP (PART OF 200) (INCLS 201, 202, 208, 209, 211, 213) (17.987MM) (13 VANE) (ROTOR ID MARK = 2 DIMPLES) (4.224) (ACDelco #24219541) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO D |
CK1 (M33) |
2004-2007 |
01 |
| 212 |
24219542 |
ROTOR PKG, A/TRNS FLUID PUMP (PART OF 200) (INCLS 201, 202, 208, 209, 211, 213) (18.00MM) (13 VANE) (ROTOR ID MARK = 2 DIMPLES) (4.224) (ACDelco #24219542) (MUST USE SLIDES W/1 DIMPLE ROTORS W/2 DIMPLES AS A SET OR SLIDES ROTORS W/NO DI |
CK1 (M33) |
2004-2007 |
01 |
| 213 |
08631280 |
VANE, A/TRNS FLUID PUMP (PART OF 200, 212) (ACDelco #8631280) |
CK1 (M33) |
2004-2007 |
13 |
| 214 |
|
SHAFT, STATOR (PART OF 215) |
|
2004-2007 |
|
| 215 |
24239202 |
COVER KIT, A/TRNS FLUID PUMP (INCLS 214, 216-227, 230, 234-240.) (W/O INPUT SPEED SENSOR ASM) (ACDelco #24239202) |
CK1 (M33) |
2006-2006 |
01 |
| 216 |
08684049 |
VALVE, PRESS REG (PART OF 215) (4.216) (ACDelco #8684049) |
CK1 (M33) |
2004-2007 |
01 |
| 217 |
08680682 |
ПРУЖИНА, PRESS REG VLV OTR (PART OF 215) (4.216) (ACDelco #8680682) |
CK1 (M33) |
2004-2007 |
01 |
| 218 |
08680684 |
ПРУЖИНА, PRESS REG VLV INR (PART OF 215) (ACDelco #8680684) |
CK1 (M33) |
2004-2007 |
01 |
| 219 |
|
VALVE, REV BOOST (PART OF 215) (*KIT3) |
|
2004-2007 |
|
| 220 |
|
SLEEVE, REV BOOST VLV (PART OF 215) (*KIT3) |
|
2004-2007 |
|
| 221 |
11503348 |
RING, T/V BOOST VLV BUSH RET (PART OF 215) (*KIT4) (4.216) (ACDelco #11503348) |
CK1 (M33) |
2004-2007 |
01 |
| 222 |
00274267 |
RING, TYPE TA INT RET .000X.68X.037PL (PART OF 215) (*KIT4) (ACDelco #274267) |
|
2004-2007 |
01 |
| 223 |
08634705 |
STOP, TCC VLV (PART OF 215) (4.216) (ACDelco #8634705) |
CK1 (M33) |
2004-2007 |
01 |
| 224 |
24232106 |
VALVE, TCC (PART OF 215) (ACDelco #24232106) |
CK1 (M33) |
2006-2007 |
01 |
| 226 |
24232105 |
ПРУЖИНА, TCC VLV OTR (PART OF 215) (ACDelco #24232105) |
CK1 (M33) |
2006-2007 |
01 |
| 227 |
08642619 |
RIVET, PRESS RLF BALL VLV SPR (PART OF 215) (4.216) (ACDelco #8642619) |
CK1 (M33) |
2004-2007 |
01 |
| 228 |
07826284 |
BALL, 3/8 DIA STEEL (CLU PRESS RLF VLV) (ACDelco #7826284) |
|
2004-2007 |
01 |
| 229 |
08634106 |
ПРУЖИНА, PRESS RLF BALL VLV (ACDelco #8634106) |
CK1 (M33) |
2004-2007 |
01 |
| 230 |
08681292 |
RING, REV INPUT CLU HSG FLUID SEAL (PART OF 215) (ACDelco #8681292) |
CK1 (M33) |
2004-2007 |
02 |
| 231 |
08642581 |
SEAL, A/TRNS FLUID PUMP CVR SCRN (PART OF 232) (ACDelco #8642581) |
CK1 (M33) |
2004-2007 |
01 |
| 232 |
08642912 |
SCREEN, A/TRNS FLUID PUMP CVR (INCLS 231) (ACDelco #8642912) |
CK1 (M33) |
2004-2007 |
01 |
| 233 |
11500921 |
БОЛТ, HEX, M8X1.25X40, 33.2THD, HDR PT, 10.9, PC (A/TRNS FLUID PUMP CVR) (ACDelco #11500921) |
|
2004-2007 |
05 |
| 234 |
|
BUSHING, INPUT SHF FRT (PART OF 215) |
|
2004-2007 |
|
| 235 |
08623886 |
PLUG, A/TRNS FLUID PUMP CVR (PART OF 215) (6.80MM DIA) (ACDelco #8623886) |
CK1 (M33) |
2004-2007 |
08 |
| 236 |
08623886 |
PLUG, A/TRNS FLUID PUMP CVR (PART OF 215) (6.80MM DIA) (ACDelco #8623886) |
CK1 (M33) |
2004-2007 |
08 |
| 237 |
08628732 |
VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (PART OF 215) (SINGLE ORIFICE) (TALL NARROW) (4.226) (ACDelco #8628732) |
CK1 (M33) |
2004-2007 |
02 |
| 238 |
08634284 |
ORIFICE, TCC SIG (PART OF 215) (4.85MM DIA) (ACDelco #8634284) |
CK1 (M33) |
2004-2007 |
01 |
| 240 |
24203787 |
ORIFICE, 3-4 CLU BL (PART OF 215) (4.3MM DIA) (ACDelco #24203787) |
CK1 (M33) |
2004-2007 |
01 |
| 241 |
08642904 |
BUSHING, INPUT SHF RR (ACDelco #8642904) |
CK1 (M33) |
2004-2007 |
01 |
| 242 |
24206030 |
BUSHING, T/CV (PART OF 200) (ACDelco #24206030)
| CK1 (M33) |
2004-2007 |
01 |
|
| 243 |
24202535 |
SEAL, T/CV FLUID (PART OF 200) (ACDelco #24202535)
| CK1 (M33) |
2004-2007 |
01 |
|
| 244 |
08654491 |
RETAINER, T/CV FLUID SEAL (PART OF 200) (*KIT1) (ACDelco #8654491) |
CK1 (M33) |
2004-2007 |
01 |
| 245 |
|
ПРУЖИНА, A/TRNS FLUID PUMP SLIDE OTR |
|
2004-2007 |
|
| 900 |
|
БОЛТ, STAT SHF |
|
2004-2007 |
|
| K01 |
24236378 |
GASKET KIT, A/TRNS SERV (INCLS 201, 244) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE CK АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ M30 ЧАСТЬ 2, 3) (W/PISTONS) (ACDelco #24236378)
| CK1 (M33) |
2006-2007 |
01 |
|
| K02 |
08634906 |
SEAL KIT, A/TRNS FLUID PUMP SLIDE (INCLS 201, 202, 208, 209) (INCLS RING, SEALS SUPT) (ACDelco #8634906) |
CK1 (M33) |
2004-2007 |
01 |
| K03 |
24244599 |
VALVE KIT, REV BOOST (INCLS 219, 220) (HIGH PERFORMANCE) |
CK1 (M33) |
2006-2007 |
01 |
| K04 |
24248064 |
RING KIT, RET (INCLS 221, 222) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE CK АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ M30 ЧАСТЬ 3) (ACDelco #24248064) |
CK1 (M33) |
2004-2007 |
01 |
