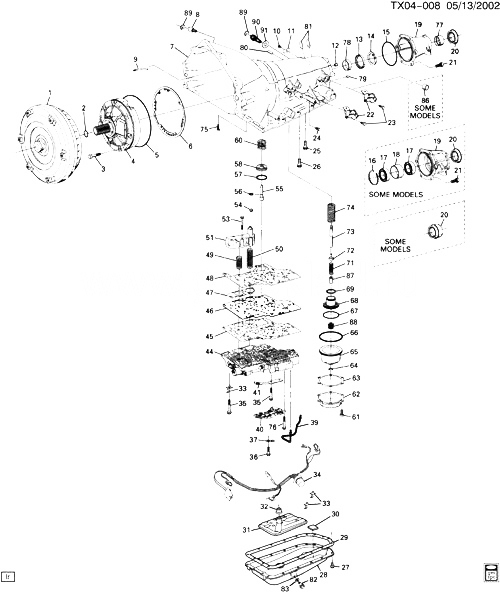

(TX04-008) - 2001-2007 CK1,2,3 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MT1) ЧАСТЬ 2 (4L80-E) КОРПУС И СОПРЯЖЕННЫЕ ДЕТАЛИ CHEVROLET TAHOE LT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12491334 CONVERTER, TORQ (REMAN) CK1, 2, 3 (LQ4, MT1) 2005-2007 01
002 08661760 RING, TURB SHF FRT FLUID SEAL (ACDelco #8661760) CK1, 2, 3 (MT1) 2001-2007 01
003 24206031 БОЛТ, A/TRNS FLUID PUMP (W/SEAL) (*KIT1, KIT2) (ACDelco #24206031) CK1, 2, 3 (MT1) 2001-2007 07
004 PUMP, A/TRNS FLUID (СМ. ГРУППУ 04.000 МАСЛЯНЫЙ НАСОС FOR DETAILED ILLUSTRATED VIEW) 2001-2007
005 24210605 SEAL, A/TRNS FLUID PUMP (O RING) (*KIT1, KIT2, KIT3) (ACDelco #24210605) CK1, 2, 3 (MT1) 2001-2007 01
006 08677782 ПРОКЛАДКА, A/TRNS FLUID PUMP (*KIT1, KIT2) (ACDelco #8677782) CK1, 2, 3 (MT1) 2001-2007 01
007 CASE, A/TRNS (PART OF TRANSMISSION) 2001-2007
008 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS 89) (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366) CK1, 2, 3 (MT1) 2006-2007 01
009 24200374 PIPE, A/TRNS VENT (ACDelco #24200374) CK1, 2, 3 (MT1) 2001-2007 01
010 08622361 PIN, A/TRNS N/PLT DRV (ACDelco #8622361) CK1, 2, 3 (MT1) 2001-2007 01
011 PLATE, A/TRNS NA 2001-2007
012 08675516 ORIFICE, LUB FLUID (4.105) (ACDelco #8675516) C1, 2, 3 (MT1) 2001-2007 01
013 08675517 SEAL, OUTPUT SHF (*KIT1) (ACDelco #8675517) CK1, 2, 3 (MT1) 2001-2007 01
014 08675524 RING, OUTPUT SHF SEAL RET (4.133) (ACDelco #8675524) CK1, 2, 3 (MT1) 2001-2007 01
015 08681168 SEAL, A/TRNS CASE EXTN (4.58O.D.) (.122 THICK) (*KIT1, KIT2) (4.515) (ACDelco #8681168) C1, 2, 3 (MT1) 2001-2007 01
019 24221768 EXTENSION, A/TRNS CASE (INCLS 77) (ACDelco #24221768) C1, 2, 3 (MT1) 2001-2006 01
021 11500830 БОЛТ, HEX M10PX1.5X30 9.8 PHOS (A/TRNS CASE EXTN) 1999-2007 06
022 24203876 ДАТЧИК, A/TRNS INPUT SPD (INCLS SEAL) (4.337) (ACDelco #24203876) CK1, 2, 3 (MT1) 2001-2007 01
022 24203876 ДАТЧИК, A/TRNS OUTPUT SPD (INCLS SEAL) (4.337) (ACDelco #24203876) CK1, 2, 3 (MT1) 2001-2007 01
022 24203876 ДАТЧИК, A/TRNS INPUT SPD (INCLS SEAL) (4.337) (ACDelco #24203876) CK1, 2, 3 (MT1) 2001-2007 01
022 24203876 ДАТЧИК, A/TRNS OUTPUT SPD (INCLS SEAL) (ACDelco #24203876) CK1, 2, 3 (MT1) 2001-2007 01
023 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (A/TRNS INPUT SPD SEN) 1999-2007 02
024 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (OIL PRESS TEST HOLE) (ACDelco #444613) 1999-2007 01
025 08661762 БОЛТ, CTR SUPT (3/8-16 X 1.07) (ACDelco #8661762) CK1, 2, 3 (MT1) 2001-2007 01
026 08686124 БОЛТ, 4TH CLU HSG (5/16-18X.96) (*KIT1) (ACDelco #8686124) CK1, 2, 3 (MT1) 2001-2007 01
027 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (A/TRNS FLUID PAN) 1999-2007 17
028 PAN, A/TRNS FLUID (*KIT4) 2001-2007
029 08677743 ПРОКЛАДКА, A/TRNS FLUID PAN (ACDelco #8677743) CK1, 2, 3 (MT1) 2001-2007 01
030 08665830 MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #8665830) CK1, 2, 3 (MT1) 2001-2007 01
031 FILTER, A/TRNS FLUID (*KIT5) 2001-2007
032 08656613 SEAL, A/TRNS FLUID FLTR (*KIT5) (ACDelco #8656613) CK1, 2, 3 (MT1) 2001-2007 01
033 08675539 CLIP, A/TRNS WRG HARN (4.265) (ACDelco #8675539) CK1, 2, 3 (MT1) 2001-2007 02
034 ДАТЧИК, A/TRNS FLUID TEMP (PART OF HARNESS) 2004-2007
034 24229664 HARNESS, A/TRNS WRG (ACDelco #24229664) CK1, 2, 3 (LQ4, MT1) 2004-2007 01
034 24229664 HARNESS, A/TRNS WRG (2.480) (ACDelco #24229664) CK1, 2, 3 (LQ4, MT1) 2004-2006 01
035 11515262 БОЛТ, HFH, M6X1X55, 18THD, 14.2 O.D., 9.8, PC (MAN SHFT DTNT) 1999-2007 03
036 11503870 БОЛТ, HEX M6X1X35 10.9 PC (LUB FLUID PIPE RET) (ACDelco #11503870) 1999-2007 01
037 24204276 RETAINER, LUB FLUID PIPE (ACDelco #24204276) CK1, 2, 3 (MT1) 2001-2007 01
039 24204275 PIPE, FLUID (ACDelco #24204275) CK1, 2, 3 (MT1) 2001-2007 01
040 24222077 SWITCH, A/TRNS FLUID PRESS MAN VLV POSN (ACDelco #24222077) CK1, 2, 3 (MT1) 2001-2007 01
041 08684063 DETENT, MAN SHFT CK1, 2, 3 (MT1) 2001-2007 01
044 24224907 VALVE, CONT (W/BODY VLV) (ACDelco #24224907) CK1, 2, 3 (LQ4, MT1) 2004-2007 01
045 24204268 ПРОКЛАДКА, C/VLV BODY (*KIT1, KIT2) (ACDelco #24204268) CK1, 2, 3 (MT1) 2001-2007 01
046 24226081 PLATE, C/VLV BODY SPCR (ACDelco #24226081) CK1, 2, 3 (MT1) 2004-2007 01
047 08661829 ПРОКЛАДКА, 3RD 4TH CLU ACCUM HSG (*KIT1, KIT2) (ACDelco #8661829) CK1, 2, 3 (MT1) 2001-2007 01
048 24204253 ПРОКЛАДКА, C/VLV BODY SPCR PLT (*KIT1, KIT2) (ACDelco #24204253) CK1, 2, 3 (MT1) 2001-2007 01
049 08675634 ПРУЖИНА, 4TH CLU ACCUM PSTN (ACDelco #8675634) CK1, 2, 3 (MT1) 2001-2007 01
050 24200436 ПРУЖИНА, 3RD CLU ACCUM PSTN (ACDelco #24200436) CK1, 2, 3 (MT1) 2001-2007 01
051 08684220 HOUSING, 3RD 4TH CLU ACCUM (ACDelco #8684220) CK1, 2, 3 (MT1) 2001-2007 01
053 08675533 БОЛТ, 3RD 4TH CLU ACCUM HSG (SHORT) (ACDelco #8675533) CK1, 2, 3 (MT1) 2001-2007 06
054 00104918 BALL, 1/4 DIA, CHROME STL (SHFT DTNT) (ACDelco #104918) 1999-2007 01
055 PIN, INTER BAND PSTN (*KIT6) 2001-2007
056 RING, SERVO PSTN SPR RET RET (*KIT6) 2001-2007
057 08626423 SEAL, MAN 2-1 BAND SERVO PSTN (*KIT1, KIT6) (ACDelco #8626423) CK1, 2, 3 (MT1) 2001-2007 01
058 PISTON, MAN 2-1 BAND SERVO (*KIT6) 2001-2007
060 08623489 ПРУЖИНА, MAN 2-1 BAND SERVO PSTN CUSH (*KIT6) (ACDelco #8623489) CK1, 2, 3 (MT1) 2001-2007 01
061 08676000 БОЛТ, LOW REV BAND SERVO CVR (M8X1.25X20) (16.437) (ACDelco #8676000) CK1, 2, 3 (MT1) 2001-2007 06
062 24202282 COVER, LOW REV BAND SERVO (ACDelco #24202282) CK1, 2, 3 (MT1) 2001-2007 01
063 08675728 ПРОКЛАДКА, LOW REV BAND SERVO CVR (*KIT1, KIT2) (4.109) (ACDelco #8675728) CK1, 2, 3 (MT1) 2001-2007 01
064 18015044 RING, EXT RET, M8 OR 5/16 DIA SHF (RR SERVO) (ACDelco #18015044) 1999-2007 01
065 24202985 PISTON, LOW REV BAND SERVO (ACDelco #24202985) CK1, 2, 3 (MT1) 2001-2007 01
066 08623430 SEAL, LOW REV BAND SERVO PSTN (*KIT1, KIT2) (ACDelco #8623430) CK1, 2, 3 (MT1) 2001-2007 01
067 RING, LOW REV ACCUM PSTN OTR FLUID SEAL (PART OF 68) 2001-2007
068 24205250 PISTON, LOW REV ACCUM (INCLS 67, 69) (W/RINGS) (ACDelco #24205250) CK1, 2, 3 (MT1) 2001-2007 01
069 RING, LOW REV ACCUM PSTN INR FLUID SEAL (PART OF 68) 2001-2007
071 08623666 ПРУЖИНА, LOW REV BAND SERVO PSTN (ACDelco #8623666) CK1, 2, 3 (MT1) 2001-2007 01
072 08623664 RETAINER, LOW REV BAND SERVO PSTN SPR (4.246) (ACDelco #8623664) CK1, 2, 3 (MT1) 2001-2007 01
073 24202577 PIN, LOW REV BAND SERVO PSTN (3.303 IN) (ACDelco #24202577) CK1, 2, 3 (MT1) 2001-2007 01
073 24202578 PIN, LOW REV BAND SERVO PSTN (3.359 IN) (ACDelco #24202578) CK1, 2, 3 (MT1) 2001-2007 01
073 24202579 PIN, LOW REV BAND SERVO PSTN (3.415 IN) (ACDelco #24202579) CK1, 2, 3 (LQ4, MT1) 2003-2007 01
073 24202580 PIN, LOW REV BAND SERVO PSTN (3.331 IN) (ACDelco #24202580) CK1, 2, 3 (LQ4, MT1) 2003-2007 01
073 24202581 PIN, LOW REV BAND SERVO PSTN (3.387 IN) (ACDelco #24202581) CK1, 2, 3 (LQ4, MT1) 2003-2007 01
073 24202582 PIN, LOW REV BAND SERVO PSTN (3.443 IN) (ACDelco #24202582) CK1, 2, 3 (LQ4, MT1) 2003-2007 01
073 24202583 PIN, LOW REV BAND SERVO PSTN (3.471 IN) (ACDelco #24202583) CK1, 2, 3 (LQ4, MT1) 2003-2007 01
074 08655843 ПРУЖИНА, LOW REV ACCUM PSTN (ORANGE) (4.246) (ACDelco #8655843) CK1, 2, 3 (MT1) 2002-2007 01
075 08661834 SCREEN, TCC SOL VLV (4.122) (ACDelco #8661834) CK1, 2, 3 (MT1) 2001-2007 01
076 08676222 БОЛТ, VLV BODY (M6X1X55, 11.1 O.D.) (ACDelco #8676222) CK1, 2, 3 (MT1) 2003-2007 06
077 BUSHING, CASE EXTN (PART OF 19) 2001-2007
078 BUSHING, OUTPUT SHF (SERVICED WITH COMPLETE TRANSMISSION ONLY) 2001-2007
079 08661701 PLUG, DIR FLUID GAL (.263 O.D.) (4.224) (ACDelco #8661701) CK1, 2, 3 (MT1) 2001-2007 05
080 PIN, MAN 2-1 BAND ANC 2001-2007
081 PIN, LOW-REV BAND ANC 2001-2007
083 SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (PART OF 82) (*KIT4) 2001-2007
087 24202986 SPACER, LOW REV BAND SERVO PSTN PIN (ACDelco #24202986) CK1, 2, 3 (MT1) 2001-2007 01
088 24202987 ПРУЖИНА, 1-2 ACCUM (ACDelco #24202987) CK1, 2, 3 (MT1) 2001-2007 01
089 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 8) (EXPANDING SPRING WIRE) (ACDelco #24205103) CK1, 2, 3 2001-2007 02
090 24233367 FITTING, TRANS FLUID CLR PIPE (INCLS 91) (1/4-18 NPS THD) (INCLS O-RING) (QUICK CONNECT) (STL BODY) (ACDelco #24233367) CK1, 2, 3 2006-2007 01
091 SEAL, TRANSMISSION REAR OIL COOLER PIPE (O-RING) (PART OF 90) 2001-2007
K01 24210954 TRANSMISSION KIT, AUTO (SERV OVERHAUL W/PLT, GSKT, SEAL) (INCLS 3, 5, 6, 13, 15, 26, 45, 47, 48, 57, 63, 66) (ACDelco #24210954) CK1, 2, 3 (MT1) 2001-2007 01
K02 24210955 GASKET KIT, A/TRNS SERV (INCLS 3, 5, 6, 15, 45, 47, 48, 63, 66) (ACDelco #24210955) CK1, 2, 3 (MT1) 2001-2007 01
K03 24211287 НАСОС, A/TRNS FLUID (INCLS 5) (ACDelco #24211287) CK1, 2, 3 (MT1) 2001-2007 01
K05 24210956 ФИЛЬТР, A/TRNS FLUID (INCLS 31, 32) (INLCS FILTER SEAL) (ACDelco #24210956) CK1, 2, 3 (MT1) 2001-2007 01
K06 24200418 PISTON, MAN 2-1 SERVO (INCLS 55-60) (W/RING, SEAL, PIN SPRING) (ACDelco #24200418) C1, 2, 3 (MT1) 2005-2006 01
