| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|

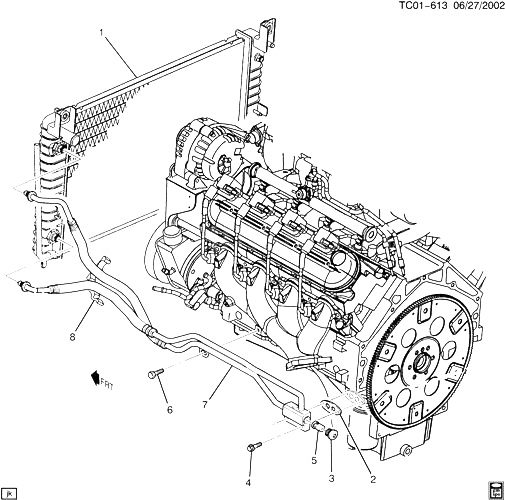

RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
1999-2007 |
|
| 002 |
15203889 |
ПРОКЛАДКА, ENG OIL CLR (PART OF 7)
| CK1, 2, 3 (LQ4, LQ9, L59) |
2005-2006 |
01 |
|
| 003 |
|
CAP, ENG OIL CLR FTG (PART OF 7) |
|
2002-2007 |
|
| 004 |
11517521 |
БОЛТ, HFH, M6X1X35, 17 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (PART OF 7) |
|
1999-2007 |
02 |
| 005 |
25014051 |
VALVE, OIL FLTR BYPASS (PART OF 7) |
CK1, 2, 3 (LQ4) |
2002-2007 |
01 |
| 005 |
25014051 |
VALVE, OIL FLTR BYPASS (PART OF 7) |
CK1 (LQ9) |
2004-2007 |
01 |
| 006 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (ENG OIL CLR HOSE BRKT) (T/W 12345493 REPLCS 25534835)
|
1999-2007 |
01 |
|
| 007 |
15809049 |
HOSE, ENG OIL CLR (INCLS 2-5) (CODE AMU) |
CK1, 2, 3 (LQ4, LQ9, L59, KC4) |
2006-2006 |
01 |
| 008 |
15698443 |
CLIP, ENG OIL CLR HOSE (2 PLACE HINGED) |
CK1, 2, 3 |
2002-2006 |
01 |
