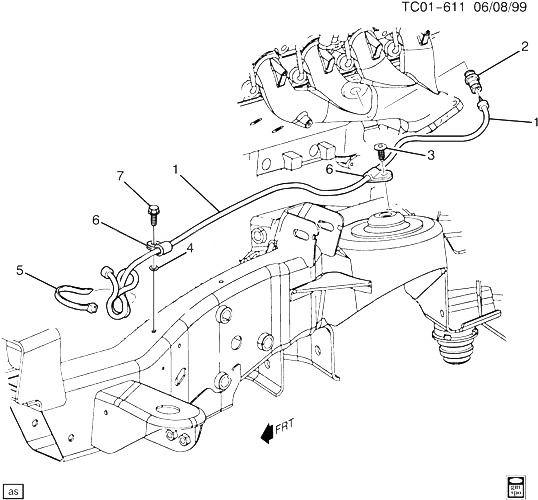

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15811533 |
CORD, ENG COOL HTR (INCLS 5, 6) (2-PIN) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, K05) |
2006-2007 |
01 |
| 002 |
12586687 |
HEATER, ENG COOL (W/2-PIN AND SILVER COLORED) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, K05) |
2006-2007 |
01 |
| 003 |
21075686 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (ENG COOL HTR CORD)
|
1999-2007 |
01 |
|
| 004 |
11501869 |
WASHER, EXT TOOTHED LK, M8, 15 O.D., .85THK, STL, ZN (ENG COOL HTR CORD CLIP) (ACDelco #11501869) |
|
1999-2007 |
02 |
| 005 |
12355066 |
STRAP, PLASTIC ADJ TIE (215MM LG) (PART OF 1) (8.965) (ACDelco #16TS825)
|
1999-2007 |
01 |
|
| 006 |
|
CLAMP, ENG COOL HTR CORD (PART OF 1) |
|
2005-2007 |
|
| 007 |
11508534 |
БОЛТ, HFH, M8X1.25X16, 16.8 O.D., MACH PT, 6171M, POR (ENG COOL HTR CORD CLIP)
|
1999-2007 |
01 |
|
