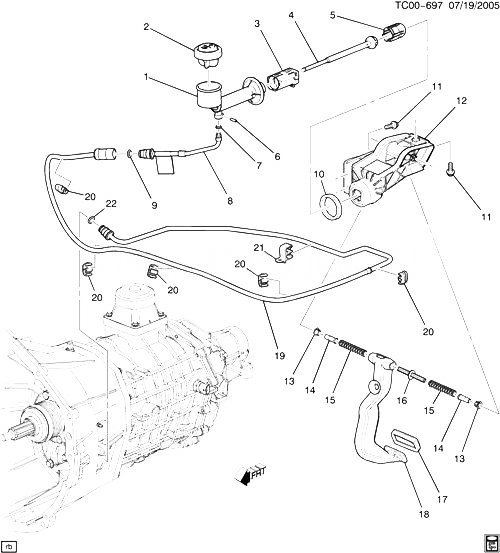

(TC00-697) - 2006-2007 CK ПЕДАЛЬ СЦЕПЛЕНИЯ CYLINDERS (MG5,TZ0) CHEVROLET TAHOE LT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24235619 CYLINDER, CLU MAS (INCLS 2-9) (W/ HOSE) (202.39MM PUSHROD) CK1 (LU3, TZ0) 2006-2007 01
001 24235619 CYLINDER, CLU MAS (INCLS 2-9) (W/ HOSE) (202.39MM PUSHROD) CK1, 2, 3 (LQ4, LR4, L31, MW3, M96, TZ0) 2006-2007 01
001 24235619 CYLINDER, CLU MAS (INCLS 2-9) (W/ HOSE) (202.39MM PUSHROD) (FOR VIN 11TH DIGIT=G AND BTW AND ICLD VIN 6G147522 7G166697 SEE 24242325) CK1 (LR4, MG5) 2006-2007 01
001 24235619 CYLINDER, CLU MAS (INCLS 2-9) (W/ HOSE) (202.39MM PUSHROD) (FOR VIN 11TH DIGIT=G AND BTW AND INCLS VIN 6G147522 7G166697 SEE 24242325) CK1 (LU3, MG5) 2006-2007 01
001 24242325 CYLINDER, CLU MAS (INCLS 2-9) (205.39MM/PUSHROD) (FOR 11TH DIGIT OF VIN = G AND BTW AND INCL VIN 6G147522 7G166697) CK1 (LR4, MG5) 2006-2007 01
001 24242325 CYLINDER, CLU MAS (INCLS 2-9) (205.39MM/PUSHROD) (FOR 11TH DIGIT OF VIN = G AND BTW AND INCL VIN 6G147522 7G166697) CK1 (LU3, MG5) 2006-2007 01
002 89048534 CAP, CLU M/CYL RSVR (PART OF 1) (W/ISO) CK1, 2, 3 (M96, TZ0) (EXPORT) 2006-2007 01
002 89048534 CAP, CLU M/CYL RSVR (PART OF 1) (W/ISO) CK1, 2, 3 (MG5, MW3) 2006-2007 01
003 15027967 SWITCH, CLU PED POSN (PART OF 1) (AT MASTER CYL) (ACDelco #D2205C) CK1, 2, 3 (M96, TZ0) (EXPORT) 2006-2007 01
003 15027967 SWITCH, CLU PED POSN (PART OF 1) (AT MASTER CYL) (ACDelco #D2205C) CK1, 2, 3 (MG5, MW3) 2006-2007 01
004 ROD, CLU M/CYL PUSH (PART OF 1) 2006-2007
005 12473050 BUSHING, CLU M/CYL PUSH ROD (PART OF 1) CK1, 2, 3 (M96, TZ0) (EXPORT) 2006-2007 01
005 12473050 BUSHING, CLU M/CYL PUSH ROD (PART OF 1) CK1, 2, 3 (MG5, MW3) 2006-2007 01
006 12386924 PIN, CLU ACTR CYL (PART OF 1) CK1 (MG5) 2006-2007 02
006 12386924 PIN, CLU ACTR CYL (PART OF 1) CK1, 2, 3 (TZ0) (EXPORT) 2006-2007 02
007 12549117 SEAL, CLU ACTR CYL (O RING) (PART OF 1) CK1 (MG5, TZ0) 2006-2007 02
007 12549117 SEAL, CLU ACTR CYL (O RING) (PART OF 1) CK1, 2, 3 (LR4, MG5) 2006-2007 02
008 19153386 HOSE, CLU M/CYL RSVR (PART OF 1) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2006-2006 01
008 19153386 HOSE, CLU M/CYL RSVR (PART OF 1) CK1, 2, 3 (MG5) 2006-2007 01
009 12549117 SEAL, CLU ACTR CYL (O RING) (PART OF 1) CK1 (MG5, TZ0) 2006-2007 02
010 SEAL, CLU PED BRKT (PART OF 18) 2006-2007
011 11517182 БОЛТ, CLU PED BRKT (M10X1.5X30, 15 THD) (8.900) CK1, 2, 3 (MG5, ML6, MW3, M96, TZ0) 2006-2007 02
012 BRACKET, CLU PED (PART OF 18) 2006-2007
013 15023000 BUSHING, CLU PED PIV (TO PEDAL) (PART OF 18) (25.4X26.9MM) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2006-2007 02
014 15734674 BUSHING, CLU PED PIV (TO BRKT) (PART OF 18) (45.0X20.94MM) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2006-2007 02
015 15773468 ПРУЖИНА, CLU PED RTN (PART OF 18) (LG=56.3MM) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2006-2007 02
016 15734410 SPACER, CLU PED PIV (PART OF 18) CK1 (MG5, TZ0) 2006-2007 01
017 15706041 COVER, CLU PED (PART OF 18) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2006-2007 01
018 15027983 PEDAL, CLU (W/BRKT) (INCLS 10, 12-17) C1 (MG5) 2006-2007 01
018 15027983 PEDAL, CLU (W/BRKT) (INCLS 10, 12-17) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2006-2007 01
019 24235521 PIPE, CLU ACTR CYL (INCLS 20-22) CK1 (MG5) 2006-2007 01
019 24235521 PIPE, CLU ACTR CYL (INCLS 20-22) CK1 (MG5, TZ0) 2006-2007 01
020 CLIP, CLU ACTR CYL (PART OF 19) 2006-2007
021 CLIP, CLU ACTR CYL (PART OF 19) 2006-2007
022 SEAL, CLU ACTR CYL PIPE (PART OF 19) 2006-2007
