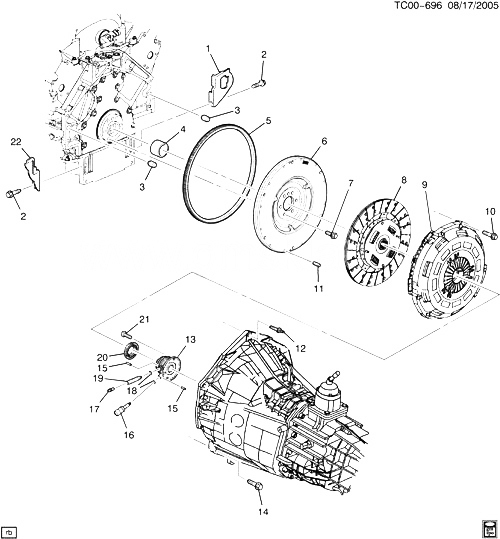

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12561536 |
COVER, TRANS (ACDelco #12561536) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, MG5, MW3, TZ0) |
2006-2007 |
01 |
| 002 |
12560226 |
БОЛТ, HEX W/FLAT WASH, M6.0X1.0X14.5, 13.5, 17 OD, 9.8, 7114M, MACH (TRANS CVR) |
|
2006-2007 |
02 |
| 003 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2006-2007 |
02 |
| 004 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
CK1 (LR4, MG5) |
2006-2006 |
01 |
| 004 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
C1 (LR4, TZ0, P96) (EXPORT) |
2006-2007 |
01 |
| 005 |
03991408 |
GEAR, STRTR DRVN RING (PART OF 6) |
CK1 (LR4) |
2006-2007 |
01 |
| 007 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| CK1 (LR4) |
2006-2007 |
06 |
|
| 008 |
12605576 |
PLATE, CLU DRVN (PART OF 8) |
C1 (LR4, TZ0, P96) (EXPORT) |
2006-2007 |
01 |
| 008 |
15033809 |
PLATE, CLU DRVN (PART OF 8) |
CK1 (LR4, MG5) |
2006-2006 |
01 |
| 009 |
15745846 |
PLATE, CLU PRESS DRVN (W/CVR) (INCLS 7) |
CK1 (LR4, MG5) |
2006-2006 |
01 |
| 009 |
94666749 |
PLATE, CLU PRESS DRVN (W/CVR) (INCLS 7) |
C1 (LR4, TZ0, P96) (EXPORT) |
2006-2007 |
01 |
| 010 |
12561465 |
БОЛТ, CLU PRESS PLT (HFH M10X1.5X25 10.9 7114M HDR PT, 17.3 FLANGE) |
CK1 (LR4, MG5) |
2006-2006 |
06 |
| 010 |
12561465 |
БОЛТ, CLU PRESS PLT (HFH M10X1.5X25 10.9 7114M HDR PT, 17.3 FLANGE) |
C1 (LR4, TZ0, P96) |
2006-2007 |
06 |
| 011 |
11505820 |
PIN, DOWEL, M6X20, PL (PART OF 6) |
|
2006-2007 |
01 |
| 012 |
15724226 |
STUD, TRANS (HFH, M8X1.25X20, M10X1.5X35, 18 OD, 64.5 TL, 9.8, 7114M) (4.047)
| C1 (TZ0) (EXPORT) |
2006-2006 |
06 |
|
| 012 |
15724226 |
STUD, TRANS (HFH, M8X1.25X20, M10X1.5X35, 18 OD, 64.5 TL, 9.8, 7114M) (4.047)
| CK1, 2, 3 (MG5) |
2006-2006 |
06 |
|
| 013 |
94670783 |
CYLINDER, CLU ACTR (INCLS 15-20) |
CK1 (LR4, MG5, TZ0) |
2006-2007 |
01 |
| 014 |
11515768 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (TRANS)
|
2006-2007 |
02 |
|
| 015 |
12386924 |
PIN, CLU ACTR CYL (PART OF 13) |
CK1 (MG5) |
2006-2007 |
02 |
| 015 |
12386924 |
PIN, CLU ACTR CYL (PART OF 13) |
CK1, 2, 3 (TZ0) (EXPORT) |
2006-2007 |
02 |
| 016 |
|
FITTING, CLU ACTR CYL PIPE (PART OF 13) |
|
2006-2007 |
|
| 017 |
|
VALVE, CLU ACTR CYL BL (PART OF 13) |
|
2006-2007 |
|
| 018 |
12549117 |
SEAL, CLU ACTR CYL (O RING) (PART OF 13) |
CK1 (MG5, TZ0) |
2006-2007 |
02 |
| 018 |
12549117 |
SEAL, CLU ACTR CYL (O RING) (PART OF 13) |
CK1, 2, 3 (LR4, MG5) |
2006-2007 |
02 |
| 019 |
|
FITTING, CLU REL BRG LUB (PART OF 13) |
|
2006-2007 |
|
| 020 |
88934649 |
BEARING, CLU REL (47.5MM ID) (PART OF 13) (W/O CARR) (ACDelco #CT1075) |
CK1 (LR4, MG5) |
2006-2006 |
01 |
| 020 |
88934649 |
BEARING, CLU REL (47.5MM ID) (PART OF 13) (W/O CARR) (ACDelco #CT1075) |
CK1 (TZ0) (EXPORT) |
2006-2007 |
01 |
| 021 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (CLU ACTR CYL) |
|
2006-2007 |
02 |
| 022 |
12561303 |
COVER, TRANS (ACDelco #12561303) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L59, MG5, MW3, TZ0) |
2006-2007 |
01 |
