| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

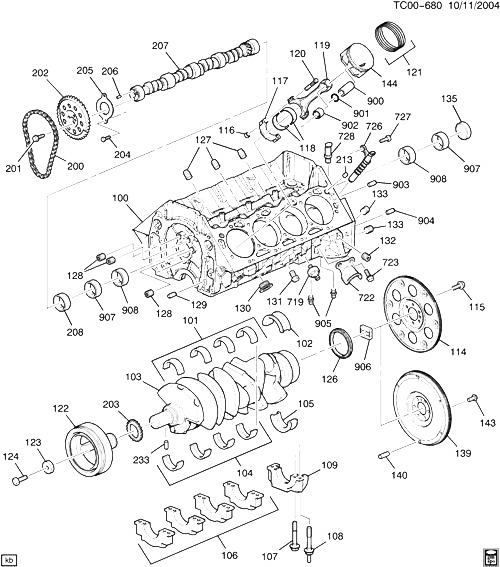

| 100 |
|
БЛОК, ДВИГАТЕЛЯ |
|
2005-2007 |
|
| 102 |
|
BEARING KIT, CR/SHF THR (PART OF 105) |
|
2005-2007 |
|
| 104 |
|
BEARING, CR/SHF LWR (PART OF 101) |
|
2005-2007 |
|
| 106 |
|
CAP, CR/SHF BRG (MCHG) |
|
2005-2007 |
|
| 109 |
|
CAP, CR/SHF #5 BRG |
|
2005-2007 |
|
| 115 |
11609297 |
BOLT-HEX W/FL WA, M11X1.5X25, 20.13 THD, 21 OD, 10.9, GMW3359 (FLYWHL) |
|
2004-2007 |
06 |
| 117 |
|
CAP, CONN ROD (PART OF 119) |
|
2005-2007 |
|
| 127 |
00444613 |
PLUG, HEX HD, 1/8-27 NPTF, STL (ENG BLK OIL GAL) (ACDelco #444613) |
|
2004-2007 |
03 |
| 128 |
11609914 |
PLUG - HX SOCKET DRAIN (ENG BLK OIL GAL) (1.531) |
|
2005-2007 |
03 |
| 132 |
00444777 |
PLUG, HEX SOC, 1/4-18, STL (8.921) |
|
2004-2007 |
01 |
| 133 |
11609915 |
PLUG - SEALING ZN GMW3044 (ENG BLK OIL GAL) (1.531) |
|
2005-2007 |
AR |
| 139 |
|
FLYWHEEL, (PART OF 114) |
|
2005-2007 |
|
| 140 |
11505820 |
PIN, DOWEL, M6X20, PL (ENG FRT CVR LOC) |
|
2004-2007 |
08 |
| 143 |
11609297 |
BOLT-HEX W/FL WA, M11X1.5X25, 20.13 THD, 21 OD, 10.9, GMW3359 (FLYWHL) |
|
2004-2007 |
06 |
| 144 |
89060463 |
PISTON, (INCLS 900, 901) (W/CONN ROD) (0.030O.S.) |
CK1, 2, 3 (L18) |
2005-2007 |
04 |
| 144 |
89060465 |
PISTON, (INCLS 900, 901) (W/CONN ROD) (0.030O.S.) (FOR USE WITH FLOATING PIN DESIGN ONLY) |
CK1, 2, 3 (L18) |
2005-2007 |
04 |
| 201 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (CM/SHF SPKT) (ACDelco #11570082)
|
2004-2007 |
03 |
|
| 204 |
11515151 |
SCREW, PAN HD, M6X1X13, 12 THD, 9.8, PE, TORX (CM/SHF RET) |
|
2004-2007 |
02 |
| 723 |
52368558 |
БОЛТ, M6X1X12, 10 THD, 11.6 OD, HDR PT, 9.8, POR (KNOCK SEN SHLD) |
|
2004-2007 |
02 |
| 900 |
|
PIN, PSTN (PART OF 144) |
|
2005-2007 |
|
| 901 |
|
RETAINER, PSTN PIN (PART OF 144) |
|
2005-2007 |
|
| 902 |
|
BUSHING, CONN ROD (PART OF 119) |
|
2005-2007 |
|
| 903 |
12554553 |
PIN, (1/4 X 5/8) (PART OF 207) (0.738) |
|
2004-2007 |
01 |
| 904 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2004-2007 |
01 |
