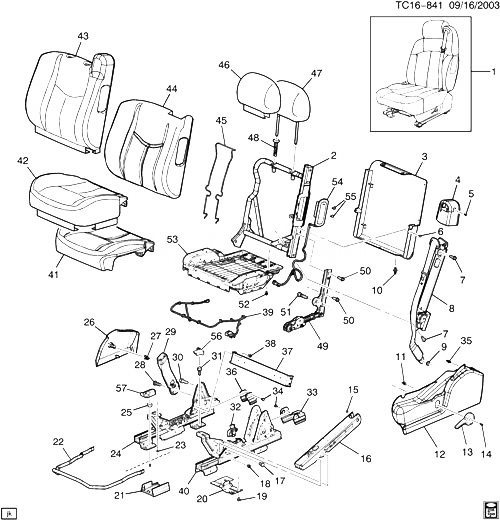

(TC16-841) - 2003-2006 CK(06) СИДЕНЬЕ ВОДИТЕЛЯ/SPLIT BENCH (AE7,EXC (AG1)) CHEVROLET TAHOE LT (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88941227 SEAT, DRVR (W/BELT) (PEWTER) CK1, 2 (06) (AE7, AL0, 92V) (EXC AG1, AJ7) 2003-2005 01
002 88978387 FRAME, D/SEAT BK CUSH (W/O ARMREST) CK1, 2 (06) (AE7, AL0) 2003-2006 01
003 88941749 PANEL, D/SEAT BK CUSH FIN CK1, 2, 3 (EXC ULT) 2003-2006 01
004 12473303 COVER, D/SEAT SHLDR BELT OPG TR CK1, 2, 3 2003-2006 01
005 12476324 БОЛТ, D/SEAT SHLDR BELT OPG TR CVR (M4X0.7X12) (HEX HD) (16.679) CK1, 2, 3 2003-2006 02
006 20538173 RETAINER, D/SEAT BK CUSH FIN PNL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 AR
007 12473319 БОЛТ, D/SEAT SHLDR BELT GDE BRKT (M12X1.75X37) (HEX) (OUTER) (16.682) CK1, 2, 3 2003-2006 02
008 88956018 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (RETR SI) (PEWTER) CK1, 2 (06) (AE7, 92I) 2003-2006 01
008 88956020 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (RETR SI) (NEUTRAL) CK1, 2 (06) (AE7, AL0, 52I) 2003-2006 01
009 11516078 ГАЙКА, D/SEAT BELT (RETR SI) (M12X1.75X18) (8.917) CK1, 2, 3 2003-2006 01
010 12473290 RETAINER, D/SEAT CUSH (NATURAL) CK1, 2, 3 2003-2006 02
011 CLIP, D/SEAT RSR FIN (PART OF 12) 2003-2006
012 88941713 COVER, D/SEAT RSR FIN (INCLS 11, 35) (PEWTER) CK1, 2, 3 (AE7, A95, 92I) 2003-2006 01
012 88941714 COVER, D/SEAT RSR FIN (INCLS 11, 35) (NEUTRAL) CK1, 2, 3 (AE7, A95, 52I) 2003-2006 01
013 88941656 HANDLE, D/SEAT RECL (PEWTER) CK1, 2, 3 (92I) 2003-2006 01
013 88941658 HANDLE, D/SEAT RECL (NEUTRAL) CK1, 2, 3 (52I) 2003-2006 01
014 12473322 БОЛТ, D/SEAT RECL HDL (M4.8X1.59X20) CK1, 2, 3 2003-2006 01
015 12476880 RETAINER, D/SEAT ADJR LAT ROD (10.0MM OD, 5.9MM LG) (PUSH-IN) CK1, 2, 3 2003-2006 01
016 88941830 BRACKET, D/SEAT OTR ADJR CK1, 2, 3 2003-2006 01
017 88936522 БОЛТ, D/SEAT RECL (M10X1.5X12.56) (SHLDR) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 02
018 88936767 БОЛТ, D/SEAT RECL (M6X1X10) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 01
019 88936767 БОЛТ, D/SEAT ADJR (M6X1X10) CK1, 2, 3 2003-2006 04
020 88940328 BRACKET, D/SEAT ADJR WRG HARN CK1, 2, 3 2003-2006 01
021 12473317 COVER, D/SEAT OTR ADJR FRT FIN (BLACK) CK1, 2, 3 2003-2006 01
022 88940937 BAR, D/SEAT INR OTR ADJR TIE (INCLS RETAINERS) CK1, 2, 3 (AE7, A95) 2003-2006 01
023 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (F/SEAT CUSH FRM) 2003-2006 04
024 88940930 ADJUSTER, D/SEAT INR (INCLS 32) (MANUAL) CK1, 2 (06) (AE7, AL0) (EXC AG1) 2003-2006 01
024 88941828 ADJUSTER, D/SEAT INR (INCLS 32) (MANUAL) CK1, 2, 3 (AE7) (EXC AG1, AL0) 2003-2006 01
025 15035434 ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 04
026 88941702 COVER, D/SEAT INR ADJR RR FIN (INCLS 27) (PEWTER) CK1, 2, 3 (92I) 2003-2006 01
026 88941704 COVER, D/SEAT INR ADJR RR FIN (INCLS 27) (NEUTRAL) CK1, 2, 3 (52I) 2003-2006 01
026 88941706 COVER, D/SEAT INR ADJR RR FIN (INCLS 27) (SHALE) CK1, 2 (152, 522) 2003-2006 01
027 CLIP, D/SEAT INR ADJR RR FIN (PART OF 26) 2003-2006
028 88981775 БОЛТ, D/SEAT BELT (BKL SI) (M12X1.75X35) (PAN HD) CK1, 2, 3 2003-2006 01
029 88957874 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (NEUTRAL) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06) (AE7, AL0, 52I) 2003-2006 01
029 88957876 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (PEWTER) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06) (AE7, AL0, 92I) 2003-2006 01
030 88976917 БОЛТ, F/SEAT BK CUSH PIV (M10X1.5X28.5) CK1, 2, 3 2003-2006 01
031 15044189 БОЛТ, F/SEAT (M12X1.75X45) (16.679) CK1, 2, 3 (AE7, AN3, A95) 2003-2005 04
032 19180158 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 24) CK1, 2 2003-2006 01
032 88982093 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 24) (INCLS RIVETS) CK1, 2 2003-2006 01
033 88935557 COVER, D/SEAT OTR ADJR UPR RR FIN (BLACK) CK1, 2, 3 2003-2006 01
034 20538173 RETAINER, D/SEAT CUSH (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 10
035 RETAINER, D/SEAT ADJR FIN CVR (PART OF 12) 2003-2006
036 12478511 COVER, D/SEAT INR ADJR UPR FIN (BLACK) CK1, 2, 3 2003-2006 01
037 88940335 BAR, D/SEAT ADJR LAT CK1, 2, 3 (AE7, A95) 2003-2006 01
038 88936767 БОЛТ, D/SEAT RECL (M6X1X10) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 01
039 88978227 HARNESS, D/SEAT ADJR WRG CK1, 2 (06) (AE7, AJ7, AL0, X88, 52D, 92D) (EXC AG1) 2005-2005 01
039 88978227 HARNESS, D/SEAT ADJR WRG CK1, 2 (06) (AE7, AL0, 92V) (EXC AG1, AJ7) 2005-2005 01
039 88978227 HARNESS, D/SEAT ADJR WRG CK1, 2 (06) (AE7, AL0, X88, 52D, 92D) (EXC AG1, AJ7) 2005-2005 01
040 88940929 ADJUSTER, D/SEAT OTR (MANUAL) CK1, 2 (06) (AE7, A95, AL0) (EXC AG1) 2003-2006 01
041 88941608 PAD, D/SEAT CUSH (USED W/TRIM CODES ENDING IN C OR V) CK1, 2, 3 (AE7) 2003-2006 01
041 88941608 PAD, D/SEAT CUSH (USED W/TRIM CODES ENDING IN D) CK1, 2, 3 (AE7) (EXC AG1) 2003-2006 01
042 89041027 COVER, D/SEAT CUSH (PEWTER) CK1, 2 (06) (AE7, AL0, 92V) (EXC AG1, AJ7) 2003-2006 01
042 89044809 COVER, D/SEAT CUSH (PEWTER) CK1, 2 (06) (AE7, AL0, X88, 92D) (EXC AG1) 2003-2006 01
042 89044810 COVER, D/SEAT CUSH (NEUTRAL) CK1, 2 (06) (AE7, AL0, X88, 52D) (EXC AG1) 2003-2006 01
043 89041025 COVER, D/SEAT BK CUSH CK1, 2 (06) (AE7, AL0, 92V) (EXC AG1, AJ7) 2003-2006 01
043 89044778 COVER, D/SEAT BK CUSH (PEWTER) CK1, 2 (06) (AE7, X88, 92D) (EXC AJ7) 2003-2005 01
043 89044779 COVER, D/SEAT BK CUSH (NEUTRAL) CK1, 2 (06) (AE7, X88, 52D) (EXC AJ7) 2003-2005 01
043 89044799 COVER, D/SEAT BK CUSH (PEWTER) CK1, 2 (06) (AE7, AJ7, X88, 92D) 2003-2005 01
043 89044800 COVER, D/SEAT BK CUSH (NEUTRAL) CK1, 2 (06) (AE7, AJ7, X88, 52D) 2003-2005 01
044 88941598 PAD, D/SEAT BK CUSH CK1, 2 (06-36) (AE7) (EXC AJ7) 2003-2006 01
044 88941604 PAD, D/SEAT BK CUSH (USE W/TRIM CODES ENDING IN D) CK1, 2 (06) (AE7, AJ7) 2003-2006 01
045 12473533 WIRE, D/SEAT BK CUSH PAD (UP-LEVEL SUPT) CK1, 2, 3 2003-2006 01
046 88941769 COVER, D/SEAT H/RST (PEWTER) CK1, 2 (06) (AE7, 92V) 2003-2006 01
046 88941774 COVER, D/SEAT H/RST (PEWTER) CK1, 2 (06) (AE7, X88, 92D) 2003-2006 01
046 89044893 COVER, D/SEAT H/RST CK1, 2 (06) (AE7, X88, 52D) 2003-2006 01
047 88940263 PAD, D/SEAT H/RST (NON-PIVOTING) CK1, 2, 3 2004-2006 01
048 12473301 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2, 3 (AE7, A95, 92I) 2003-2006 02
048 12478541 SUPPORT, D/SEAT H/RST (SHALE) (W/O BUTTON) CK1, 2 (522) 2003-2006 02
048 88935568 SUPPORT, D/SEAT H/RST (NEUTRAL) (W/O BUTTON) CK1, 2, 3 (52V, 52C, 52D) 2005-2006 02
048 88941190 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1 (52D) 2005-2005 02
049 88940878 RECLINER, D/SEAT CK1, 2, 3 (AE7, A95) 2003-2006 01
050 12473319 БОЛТ, D/SEAT RECL (TO BACK РАМА) (M12X1.75X37) (HEX) (OUTER) CK1, 2, 3 2003-2006 02
051 89045964 БОЛТ, D/SEAT BK CUSH LAT (M14X76) (W/BUSHING) CK1, 2, 3 2004-2006 01
052 20538173 RETAINER, D/SEAT CUSH (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 10
053 88943141 FRAME, D/SEAT CUSH (MANUAL) CK1, 2, 3 (AE7, A95) 2003-2006 01
054 15831644 MODULE, D/SEAT SI INFL RST (PEWTER) (W/HARNESS) CK1, 2 (06) (92I) 2003-2006 01
055 11514623 БОЛТ, INFL RST CONT MDL (M6X1X20) (8.900) CK1, 2 (06) 2003-2006 04
056 15040025 COVER, F/SEAT ADJR FIN (PEWTER) (DRIVER SIDE) (I/B TRACK) CK1, 2 (06-36) (92I) 2003-2006 01
056 15051616 COVER, F/SEAT ADJR FIN (NEUTRAL) (DRIVER SIDE) (I/B TRACK) CK1, 2 (06-36) (52I) 2003-2006 01
057 15763293 COVER, F/SEAT ADJR FIN (BLACK) (DRIVER SIDE) (I/B TRACK) (FRT) CK1, 2 (06-36) 2003-2006 01
