| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

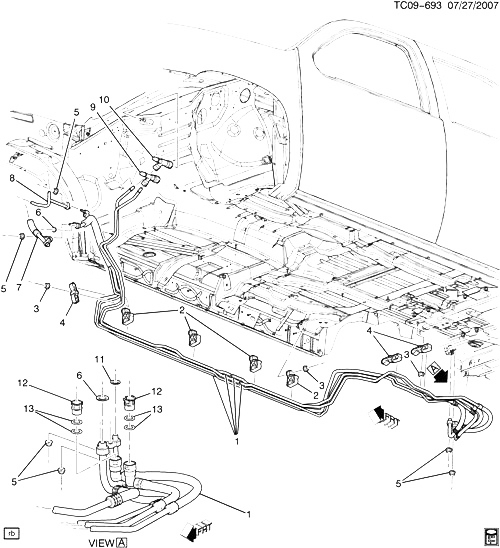

| 001 |
89024927 |
HOSE, AUX A/C EVPR AUX HTR (INCLS 2, 4, 9-13) (ACDelco #15-33480)
| CK157 (06) (CJ2, CJ3, C36, C69) |
2005-2005 |
01 |
|
| 002 |
15102168 |
CLIP, AUX A/C EVPR HOSE (PART OF 1) (2X2 PLASTIC) (SLOT ON SIDE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
CK1, 2 (06) |
2005-2006 |
04 |
| 003 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX A/C EVPR CMPR HOSE CLIP)
|
2005-2006 |
07 |
|
| 004 |
15102169 |
CLIP, AUX A/C EVPR HOSE (PART OF 1) (SLOT IN MIDDLE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
CK1, 2 (06) |
2005-2006 |
03 |
| 005 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596)
|
2005-2006 |
04 |
|
| 006 |
02724966 |
SEAL, A/C CMPR CNDSR HOSE (25MM OD X 17MM ID) (3/4 INCH DIA) (PART OF 1) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) |
CK1, 2, 3 |
2005-2006 |
AR |
| 007 |
15134460 |
HOSE, A/C ACCUM (CODE 5473, 3766, 4460) (СМ. ГРУППУ 09.000 FRONT) (ACDelco #15-32530) |
CK1, 2 (06) (LM7, LQ4, LQ9, LR4, L18, L59, CJ2, CJ3, C69) |
2005-2005 |
01 |
| 008 |
15708750 |
TUBE, A/C EVPR (СМ. ГРУППУ 09.000 FRONT) (ACDelco #15-33179) (W/864MM WIDE CONDENSER, FOR 2ND DES SEE 10387415)
| CK1 (06) (CJ2, CJ3, C69) (1ST DES) |
2005-2005 |
01 |
|
| 008 |
15785057 |
TUBE, A/C EVPR (СМ. ГРУППУ 09.000 FRONT) (ACDelco #15-33421) (W/718MM WIDE CONDENSER, SEE 15708750 FOR 1ST DES)
| CK1 (06) (CJ2, CJ3, C69) (2ND DES) |
2005-2005 |
01 |
|
| 009 |
15055343 |
TEE, AUX HTR INL HOSE (PART OF 1) (NATURAL) (111MM LONG)
| CK1, 2 (06) (C36, C60, C68, C69) |
2005-2006 |
01 |
|
| 010 |
15055342 |
TEE, AUX HTR INL HOSE (PART OF 1) (BLACK) (113MM LONG) |
CK1, 2 (06) (C36, C60, C68, C69) |
2005-2006 |
01 |
| 011 |
52474373 |
SEAL, A/C EVPR TUBE (PART OF 1) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055)
| CK1, 2 (06) (CJ2, CJ3, C36, C69) |
2005-2006 |
01 |
|
| 012 |
19130031 |
RETAINER KIT, AUX HTR INL OTLT HOSE CONN (INCLS 13) (PART OF 1) (INCL RETAINER, SEAL, SPACER, INSTRUCTION) |
CK1, 2, 3 (C36, C69) |
2005-2006 |
01 |
| 013 |
|
SEAL, HTR INL OTLT PIPE (O/RING) (PART OF 1, 12) |
|
2005-2006 |
|
